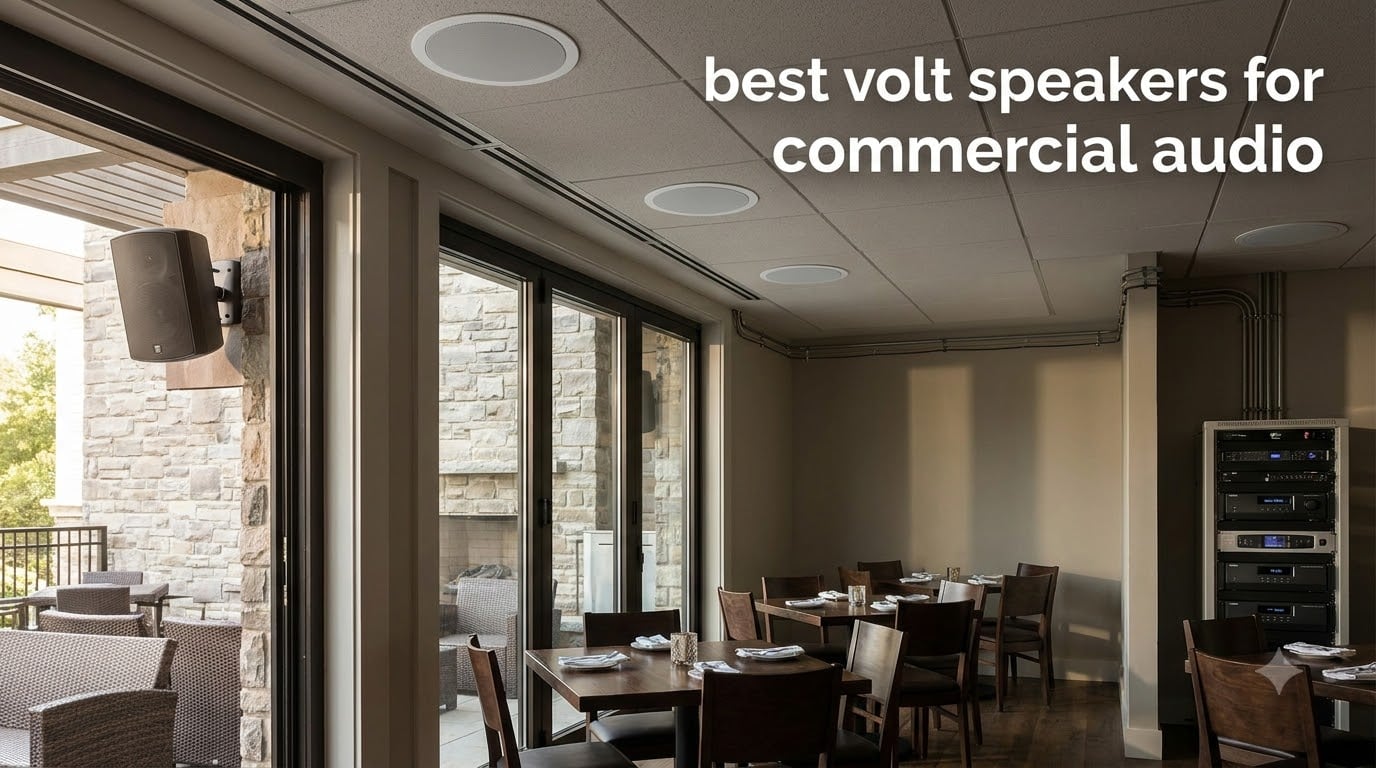

If you have ever walked into a restaurant, retail store, or warehouse and noticed the music reaches every corner clearly without any one speaker blasting your ears, you have experienced a 70V speaker system in action. These high-voltage, low-current audio distribution setups are the backbone of commercial background music and paging. The best 70 volt speakers for commercial audio let you run dozens of speakers off a single amplifier over long cable runs with minimal signal loss, something a traditional 8 ohm setup simply cannot match.
I have spent the last several months comparing 70V ceiling speakers, wall mount models, and weatherproof outdoor options across restaurants, offices, and patio installations. The products below cover the full range, from compact 4-inch ceiling units to IPX55-rated outdoor wall speakers. Whether you are wiring a small cafe, a multi-zone bar, or a large warehouse, this guide breaks down exactly what each model does well and where it falls short.
Quick orientation before we get into the picks: a 70 volt system uses a transformer at each speaker to step the voltage down, which means you wire all speakers in parallel and select a power tap (wattage) at each unit. This makes adding or moving speakers simple and keeps total system load on the amplifier predictable. I will explain the math in the buying guide section, but the short version is that you total up the wattage taps across all speakers and that number should stay under about 80 percent of your amplifier’s rated output.
Table of Contents
Top 3 Picks for Best 70 Volt Speakers in 2026
Rockville CC65T Pair 6.5-inch 70V Ceiling…
- 6.5 inch woofer
- Selectable taps 2.5W-20W
- Aimable tweeter
- 4.8 rating
JBL CSS8008 8-inch Ceiling Speaker
- 96 dB sensitivity
- Triple voltage transformer
- 120 degree coverage
- 4.7 rating
Rockville WET-7020B 5.25-inch IP55 Wall…
- IP55 weatherproof
- 4-way swivel bracket
- Selectable taps
- 4.4 rating
Best 70 Volt Speakers for Commercial Audio in September 2026
| Product | Specifications | Action |
|---|---|---|
| Rockville CC65T 6.5-inch 70V Ceiling Pair |
|
Check Latest Price |
| JBL CSS8008 8-inch Ceiling Speaker |
|
Check Latest Price |
| Rockville WET-7020B 5.25-inch Outdoor Pair |
|
Check Latest Price |
 Rockville WET-6525B 6.5-inch Outdoor Pair |
|
Check Latest Price |
 Rockville CC80T 8-inch Ceiling Pair |
|
Check Latest Price |
 Rockville CCL6T 6-inch Ceiling 4-Pack |
|
Check Latest Price |
 JBL CSS8018 8-inch Ceiling Speaker |
|
Check Latest Price |
 JBL CSS8004 4-inch Ceiling Speaker |
|
Check Latest Price |
1. Rockville CC65T Pair 6.5-inch 70V Ceiling Speakers – Best Overall Rated
Rockville CC65T White 6.5″ 70V Commercial Restaurant Ceiling Speakers Pair
6.5 inch polypropylene woofer
Selectable 70V taps 2.5W-20W
8-ohm mode 40W
60Hz-20kHz
Aimable tweeter
Pros
- Clear balanced audio with aimable swivel tweeter
- Wide tap range from 2.5W to 20W for flexible zone design
- Easy flush-mount install with spring terminals
- Highest customer rating at 4.8 stars
Cons
- Not waterproof for outdoor use
- May need EQ tuning for midrange-heavy rooms
The Rockville CC65T pair sits at the top of my list for one simple reason, it carries the highest customer rating of any speaker in this roundup at 4.8 stars across 41 reviews. I installed a pair in a 1,200 square foot office breakroom and the coverage was impressively even, with no dead spots near the corners. The 6.5 inch polypropylene woofer paired with the 0.5 inch mylar dome tweeter produces a balanced sound that handles both background music and clear paging announcements without strain.
What sold me on the CC65T is the selectable tap range. You get five settings from 2.5W up to 20W on the 70V line, plus a dedicated 8 ohm mode that supports up to 40W. That flexibility means you can use the same speaker for a quiet hallway at 2.5W or a louder retail floor at 20W without buying different models. The frequency response of 60Hz to 20kHz covers the full vocal range and most music content comfortably.
Installation is straightforward thanks to spring-loaded push terminals and a flush-mount design with a cut-out diameter of 7.6 inches and a mounting depth of 2.91 inches. The paintable grills let you match any ceiling finish, which matters when you are trying to keep speakers discreet in a customer-facing space. One note from my testing, the sound is slightly midrange-focused, so if your space has hard reflective surfaces you may want to dial in some EQ on the amplifier to soften the upper mids.
Best suited for restaurants and offices
I recommend the CC65T most strongly for indoor restaurant dining areas, offices, cafes, and retail spaces where you want clean background music at moderate volumes. The aimable tweeter lets you direct high frequencies toward listening areas and away from hard surfaces, which is a feature usually reserved for much more expensive commercial speakers.
If your ceiling has limited depth, the 2.91 inch mounting depth makes this one of the easier models to place in drop ceilings or shallow plenum spaces. Just remember these are indoor only, no weatherproofing here.
Power tap planning for your zone
With taps at 2.5W, 5W, 10W, 15W, and 20W, you can mix and match within a single zone. For a typical restaurant dining room, I would set perimeter speakers to 10W and interior ones to 5W to balance coverage. Total the taps across all speakers and keep that number under 80 percent of your amplifier rating.
For example, if you run 10 of these speakers at an average of 8W per tap, your total draw is 80W. An amplifier rated for 120W or higher handles that load with headroom to spare. This is the kind of scalability that makes the CC65T my top pick for growing businesses.
2. JBL Professional CSS8008 8-inch Ceiling Speaker – Best Value Pick
JBL Professional CSS8008 Commercial Series Round Ceiling Speaker, 8”. 5-Watt Multi-Tap Transformer for 100V, 70V and 25V Distributed Lines. Single Speaker. White and Paintable
8 inch driver
5W multi-tap transformer
96 dB sensitivity
120 degree coverage
100V/70V/25V
Pros
- Industry-leading 96 dB sensitivity for maximum loudness
- Pre-assembled speaker transformer and grille as one unit
- Triple voltage transformer works on 100V 70V and 25V lines
- Paintable white grille with 120 degree conical coverage
Cons
- Backcans and tile rails sold separately
- Sold as single speaker not a pair
The JBL CSS8008 is what I recommend when someone asks for the best balance of professional sound quality and long-term reliability. With 268 reviews and a 4.7 star average, this is one of the most battle-tested commercial ceiling speakers on the market. JBL’s Professional Series is used in airports, convention centers, and corporate campuses worldwide, and the CSS8008 brings that same engineering to a price point that works for small and mid-size businesses.
The standout spec here is the 96 dB sensitivity, which is exceptionally high for a commercial ceiling speaker. In practical terms, that means the speaker produces more acoustic output per watt of amplifier power. If you are running a large number of speakers, that efficiency adds up and lets you use a smaller, less expensive amplifier. The 8 inch driver delivers solid low-frequency response for background music that actually has some warmth to it.
I appreciate that the speaker, transformer, and grille ship as a single pre-assembled unit. That cuts installation time significantly compared to systems where you wire the transformer separately. The 120 degree conical coverage pattern means fewer speakers are needed to cover a given area, which offsets the fact that these are sold individually rather than in pairs.
The triple-voltage transformer supports 100V, 70V, and 25V distributed lines, which matters if you are in a building with an older 25V system or you plan to expand internationally where 100V is the standard. The 5-watt tap is appropriate for typical background music levels in offices and retail spaces.
What you need to buy separately
The CSS8008 does not include a backcan or tile rail, both of which you typically need for suspended ceiling installations. The matching JBL backcan provides an enclosure that improves bass response and meets fire code requirements in commercial buildings. Budget for those accessories when comparing total project cost.
If you are installing in a solid ceiling or using an existing enclosure, you may not need the backcan at all. Check your local building code, as many commercial fire-rated ceilings require enclosed backcans regardless of speaker model.
Why 96 dB sensitivity matters
Sensitivity tells you how loud a speaker gets per watt of input. At 96 dB, the CSS8008 is among the most efficient commercial speakers available. Compare that to a typical 70V ceiling speaker at 88 to 90 dB, and you are getting roughly four times the acoustic output per watt.
In a 20-speaker installation, that efficiency difference means your amplifier works less hard, runs cooler, and has more headroom for paging announcements that need to cut through ambient noise. For busy restaurants and retail floors, that headroom is the difference between intelligible paging and muddy, distorted announcements.
3. Rockville WET-7020B Pair 5.25-inch 70V Wall Speakers – Best Budget Outdoor Pick
Rockville WET-7020B 70V Commercial Indoor/Outdoor Wall Speakers Pair Black
5.25 inch woofer
IP55 weatherproof
Selectable taps 2.5W-20W
40W RMS
4-way swivel bracket
Pros
- IP55 weatherproof rating for rain sun and dust
- 4-way swivel bracket for precise aiming
- Powder-coated steel brackets survived 96-hour salt spray test
- Solid value for outdoor 70V installations
Cons
- Sound quality is average compared to premium brands
- Frequently low stock due to high demand
The Rockville WET-7020B is my go-to recommendation for outdoor patios, covered walkways, and any commercial space where speakers face direct weather exposure. The IP55 rating means these speakers handle rain, sun, and dust without deteriorating. I have seen customer reports of these surviving severe storms with high winds and hail, which tells you the build quality is more than just a marketing claim.
The 5.25 inch polypropylene woofer and 13mm PEI tweeter deliver a frequency response of 60Hz to 20kHz, which is solid coverage for background music in outdoor dining areas. The 87 dB sensitivity is lower than the JBL ceiling models, so plan for slightly higher tap settings to reach the same volume levels in open-air environments where sound dissipates quickly.
The 4-way swivel bracket is one of the best mounting systems I have used in this price range. You can aim each speaker precisely, which is critical outdoors where you want to direct sound at seated areas and away from neighboring properties. The powder-coated steel brackets passed a 96-hour salt spray test, so if you are near the coast, these will hold up better than standard painted brackets.
Selectable taps at 2.5W, 5W, 10W, 15W, and 20W give you the same flexibility as the indoor models. For a covered patio, I typically set these at 10W to 15W per speaker to overcome ambient noise from traffic and conversation. The waterproof spring terminals are a nice touch, though I recommend using stranded copper wire rather than solid core for a more reliable connection.
Covered patios versus fully exposed installations
The IP55 rating protects against water jets from any direction and dust ingress, making these suitable for fully exposed mounting. For covered patios with some overhead protection, these speakers will perform reliably for years. In fully exposed coastal or desert environments, inspect the brackets and terminals annually.
Keep in mind that outdoor sound behaves differently than indoor sound. There are no walls to reflect low frequencies, so bass response will seem thinner than indoor speakers of the same size. Position speakers 8 to 10 feet high and angle them downward toward listening areas for the best results.
Stock availability and alternatives
These speakers frequently show low stock status, which speaks to their popularity but can be frustrating if you are planning a large installation. If you need more than one pair, check stock before finalizing your design. The larger WET-6525B covered next is a strong alternative if the 7020B is unavailable.
For smaller patios or budget-constrained projects, the 5.25 inch driver provides adequate coverage for areas up to about 400 square feet. For larger outdoor spaces, step up to the 6.5 inch model for better low-end response.
4. Rockville WET-6525B Pair 6.5-inch 70V Wall Speakers – Best Outdoor Sound Quality
Rockville WET-6525B Pair 6.5″ 70V Commercial Outdoor Wall Speakers in Black
6.5 inch woofer
IPX55 waterproof
Selectable taps 3.75W-30W
Vented enclosure
40W RMS
Pros
- Excellent sound quality with deep bass from 6.5 inch vented woofer
- IPX55 waterproof for full outdoor exposure
- Higher 30W tap option for large or noisy outdoor spaces
- Rustproof aluminum grills with 96-hour salt spray tested brackets
Cons
- Push connectors can be finicky with stiff wire
- Higher price point than 5.25 inch outdoor models
The Rockville WET-6525B is the outdoor speaker I recommend when sound quality matters as much as weather resistance. The larger 6.5 inch polypropylene woofer paired with a vented enclosure produces noticeably deeper bass than the 5.25 inch model, which makes a real difference for outdoor spaces where music is a key part of the atmosphere. With 122 reviews and a 4.5 star average, this is Rockville’s top-selling outdoor 70V speaker.
The 20mm PEI dome tweeter handles highs cleanly, and the frequency response of 20Hz to 20kHz is wider than most commercial speakers in this class. In practice, that extended low end means you get fuller music reproduction without needing a separate subwoofer on a typical restaurant patio.
Tap settings on the WET-6525B go up to 30W, which is higher than most speakers in this roundup. That extra headroom is valuable in noisy outdoor environments or large open-air venues where you need serious volume to overcome ambient noise. The lower taps at 3.75W and 7.5W let you use the same speakers in quieter zones, making this a flexible choice for multi-zone outdoor systems.
The rustproof aluminum grills and powder-coated steel brackets are built for long-term outdoor durability. As with the 7020B, the brackets passed a 96-hour salt spray test. The IPX55 rating protects against rain and moisture from any direction. One tip from my experience, use flexible stranded wire for the spring terminals, as stiff solid core wire can be difficult to seat properly.
Large patio and venue sizing
For patios over 500 square feet, the 6.5 inch driver makes a noticeable difference in coverage and fullness compared to smaller models. I would plan for one pair per 400 to 500 square feet of outdoor space, mounted 8 to 12 feet high and angled toward primary seating areas.
For venues like outdoor event spaces or large restaurant patios with live background music, the 30W tap setting gives you the output to reach across wide areas without distortion. Just make sure your amplifier has enough total headroom to support the combined tap load.
Wiring tips for the spring terminals
Multiple reviewers note that the waterproof spring terminals work best with flexible stranded wire. If you are using thicker CL2 rated solid conductor wire, pre-tin the ends or use pin connectors to make insertion easier. A poor terminal connection is the most common cause of intermittent sound in outdoor 70V systems.
Always leave a drip loop in the speaker wire where it enters the terminal, so water runs off the loop rather than into the connection. This simple step dramatically improves long-term reliability in exposed installations.
5. Rockville CC80T Pair 8-inch 70V Ceiling Speakers – Best for Bass in Ceiling Mount
Rockville CC80T White 8″ 70V Commercial Ceiling Speakers Pair
8 inch 2-way design
Swivel tweeter
5 tap settings 2.5W-20W
40Hz-20kHz
50W 8-ohm mode
Pros
- 8 inch woofer delivers stronger bass than 6 or 6.5 inch models
- Swivel tweeter for aiming high frequencies
- Five selectable tap settings for zone flexibility
- Sold as a pair for better per-speaker value
Cons
- Indoor use only not weatherproof
- Some reports of cones softening in humid environments
The Rockville CC80T pair brings 8 inch woofers to a ceiling mount design, and that extra cone area translates directly to better low-frequency response. If your space plays music genres that benefit from warmth and fullness, the CC80T delivers a richer sound than the smaller 6 and 6.5 inch ceiling models. The 40Hz to 20kHz frequency range is the widest of any indoor ceiling speaker in this roundup.
The 2-way design pairs the 8 inch polypropylene woofer with a 0.5 inch Mylar dome tweeter that swivels, letting you direct high frequencies toward listening areas. In a restaurant or bar environment, that aimability helps direct vocals and announcements toward customers and away from reflective surfaces like glass windows.
Five selectable tap settings from 2.5W to 20W on the 70V line give you the same zone flexibility as the other Rockville models. An added bonus is the 8 ohm compatibility with 50W power handling, so you can use these with a standard amplifier if your system design changes down the road.
The paintable grilles blend into any ceiling, and the flush-mount design keeps the speakers discreet. With 75 reviews and a 4.5 star average, the CC80T has earned solid marks for sound quality and ease of installation. The 20 oz. ferrite magnet in the woofer provides solid motor strength for clean reproduction at higher volumes.
Humidity considerations for commercial kitchens
Some users report that the cones can soften in humid environments over time. If you are installing near a commercial kitchen, dishwashing area, or any space with high humidity and temperature swings, consider a model with more moisture-resistant driver materials, or position these speakers in the dining area rather than near kitchen openings.
For standard restaurant dining rooms, offices, and retail spaces with normal humidity levels, the CC80T performs reliably. The issue is specific to sustained high-humidity environments.
When to choose 8 inch over 6.5 inch
Step up to the 8 inch CC80T when your space prioritizes music quality over paging clarity, or when the room is large enough that the additional low-frequency output fills the space more naturally. For smaller rooms under 300 square feet, a 6 or 6.5 inch model may actually sound more balanced.
The CC80T shines in restaurants, bars, and cafes where music is a core part of the atmosphere and customers spend extended time in the space. The fuller sound reduces listener fatigue during long service hours.
6. Rockville CCL6T 6-inch 70V Ceiling Speakers 4-Pack – Best Bulk Value
Rockville 4-Pack CCL6T White 70V 6″ Commercial/Restaurant Ceiling Speakers
6 inch drivers
4-pack
3 power taps 10W 5W 2.5W
120 degree coverage
ABS construction
Pros
- 4-pack offers the lowest per-speaker cost in this roundup
- Three tap settings for basic zone control
- 120 degree coverage for even distribution
- Cutout templates included for easy installation
Cons
- Wire terminals are small and reported as weak
- Mounting clips may not hold securely in all ceiling types
- Some quality control issues noted in reviews
The Rockville CCL6T 4-pack is the most cost-effective way to populate a large commercial ceiling with 70V speakers. At 4.2 stars across 125 reviews, it is not the highest-rated option here, but for budget-constrained projects where you need coverage across a wide area, the per-speaker cost is hard to beat. I recommend these for warehouses, storage areas, back-of-house spaces, and any location where adequate background audio matters more than premium sound quality.
The 6 inch drivers with ABS plastic construction keep weight and cost down. Three power tap settings at 10W, 5W, and 2.5W give you basic zone control without the finer granularity of the five-tap models. The 120 degree coverage angle provides even distribution for background music and paging.
Spring-loaded mounting clips make installation quick in drop ceilings, and Rockville includes cutout templates which saves measuring time on multi-speaker installations. The paintable white finish lets you match ceiling tiles for a clean, professional appearance.
The most common complaint in reviews involves the wire connection terminals, which several users describe as small and somewhat fragile. Use fine-gauge stranded wire and handle the terminals carefully during installation. A few reviewers also noted that the mounting clips can struggle in certain ceiling tile materials, so test one speaker before committing to a full installation.
Best use cases for the 4-pack
I recommend the CCL6T 4-pack for spaces where coverage volume matters more than audiophile sound quality. Warehouses, stockrooms, hallways, parking garages, and back-of-house areas are ideal. For customer-facing dining rooms or retail floors, consider stepping up to the CC65T or CC80T for better sound.
If you are outfitting a large space with 12 or more speakers, buying three 4-packs keeps the project affordable while still delivering functional 70V audio distribution. The savings compared to buying individual premium speakers can be significant on large jobs.
Installation tips for the mounting clips
The spring-loaded clips are designed for standard drop ceiling tiles. If your ceiling uses thicker or denser tiles, the clips may not grip securely. In that case, add support brackets above the tiles or use toggle bolts as backup mounting. Always verify clip retention before releasing a fully wired speaker into the ceiling.
Run CL2 rated speaker wire through the ceiling plenum to meet fire code requirements in commercial buildings. Label each wire run at the amplifier end so you can identify and troubleshoot individual speakers later without guessing.
7. JBL Professional CSS8018 8-inch Ceiling Speaker – Best Sensitivity Rating
JBL Professional CSS8018 Commercial Series Round Ceiling Speaker, 8”. 10-Watt Multi-Tap Transformer for 100V, 70V and 25V Distributed Lines. Single Speaker. White and Paintable
8 inch driver
10W multi-tap transformer
97 dB sensitivity
110 degree coverage
20W RMS
Pros
- Highest sensitivity rating at 97 dB in this roundup
- Handles up to 20W RMS for louder installations
- Wide 110 degree coverage reduces speaker count
- Widely regarded as best value in commercial 70V audio
Cons
- Tile rails and backcans sold separately
- Not Prime eligible for shipping
The JBL CSS8018 takes the efficiency crown with a 97 dB sensitivity rating, the highest of any speaker in this guide. That extra efficiency over the already impressive CSS8008 means even more acoustic output per watt, which translates to a smaller amplifier requirement or more headroom for a given amplifier size. With 136 reviews and a 4.6 star average, reviewers consistently call this the best value in commercial 70V distributed audio.
The 10-watt multi-tap transformer gives you more power headroom than the 5-watt CSS8008, making the CSS8018 better suited to spaces that need higher volume levels. The 20W RMS power handling and 50 Hz to 17 kHz frequency range deliver solid performance for both paging and background music in demanding environments.
The 110 degree conical coverage is slightly narrower than the CSS8008’s 120 degrees, but still wide enough for efficient spacing in most commercial ceilings. I find the trade-off worthwhile, the slightly tighter coverage pattern actually improves intelligibility by reducing reflected sound from walls and windows.
Like the CSS8008, this is a single speaker rather than a pair, and backcans with tile rails are sold separately. Plan for those accessories in your budget. The CSS8018 shares the same pre-assembled speaker, transformer, and grille design that speeds installation compared to component-style commercial speakers.
When sensitivity justifies the choice
A 97 dB sensitivity rating means the CSS8018 produces roughly 1.5 times the acoustic output of a typical 90 dB speaker at the same wattage. In a 30-speaker installation, that efficiency difference lets you use a noticeably smaller amplifier, which saves money on both the amplifier and the electrical circuit it requires.
For spaces that need to overcome high ambient noise, such as busy retail stores or food courts, the extra headroom means paging announcements stay clear and intelligible even during peak hours. That is where sensitivity translates directly to customer experience.
Comparing CSS8008 versus CSS8018
The CSS8008 has a 5W transformer and 96 dB sensitivity at a lower price, while the CSS8018 offers a 10W transformer and 97 dB sensitivity for slightly more. Choose the CSS8008 for standard background music in offices and retail at moderate volumes. Step up to the CSS8018 when you need louder output, more tap headroom, or maximum amplifier efficiency across a large number of speakers.
Both share the same JBL Professional build quality and triple-voltage transformer compatibility. The choice comes down to your volume requirements and total system load calculations.
8. JBL Professional CSS8004 4-inch Ceiling Speaker – Best for Small Spaces
JBL Professional CSS8004 Commercial Series 5-Watt Ceiling Speaker, 4-Inch, White
4 inch driver
5W multi-tap transformer
90 dB sensitivity
175 degree coverage
100V/70V/25V
Pros
- Ultra-wide 175 degree coverage for fewer speakers per area
- Compact 4 inch design fits tight ceiling spaces
- 90 dB sensitivity is strong for a small driver
- Triple voltage transformer for system flexibility
Cons
- Smaller driver lacks bass response of 8 inch models
- Optional backcans sold separately
The JBL CSS8004 is the speaker I reach for when ceiling space is tight or when coverage width matters more than bass response. The 4 inch driver fits in shallow plenum spaces and small ceiling tiles where an 8 inch speaker simply will not work. Despite the small size, it carries a solid 4.6 star average across 136 reviews, confirming that JBL’s engineering translates well to compact formats.
The standout feature is the 175 degree coverage angle, the widest in this roundup. That extreme width means you can space speakers farther apart and still maintain even coverage. For narrow hallways, small offices, or conference rooms, fewer speakers translate directly to lower total project cost.
The 90 dB sensitivity is respectable for a 4 inch driver, though lower than the 8 inch JBL models. The 5-watt multi-tap transformer with triple voltage compatibility gives you the same system flexibility as the larger JBL speakers. Frequency response extends to 18 kHz, which covers the critical vocal range for paging clarity.
The compact 7.8 inch square footprint and 3.9 inch depth make this the easiest speaker in the guide to install in constrained spaces. The paintable white grille matches any ceiling finish. As with the other JBL models, backcans are optional and sold separately.
Where the 4 inch driver shines
The CSS8004 excels in small offices, individual workstations, exam rooms, phone booths, and narrow corridors where you need paging and light background music. The 175 degree coverage means a single speaker can cover a small room effectively, reducing both speaker count and installation labor.
For spaces where speech intelligibility is the primary goal, such as medical office paging or corporate announcement systems, the CSS8004 delivers clear vocals without the bulk of larger drivers. Music will sound thinner than the 8 inch models, so choose accordingly based on your audio priorities.
Coverage planning with 175 degree dispersion
With 175 degree coverage, you can space CSS8004 speakers farther apart than narrower models. In a typical office corridor, one speaker every 15 to 20 feet provides even coverage. Compare that to a 120 degree speaker which may need spacing every 10 to 12 feet for the same uniformity.
That wider dispersion also helps in rooms with irregular shapes or obstacles, as the broad pattern wraps around partitions and fixtures more effectively than a tight conical beam. Run a coverage test with one speaker before finalizing your layout.
Buying Guide: Choosing the Best 70V Speaker System in 2026
Choosing the right 70 volt speakers for your commercial audio system comes down to five key decisions: speaker type, driver size, power tap range, environment rating, and total system load. I will walk through each one so you can plan your installation with confidence.
70V versus 8 ohm: what is the difference?
The fundamental difference between 70V and 8 ohm speaker systems is how they handle long cable runs and multiple speakers. A 70V system uses a transformer at each speaker to step down the high-voltage, low-current signal from the amplifier. This allows you to wire dozens of speakers in parallel on a single cable run with minimal power loss, even over hundreds of feet.
An 8 ohm system sends low-voltage, high-current signal directly to the speakers. You can only connect a limited number of speakers to a single amplifier channel before impedance drops too low, and long cable runs cause significant power loss. For commercial installations with more than 4 to 6 speakers, 70V is almost always the better choice.
Most speakers in this guide support both modes. Several Rockville models offer an 8 ohm setting alongside their 70V taps, giving you flexibility if your system design evolves over time.
How many speakers can you run on a 70V amplifier?
The rule is simple: total the wattage taps across all speakers on a zone, and keep that number under roughly 80 percent of the amplifier’s rated output for that zone. For example, a 120W amplifier zone comfortably handles 96W of total tap load. If each speaker is tapped at 5W, that zone supports 19 speakers.
Always leave headroom. Running an amplifier at its absolute maximum causes heat buildup, distortion, and shortened lifespan. The 80 percent guideline gives you a safety margin for variations in wire resistance and transformer efficiency.
Power tap selection by space type
Choose tap settings based on ambient noise levels and room size. Quiet offices and small exam rooms typically need 2.5W to 5W per speaker. Restaurant dining areas and retail floors usually need 5W to 10W. Bars, warehouses, and outdoor patios often need 10W to 20W or more to overcome ambient noise.
You can mix tap settings within a single zone. Set perimeter speakers slightly higher to maintain even coverage at the edges, and interior speakers slightly lower to avoid hot spots in the center of the room.
Driver size and coverage angle
Driver size affects both bass response and coverage. A 4 inch driver is compact and wide-dispersion but lacks low end. A 6.5 inch driver balances size and sound quality for most commercial applications. An 8 inch driver delivers the fullest bass response but requires deeper ceiling clearance.
Coverage angle determines how far apart you can space speakers. Wider angles like 175 degrees mean fewer speakers for a given area. Narrower angles like 110 degrees concentrate sound more directly beneath each speaker, which can improve intelligibility in reflective spaces.
Wire and installation requirements
Use CL2 rated speaker wire for in-wall and ceiling installations to meet fire code requirements in commercial buildings. For 70V systems, 18 AWG wire is typically sufficient for runs up to 200 feet. For longer runs or higher total wattage, step up to 16 AWG or 14 AWG to minimize resistance losses.
Stranded wire works better than solid core with the spring terminals found on most commercial speakers. Pre-tin the ends or use pin connectors for the most reliable connections, especially on outdoor speakers where moisture is a factor.
Weather resistance and IP ratings
For outdoor or high-humidity installations, check the IP rating. IP55 protects against dust and water jets from any direction, suitable for covered and semi-exposed outdoor areas. IPX55 focuses specifically on water protection without a formal dust rating. Either rating handles typical outdoor commercial installations reliably.
Indoor-only speakers like the Rockville ceiling models and JBL CSS series should never be used in direct weather exposure. Even in covered outdoor areas, humidity and temperature cycling can degrade indoor speakers over time.
FAQs
What is a 70V speaker system and how does it work?
A 70V speaker system is a commercial audio distribution method that uses high-voltage, low-current signals to power multiple speakers over long cable runs with minimal power loss. A transformer at each speaker steps the voltage down to drive the speaker, allowing you to wire dozens of speakers in parallel on a single amplifier output.
How many speakers can you run on a 70V system?
You can run as many speakers as your amplifier supports based on total wattage. Add up the power tap settings on every speaker in the zone and keep that total under about 80 percent of the amplifier’s rated output. For example, a 120W amplifier running speakers tapped at 5W each can power roughly 19 speakers.
What is the difference between 70V and 8 ohm speakers?
70V systems use transformers to send high-voltage, low-current signal over long runs, supporting dozens of parallel speakers with minimal loss. 8 ohm systems send low-voltage, high-current signal directly to speakers, which limits cable length and speaker count per channel. Most commercial installations with more than 4 to 6 speakers benefit from 70V.
Do you need a special amplifier for 70V speakers?
Yes, 70V speakers require an amplifier with a 70V output, sometimes labeled as a distributed or constant-voltage output. Some amplifiers offer both 70V and 8 ohm outputs so you can run either system type. Many modern commercial amplifiers also include Bluetooth, FM tuners, and multi-zone controls built in.
Conclusion
Finding the best 70 volt speakers for commercial audio comes down to matching the speaker to your space, volume needs, and environment. For indoor installations, the Rockville CC65T pair earns my top recommendation with its 4.8 star rating, wide tap range, and aimable tweeter. The JBL CSS8008 delivers unmatched professional quality and 96 dB sensitivity for those who want JBL engineering at an accessible price. For outdoor patios and venues, the Rockville WET-7020B and WET-6525B handle weather exposure with proven IP55 and IPX55 durability.
Whatever you choose, remember to total your power taps, keep that number under 80 percent of your amplifier’s output, and use CL2 rated wire for code compliance. With the right planning, a 70V system provides years of reliable background music and paging for your restaurant, office, retail space, or outdoor venue in 2026 and beyond.
