A router table is the flat work surface with a hole, a fence and a throat plate that lets you use a handheld router like a stationary machine. A router lift is the separate mechanism that clamps the router motor inside that table so you can raise and lower it from above the tabletop, adjusting bit height and changing bits without crawling underneath. Getting that distinction right is the first step to buying the right hardware.
We spent the past few months reading through thousands of owner reviews, comparing published specifications and cross-checking every plate size, motor diameter and screw pitch we could verify for the best router lifts for router tables in 2026. What follows is a table-first list of ten lifts, ranked, with the compatibility details that most roundups skip.
The honest headline: compatibility decides more than price. A lift that fits your table opening exactly, accepts your router body diameter and holds its setting under load beats a more famous brand that needs a workaround. We flag plate dimensions, motor ranges and the mounting gotchas for every pick below, and we include a measurement checklist in the buyer’s guide so you can check your table before spending anything.
Two notes on what we did and did not do. First, we do not run a store; every recommendation is based on published specifications and what owners report in reviews. Second, prices in this category move constantly, so use the buttons below to check current pricing rather than trusting a number you remember. We have deliberately not listed price figures here for that reason.
If you are still deciding whether a router table is worth it at all, jump to the motorized TV lift comparison first, then come back. Same buying logic, different hardware.
Table of Contents
What a Router Lift Actually Does and What It Does Not?
A router lift clamps your router motor in a cradle and couples it to a lead screw driven by a crank handle on the top plate. Turning the handle raises or lowers the motor in small, repeatable increments, and enough vertical travel brings the collet above the tabletop so you can swap bits with two wrenches instead of pulling the router out of the table.
What it does not do is raise the table. It does not square your router to the fence for you, and it does not stop a plate that is out of level from cutting out of level. A lift is a motor mount with precision adjustment, nothing more and nothing less.
The payoff is setup speed and repeatability. Without a lift, every height change means reaching under the table with a wrench in a cramped space, and every bit change means unbolting the base. Fine Woodworking reported that above-table adjustment roughly halved setup time in their testing, and it is the reason most furniture makers add one within a year of buying a table.
There is one counterintuitive result worth repeating: in that same test, the height locks on the top-tier lifts made no measurable difference to play or deflection. A good preloaded lead screw does most of the work, and a lock is insurance against vibration rather than a precision feature.
Top 3 Best Router Lifts for Router Tables in 2026
The three lifts below are the ones we would put in a working shop first. The Kreg wins on review volume and broad router compatibility, the JessEm wins on measured mechanical quality, and the O’SKOOL wins on price-to-spec.
Kreg PRS5000
- Adjustment to 1/64 inch
- Hard-anodized 3/8 inch plate
- Fits 20+ routers
- Anti-backlash mechanism
JessEm Mast-R-Lift II
- Zero-backlash lead screw
- Cam locking system
- 13.6 lb aluminum build
- Adjustable clamp blocks
O’SKOOL RTS05
- 20 TPI screw at 0.05 inch per turn
- Zeroing index ring for 0.001 inch
- Five insert rings included
- 11-3/4 x 9-1/4 plate
Quick Overview of All 10 Router Lifts (October 2026)
Every lift below is listed with the plate size and motor range that determine whether it will physically fit your table. Compare those two columns before anything else.
| Product | Specifications | Action |
|---|---|---|
| Kreg PRS5000 Precision Router Lift |
|
Check Latest Price |
| JessEm Mast-R-Lift II |
|
Check Latest Price |
| O’SKOOL RTS05 Lift System |
|
Check Latest Price |
 O’SKOOL RTS017 Lift System |
|
Check Latest Price |
 Incra Mast-R-Lift-II-R |
|
Check Latest Price |
 SpeTool SP-RP-L Lift System |
|
Check Latest Price |
 SawStop RT-LFT Four-Post Lift |
|
Check Latest Price |
 JessEm Rout-R-Lift 3.5XT |
|
Check Latest Price |
 Rockler Router Lift Kit |
|
Check Latest Price |
 O’SKOOL RTS013 Lift System |
|
Check Latest Price |

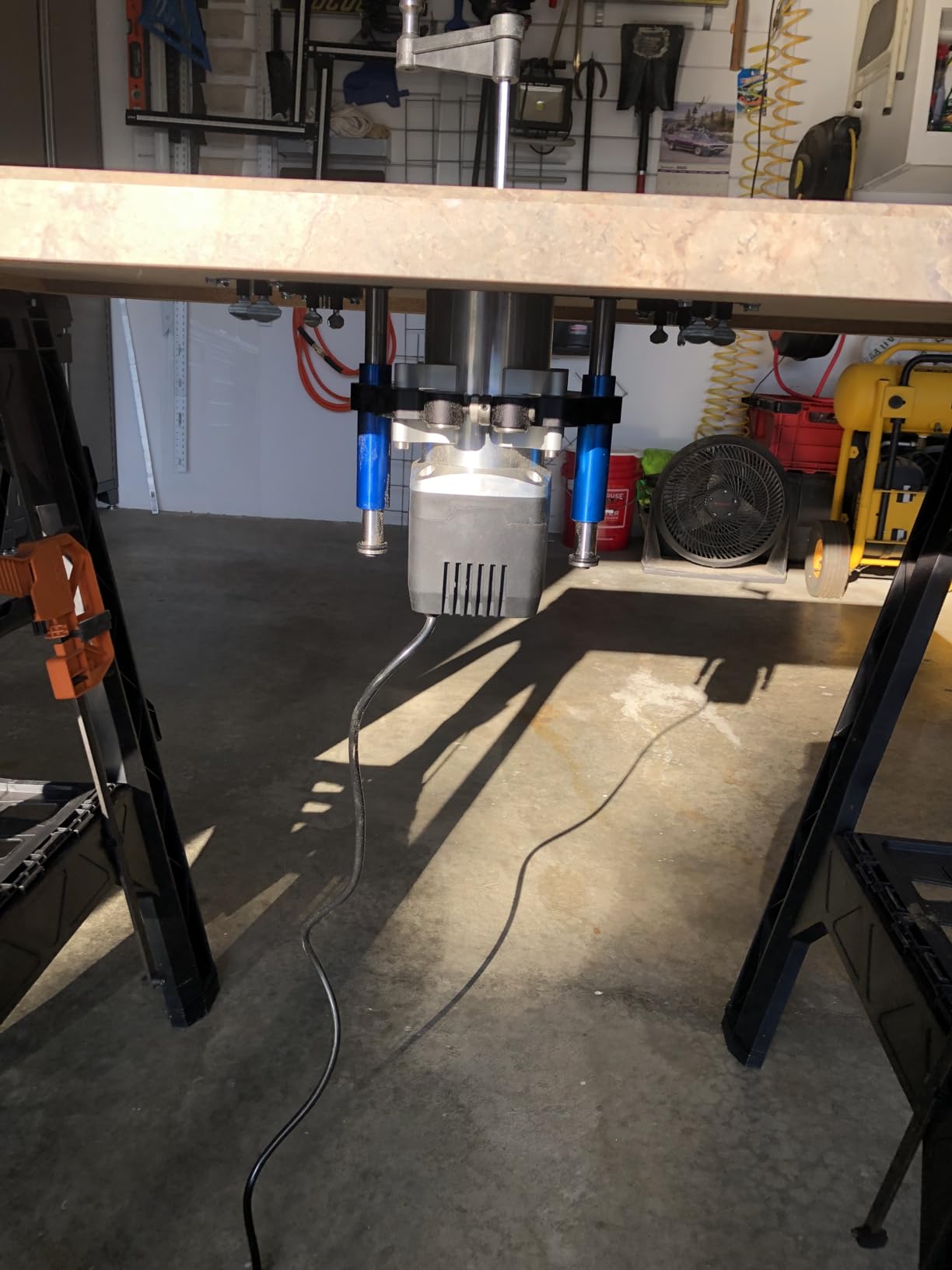

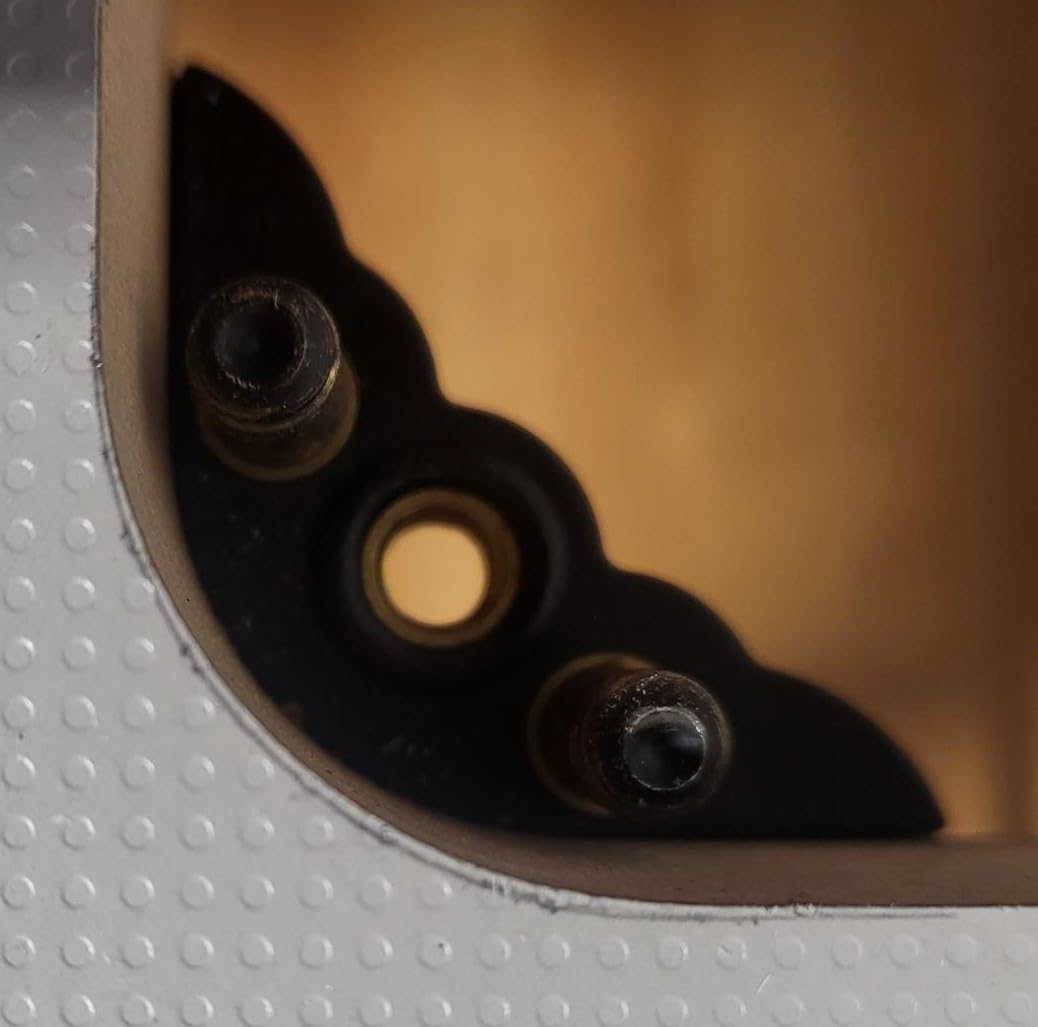

1. Kreg PRS5000 Precision Router Lift – the best all-round router lift
Kreg Precision Router Lift, Router Table Lift, PRS5000
Plate: 3/8 inch x 9-1/4 x 11-3/4 hard anodized aluminum
Adjustment: down to 1/64 inch above the table
Weight: 10.8 pounds
Fits all Kreg router tables
Pros
- Largest reviewed base of any lift here at 811 reviews
- Adjustment to 1/64 inch above the tabletop
- Hard-anodized plate resists sag and scratches
- Anti-backlash compensation on the depth screw
Cons
- Thumbwheel adjustment is slower than a crank handle
- Built around Kreg table mounting standards
The Kreg PRS5000 is the lift we recommend to most people, and the reason is simple: it has by far the deepest owner-review base in this group at 811 reviews, and the complaints inside that base are narrow. Very few owners report a failed lead screw, a sagging plate or an adjustment that will not hold. Cabinet and door makers report heavy daily use without complaints, and the plate material is a hard-anodized 3/8 inch aluminum measuring 9-1/4 by 11-3/4 inches, which is the most common router table opening size in North America.
It fits all Kreg router tables and many competing brands, and Kreg claims compatibility with more than 20 routers. In practice the widest fit comes from the adjustable clamping blocks, which take router bodies across a generous diameter range rather than one motor size. That breadth is the practical reason this lift ends up in so many shops.
Adjustment resolution is quoted at 1/64 inch for above-the-table setup changes, with anti-backlash compensation on the depth screw. Compared with the 0.001 inch fine adjustments on the Incra and SpeTool, that number sounds coarse, and on paper it is. In the shop the 1/64 inch figure describes the practical setup increment rather than the absolute backlash, and the compensation mechanism is what keeps repeated returns to the same setting consistent.
Two things to know before you commit. The adjustment mechanism is a thumbwheel style rather than a crank handle, and owners consistently call it slower and less refined than a crank when making fine changes, particularly when you are dialing in a bearing fit on a drawer. And the mounting layout is designed around Kreg standards, so if your table is not a Kreg, check the corner screw pattern against your frame before ordering.
Is the Kreg PRS5000 precise enough for furniture work?
For most joinery, yes. The anti-backlash screw holds a repeatable setting, and repeatability is what actually matters when you cut a row of dados or a set of dados for a cabinet. The 1/64 inch increment means you set close, then finish by dialing the router in the fence or on a test cut, which is normal practice on any router table.
If your work is dominated by inlay, freehand decorative routing or very tight flush-trim tolerances, a lift with a finer indexed dial and a crank handle will get you there faster. For cabinetry, doors, boxes and general joinery, the PRS5000 does the job without drama.
When should you skip the PRS5000?
Skip it if your table opening is not 9-1/4 by 11-3/4 inches, because that plate size is the deciding factor for most buyers. Also skip it if you change depth constantly during a single setup, because the thumbwheel is the part of this lift that owners mention most often as improvable.
And if your router body is unusually small, check the clamp range first. The PRS5000 is built for full-size fixed base routers rather than palm-size trim routers, so a compact motor may need an adapter collar you do not yet own.

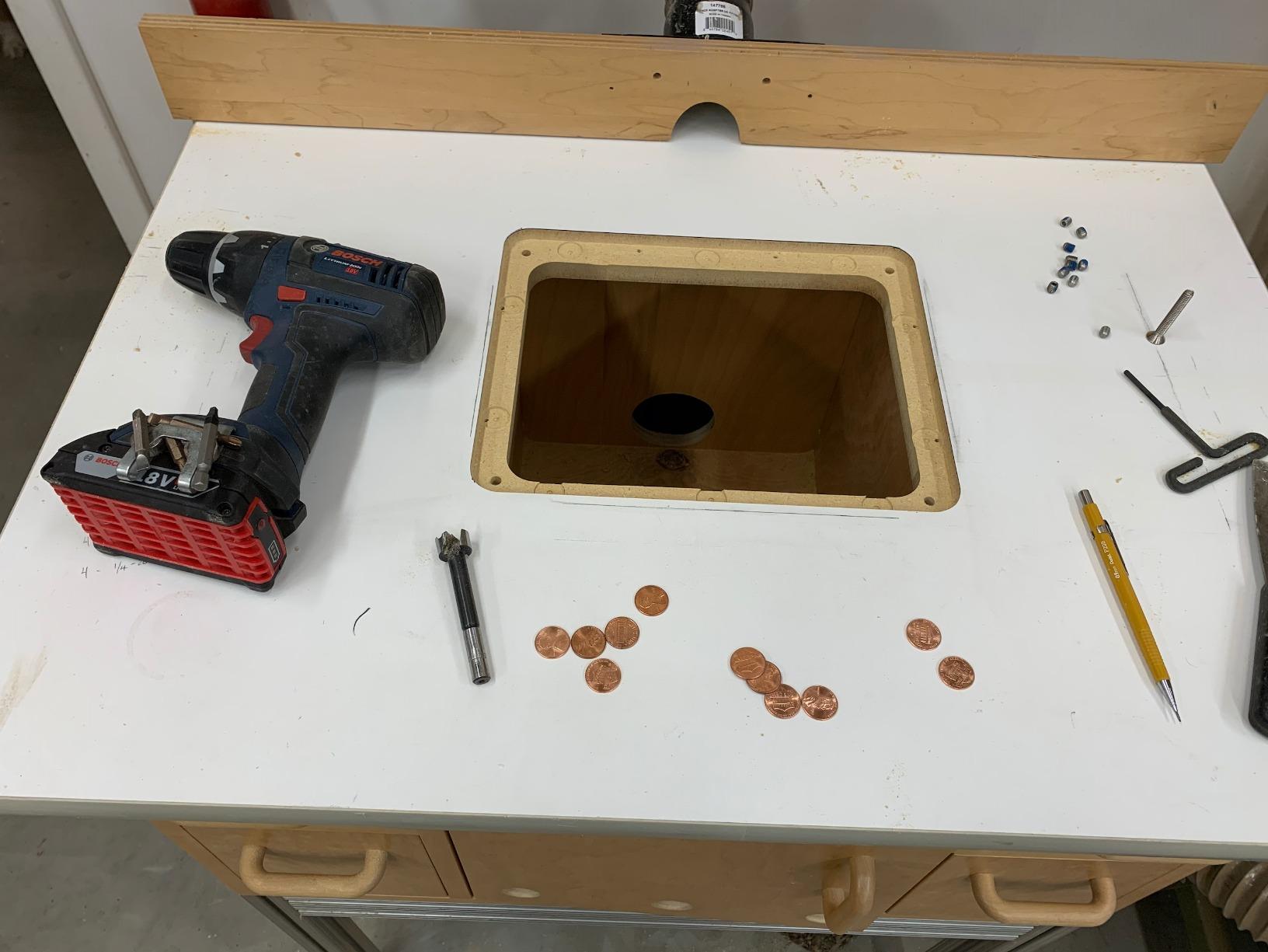

2. JessEm Mast-R-Lift II – the zero-backlash benchmark
JessEm Master Lift II 02120 Router Lift, 9-1/4-Inch by 11-3/4-Inch, Black/Red
Plate: 3/8 inch hard anodized solid aluminum
Three cam locks plus 8 set screws
Weight: 13.6 pounds
11.2W x 12H inches
Pros
- Preloaded lead screw with virtually zero backlash
- Cam lock holds setting through repeated cuts
- Adjustable clamping blocks accept many motor diameters
- Solid aluminum plate resists sag under heavy motors
Cons
- Corner screw pattern does not match Kreg table brackets
- Instructions are thin on setup detail
- Premium tier pricing
The JessEm Mast-R-Lift II is the mechanical benchmark in this group, and it is the lift forum regulars point to when someone asks whether precision still costs money. The mechanism is a preloaded lead screw with double-sealed bearing construction, driven by a crank handle, with an exclusive three-cam locking system backed by eight set screws to hold the motor body rigid. The plate is machined from 3/8 inch solid aluminum and hard anodized, and the whole unit weighs 13.6 pounds.
Long-term owners report the lock holding a setting exactly through repeated joinery cuts, and several describe years of trouble-free service. One woodworking forum thread about this lift tier put it plainly: expensive, but quality, and they work. Another owner described the spindle as solid as a rock during routing, with no play observed at all, which matches what you would expect from a preloaded screw with sealed bearings.
JessEm machines the lift in Canada, which is worth noting because most of the component list for the category is machined there. The plate is the piece that matters long term: a solid aluminum plate resists the sag that phenolic plates develop, and sag is what turns a precise lift into an inconsistent one after a few years of heavy work.
The most repeated gripe in the reviews is mechanical rather than electronic: the corner mounting screw pattern does not align with Kreg table brackets. If your table is a Kreg, this is a genuine fitment issue and you should factor in rework or adapter hardware. Owners running Incra, JessEm and Rockler tables report the pattern working as intended, and adjustable clamping blocks widen the motor diameter range considerably compared with a single-size carriage.
Who should pay more for the Mast-R-Lift II?
Buy it if you route for a living or route all day. Cabinet shops, sign makers and anyone cutting flush trim or inlay benefit from the cam lock and the rigid aluminum plate, because both keep the motor from shifting when the cut load changes. The difference is small on a single afternoon of work and obvious across a production week.
The lift is also the safest long-term choice if you tend to keep routers for a long time, since adjustable clamp blocks mean a new motor body is unlikely to force a new lift purchase.
Is the premium tier worth it over a mid-range lift?
It is worth it for rigidity, not for the adjustment numbers. Compare it to the O’SKOOL RTS05 further down and you will find both resolve to fine adjustment in practice; what the JessEm adds is a cam lock that does not depend on screw friction and a plate that will not sag. Below the premium tier you are trading stiffness and durability, not function.
If your budget stops well short of this tier, the difference is a tradeoff you can absorb. Many furniture makers do perfectly good work on a mid-range lift with a properly leveled plate.

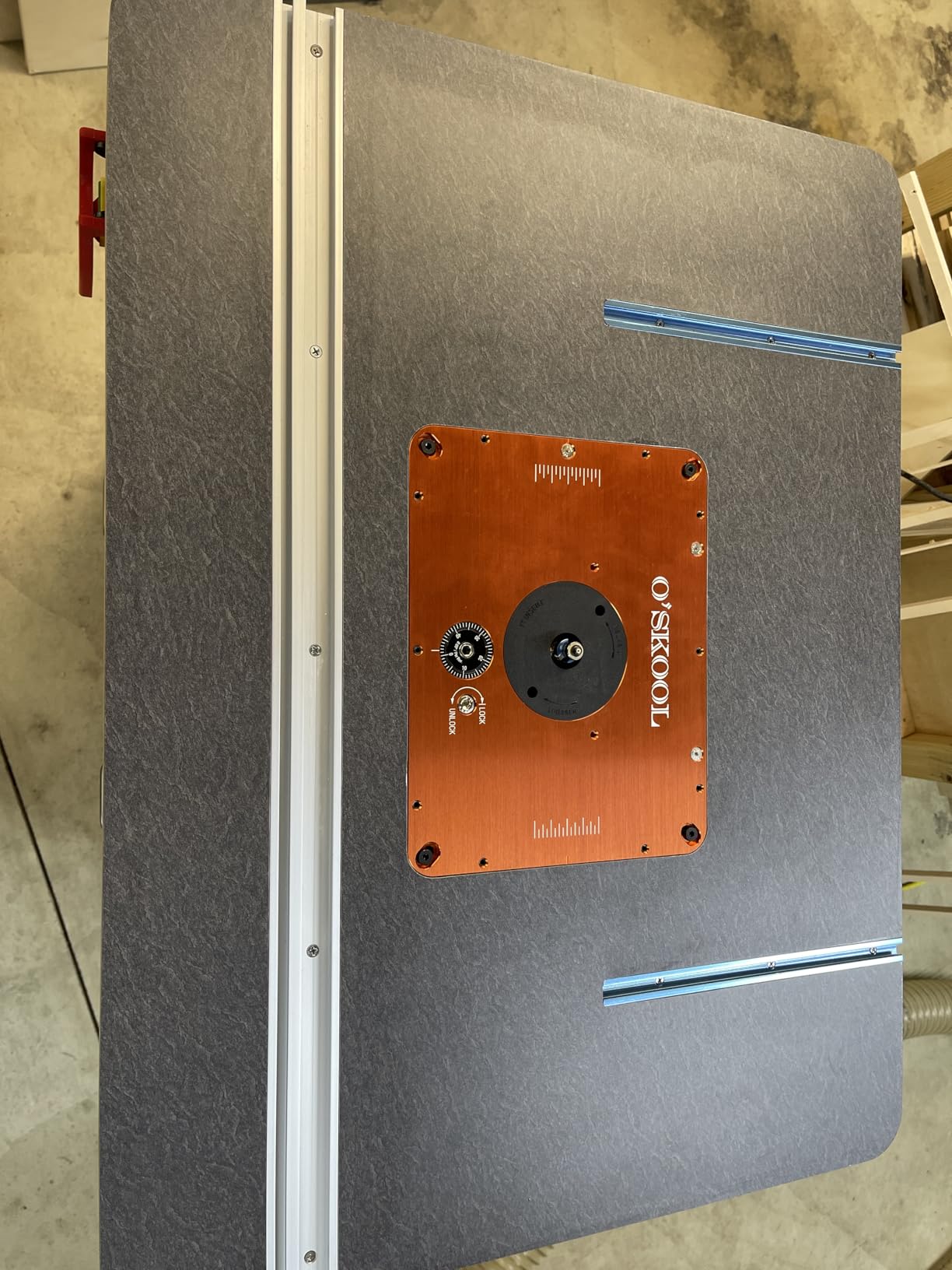

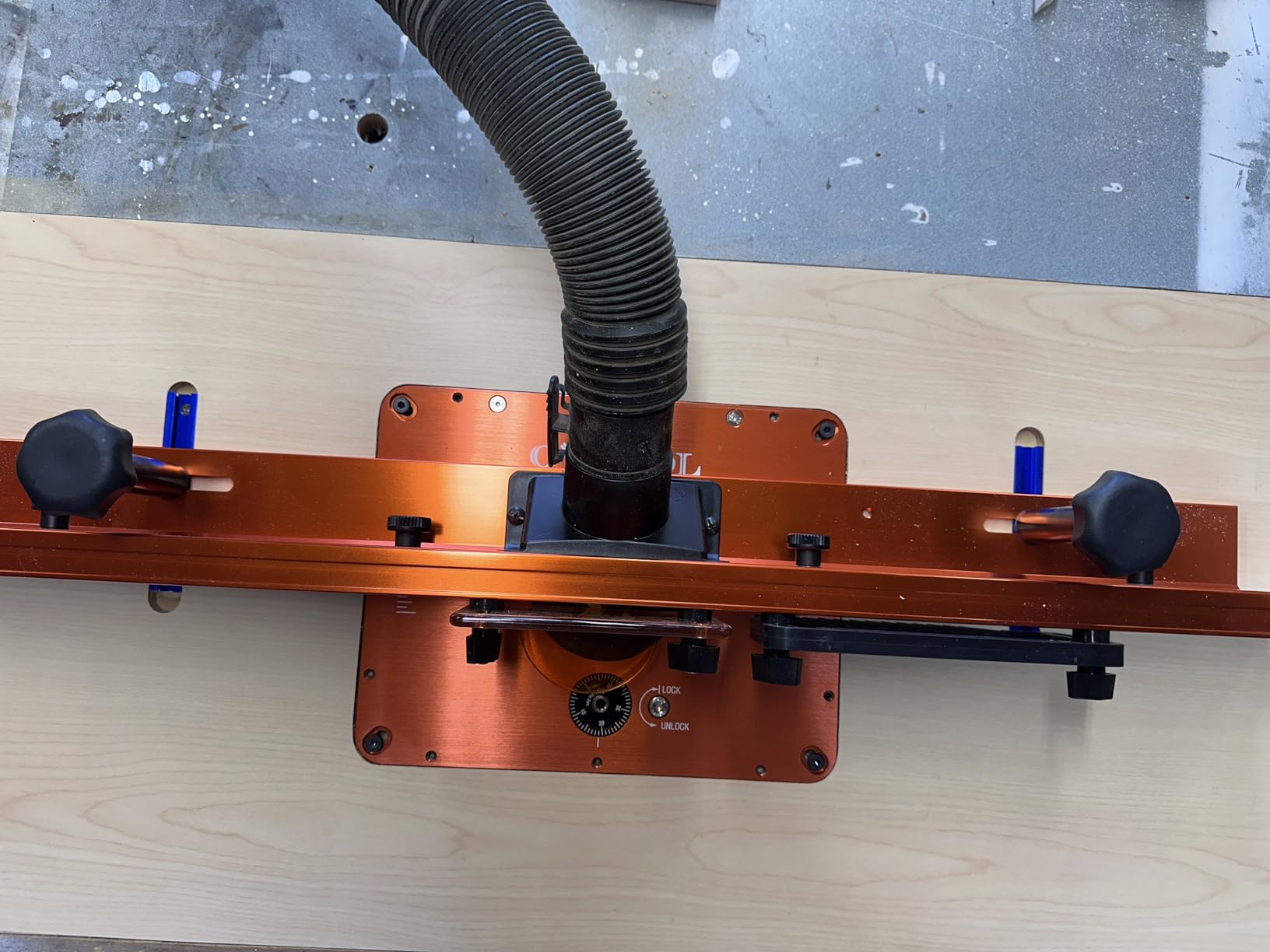

3. O’SKOOL RTS05 – the best value router lift
O’SKOOL Router Lift System, 3-1/2″ Router Motor Fit, Aluminum Plate, RTS05
Plate: 11-3/4 x 9-1/4 x 3/8 inch aluminum
20 TPI screw at 0.05 inch per turn
Index ring for 0.001 inch steps
1 year warranty
Pros
- Solid aluminum plate at a mid-range price
- Zeroing index ring gives repeatable 0.001 inch settings
- Five insert rings cover most bit and bushing setups
- Long crank shaft clears typical fences
Cons
- Fits 3-1/2 inch motors only
- Mounting screws are not included
- Small set screws can loosen into sawdust
The O’SKOOL RTS05 is the pick if you want a solid aluminum lift with a real adjustment system without paying the premium tier. The specification sheet reads like a much more expensive machine: a 20 TPI height screw moving 0.05 inch per full turn, a zeroing index ring with a 50-angle scale for 0.001 inch steps, and a height screw locking device that resists vibration drift during a cut.
Owners compare it favorably to premium lifts on price-to-quality, and the two things they mention most are crisp indexing and genuinely easy above-table bit changes. The plate is 11-3/4 by 9-1/4 by 3/8 inch aluminum with a 3/4 inch corner radius, and three-point adjustment using cam wheels and leveling screws lets you dial the plate flush to the table surface. That flushness matters more than most spec sheets admit.
The included five insert rings at 3/8 inch, 1 inch, 1-1/4 inch, 1-7/8 inch and 2-5/8 inch cover the bit and bushing diameters most trim work uses, and the box also includes a crank handle, start pin, ring wrench and hex wrenches. A one-year warranty with setup support is included, which matters for a first-time router table owner who will have questions during the first week.
The limitation that decides this lift for you is motor fit. It clamps 3-1/2 inch cylindrical motors, which covers the Porter Cable 690 and 890, DeWalt 610, 616 and 618, Bosch 1617 and 1618, and various Craftsman and Skil models. There is no wider carriage, so a larger body needs a different lift. Owners also note that mounting screws are not in the box and that the small hardware set screws can loosen and drop into sawdust.
Is the RTS05 precise enough to dial in a joint?
Yes. The 0.001 inch index step is the same resolution the premium lifts advertise, and the height lock holds the setting under vibration. If you cut dados, rabbets or dovetails and want to dial a fit by hand, you have the range you need here.
The catch is ergonomics rather than numbers. You are turning a crank and reading a scale, so the total adjustment takes longer than a lift with a faster quick-raise gear. If you change depth constantly, that adds up over a session.
Who is this lift not for?
It is not for 4.2 inch motor bodies such as the Triton or Woodpeckers units, and it is not for anyone building a lift into a table with a non-standard opening. The plate is the standard 11-3/4 by 9-1/4 inch size, so the opening is not a problem, but the motor clamp is.
It is also worth skipping if you have never installed a lift before and want maximum hand-holding. Budget for a missing fastener or two in the box, and plan an afternoon for setup.

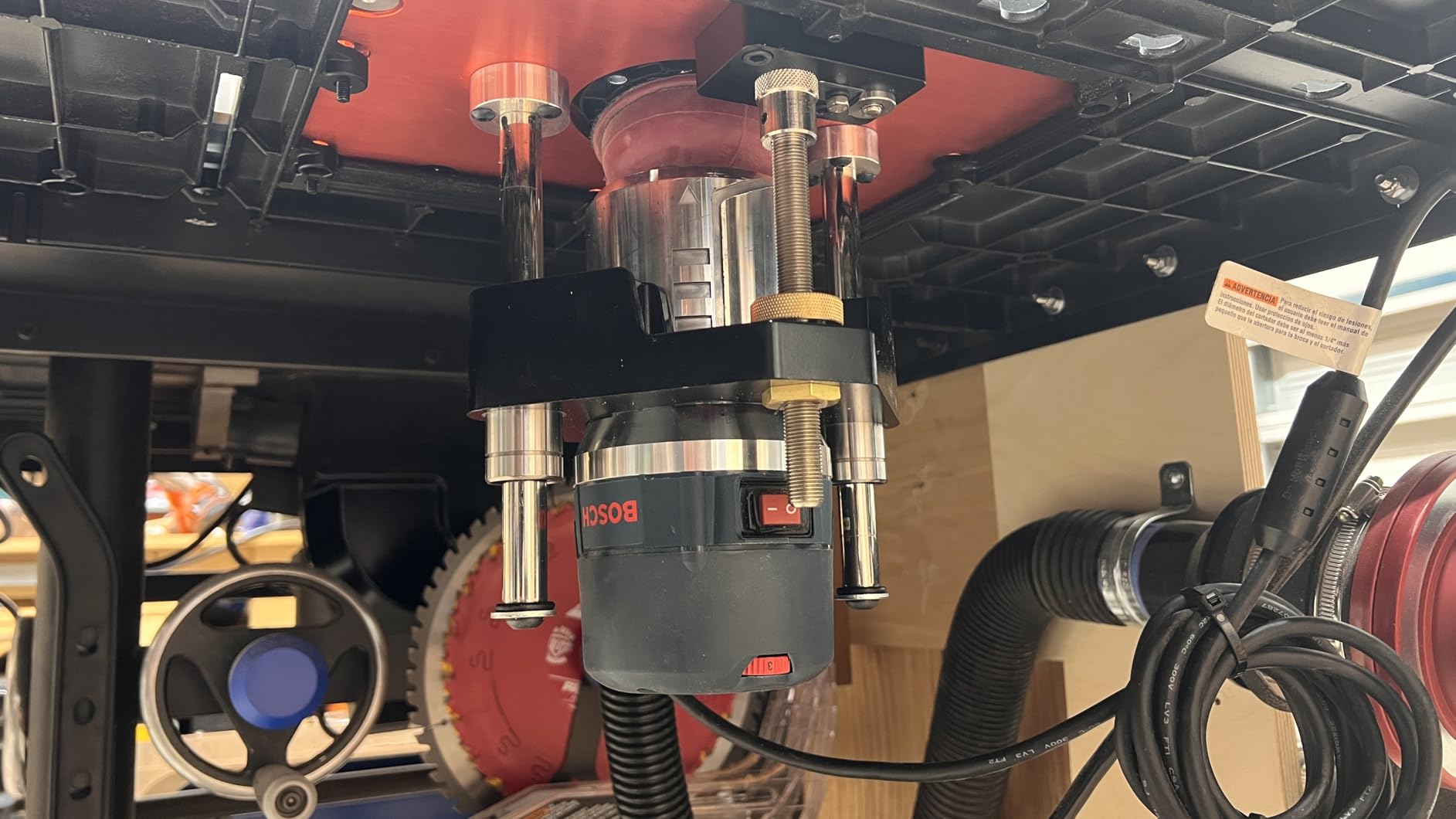

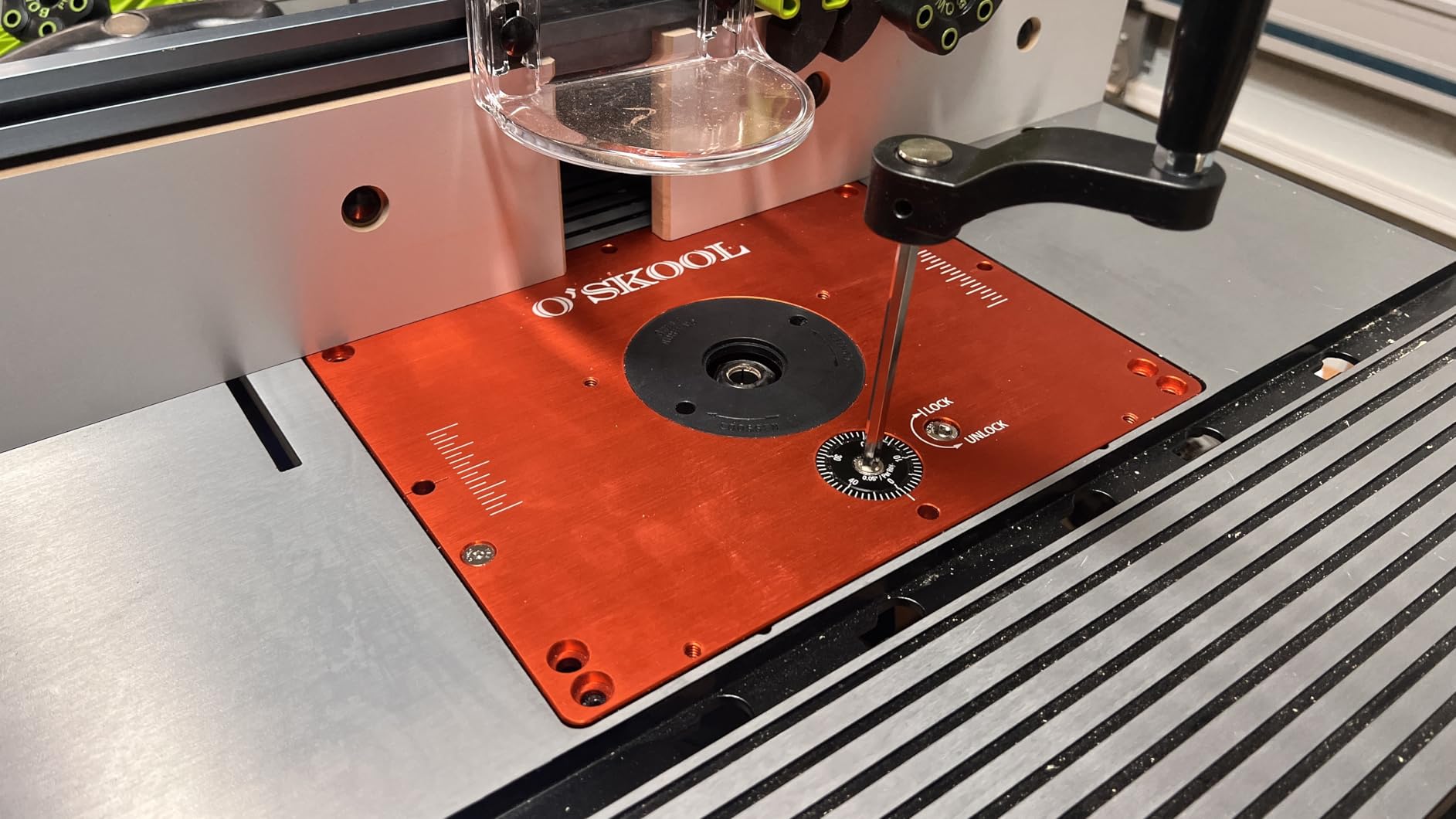

4. O’SKOOL RTS017 – the pick for Bosch RA tables
O’SKOOL Router Lift System Compatible With Bosch RA1181 and RA1171
Plate: 11-1/2 x 9-1/8 x 3/8 inch CNC aluminum
20 TPI screw with 3 inch travel
0.001 inch index adjustment
Fits Bosch RA1181 and RA1171 tables
Pros
- Highest average rating in the group at 4.8 stars
- CNC-machined plate stays flat and level
- Cam wheel edge locking removes opening gaps
- 3 inch travel clears the tabletop for bit changes
Cons
- Leveling screws must be sourced separately
- Plate size is not the common standard
- Will not fit an O'SKOOL router table top
The O’SKOOL RTS017 exists for a specific situation: you own a Bosch RA1181 or RA1171 table and you want above-table adjustment. That is the whole pitch, and for those owners it is a clean fit. The carriage is 3.5 inch diameter for 3-1/2 inch motors, the plate is CNC machined from 3/8 inch solid aluminum, and three locking cam wheels pull the plate tight against the edges of the table opening to remove gaps that would otherwise show in a cut.
At 4.8 stars across 107 reviews, this is the highest average rating of any lift we looked at. Reviewers single out the flatness of the machined plate and the fine 0.001 inch adjustments from the zeroing index ring, and the three-inch height range on the 20 TPI screw is enough to bring the collet up for above-table bit changes.
The five included insert rings at 3/8 inch, 1 inch, 1-1/4 inch, 1-7/8 inch and 2-5/8 inch match the set on the RTS05, and a one-year warranty with setup support comes with it. If you are on a metric measuring system, note the listing is quoted in metric, which is a small signal that this version was developed with non-US tables in mind.
Two caveats matter. Leveling screws are not included, and that is the single most common complaint in the reviews, so budget a few extra parts before installation. The plate measures 11-1/2 by 9-1/8 inches, which is narrower than the common standard, so this is not a drop-in for a generic 9-1/4 by 11-3/4 inch opening. It also will not fit an O’SKOOL router table top, despite sharing the brand name.
Should a Bosch RA table owner buy anything else?
Probably not, and this is the rare case where a brand-specific lift is the right call rather than a compromise. The plate size and the carriage diameter are matched to that table family, and the cam wheel locking is a genuine advantage on a table with a fixed opening.
If your Bosch table is a different model number, stop and check the plate dimensions before buying. These lifts are not interchangeable across the Bosch range.
What if you are not sure about your table?
Measure the opening length and width and measure your router body diameter before ordering. If your opening is 9-1/4 by 11-3/4 inches rather than 11-1/2 by 9-1/8 inches, the RTS05 is the better-matched lift from the same family, and the SpeTool further down fits an even wider range of motor bodies.
That five-minute measurement is the difference between a lift you install in an afternoon and one that sits on a shelf.

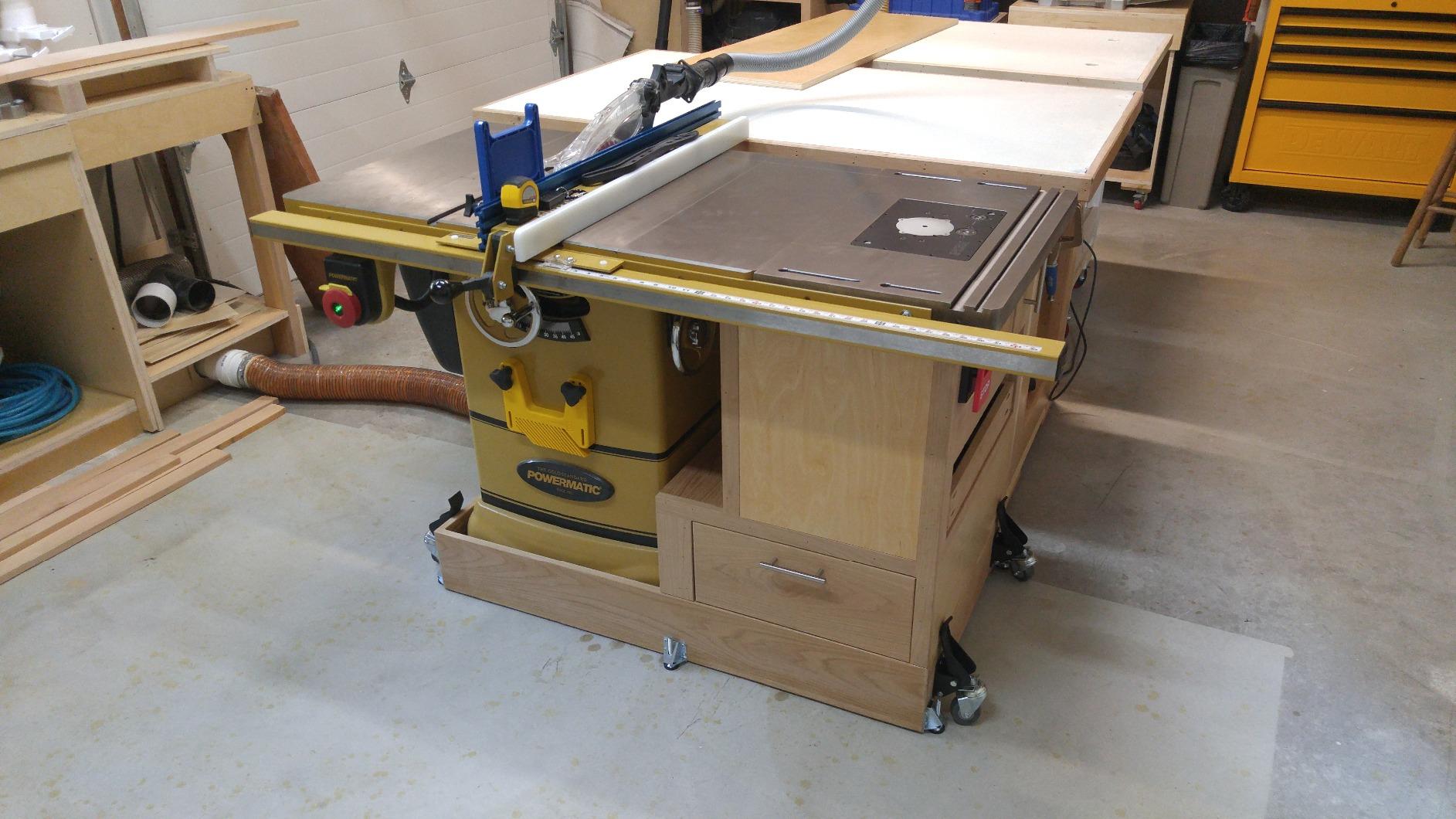

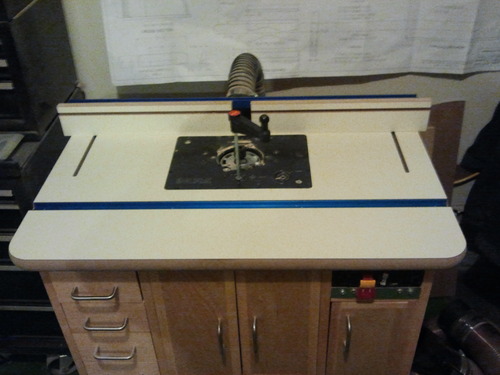

5. Incra Mast-R-Lift-II-R – the pick for Rockler and Bench Dog tables
Incra Mast-R-Lift-II-R Designed for Rockler Tables
Plate: 11.75W x 0.38H inches aluminum
16 TPI direct drive lift screw
0.001 inch above-table adjustment
Weight: 15.2 pounds
Pros
- Rock-solid lock that shows no creep during a cut
- MagnaLOCK rings snap into place with no fuss
- Low-friction ball bearing action
- Fast setup with an easy zeroing dial
Cons
- Built for Rockler and Bench Dog table openings
- Very strong magnet makes the cover plate awkward to pry
- No rapid lift and the height gauge cannot be zeroed
- Premium tier pricing
The Incra Mast-R-Lift-II-R is the lift to buy if your router table came from Rockler or Bench Dog. It is manufactured by JessEm to Incra specifications, which tells you something useful about the build quality, and it is engineered around those two table openings rather than a generic size. The defining feature is the MagnaLOCK reducing ring system: five steel rings at 3/8 inch, 1 inch, 1-5/8 inch, 2-5/8 inch and 3-5/8 inch that snap in and out instantly instead of requiring a wrench.
Precision comes from the 16 TPI direct drive lift screw and 0.001 inch height adjustments made from above the table, with a ball bearing mechanism for low-friction action. Reviewers describe the lock as rock solid with no creep observed during a cut, which is exactly the failure mode reported by some lift owners whose mechanisms drift under load.
The MagnaLOCK rings are a genuine quality-of-life upgrade. Changing from a 1 inch bit to a flush-trim bearing takes seconds with no tools, and the steel rings hold their dimension better than plastic reducing rings over time. Forum users running Incra-branded equipment consistently describe the fit as perfect within that ecosystem.
There are trade-offs. The magnet in the ring system is strong enough that prying the cover plate off is awkward, which is a small annoyance that shows up every time you change a bushing. There is also no rapid lift on this model, so bringing the bit above the table for a change takes more cranking than a two-speed system, and the height gauge cannot be zeroed the way the O’SKOOL index ring can. For a brand-matched table, none of that outweighs the fit; for anything else, the plate size is the deciding factor.
Is the Incra-branded lift worth the premium over a generic lift?
Within a Rockler or Bench Dog table, yes, mainly because the plate and hole pattern are engineered for that opening. You are buying a guaranteed fit and a ring system that works with the rest of the Incra setup, not just a mechanism with a similar screw.
Outside those two table brands, the answer is usually no. Several owners on woodworking forums specifically recommend the Incra-branded lift to people who own the matching table and warn others to check dimensions first, because this is not a universal plate size.
What about lift creep during a cut?
That is the complaint we hear most often from owners of other lifts, and it is a mechanical symptom worth understanding. Creep usually means the height lock is not fully engaged, the motor mount has loosened, or the plate has become out of level, so the cutting load shifts the motor. Owners of this lift specifically report the opposite experience, which is why it is our pick for heavy joinery work.
If you do have creep on any lift, tighten the motor set screws, confirm the lock is fully seated, and re-check plate levelness before replacing anything.

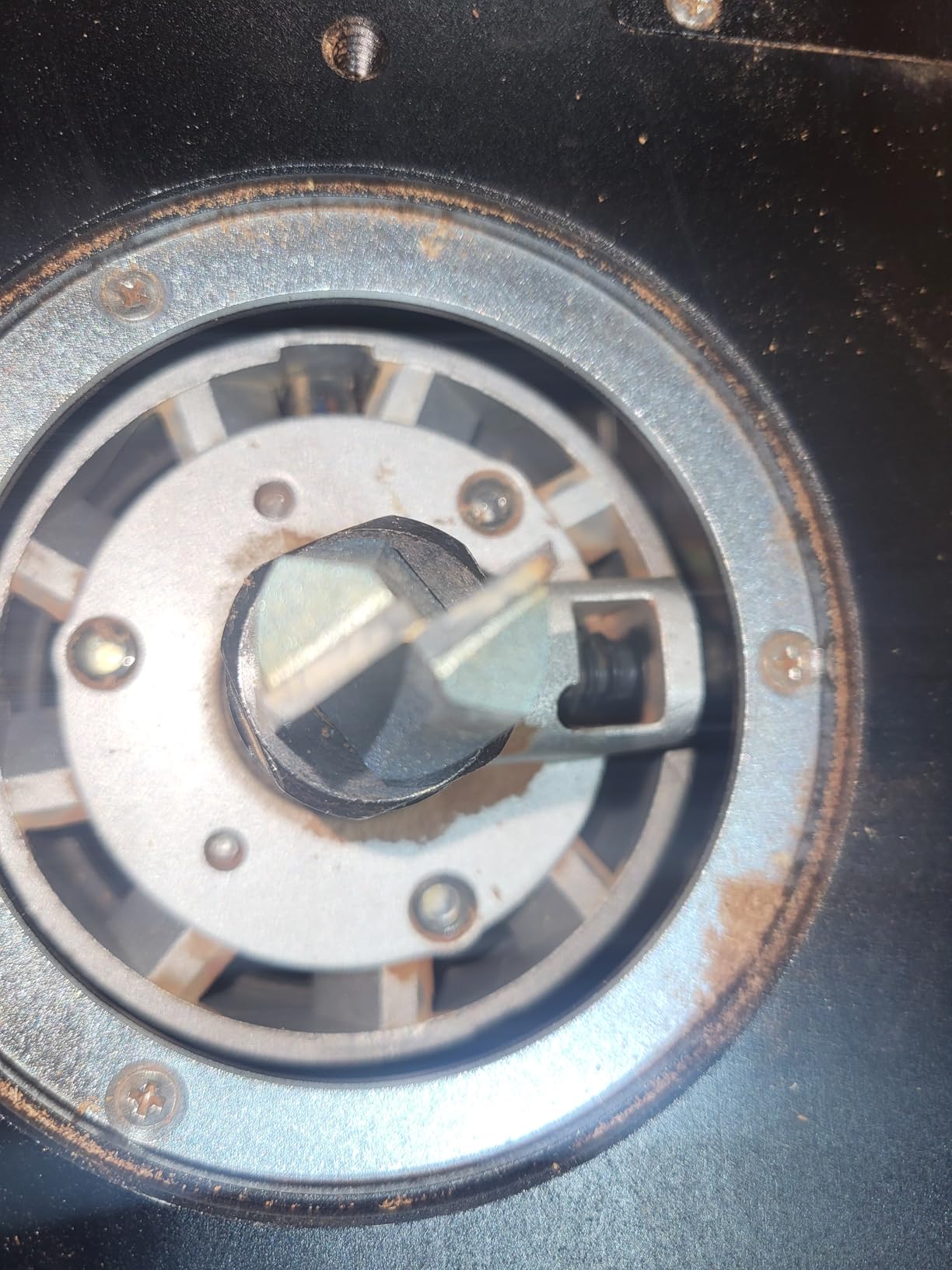

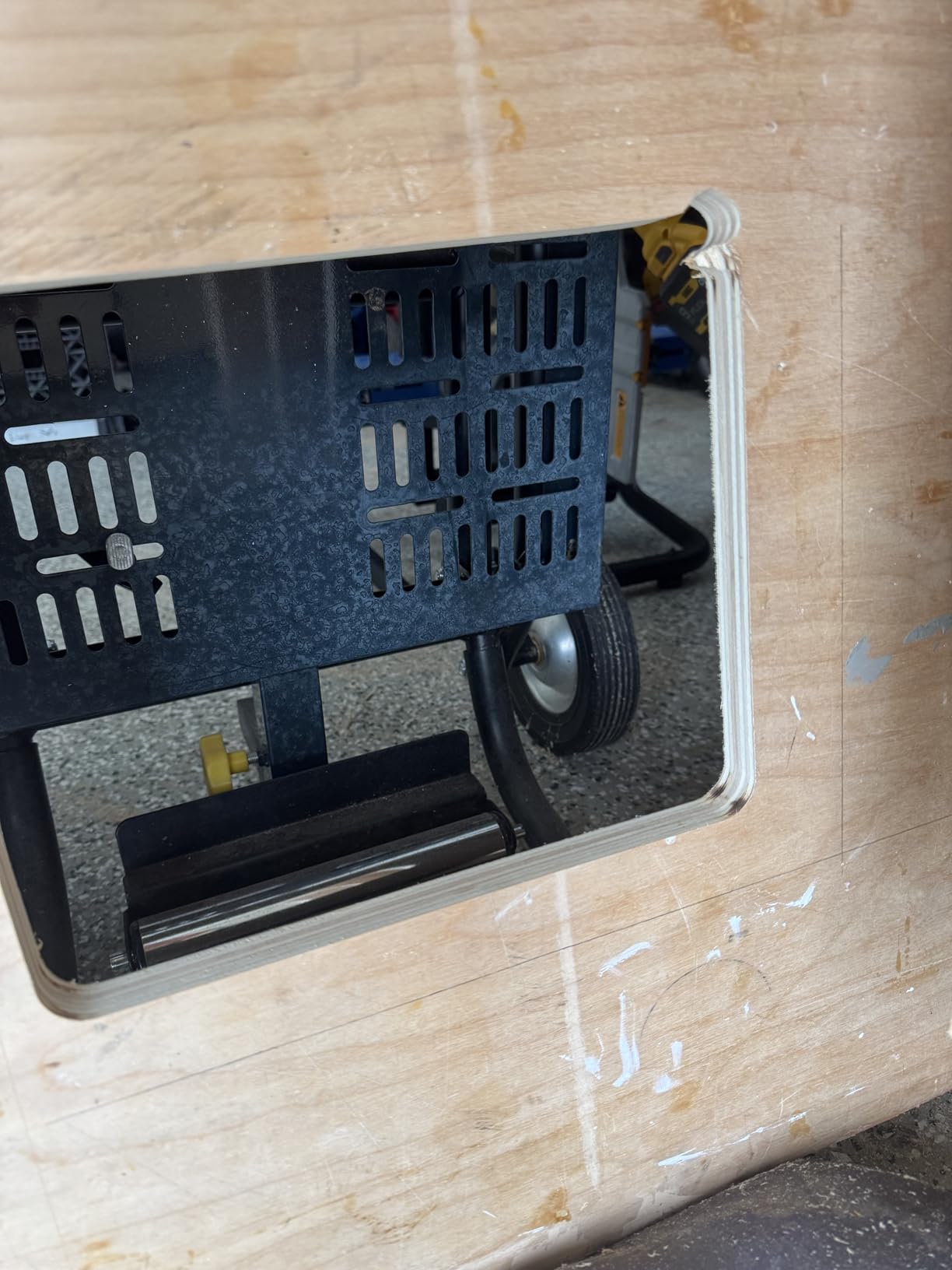

6. SpeTool SP-RP-L – the pick for building a table top from scratch
SpeTool Router Lift System – Heavy-Duty Aluminum Router Lift Kit for Woodworking, Router Table Lift with Insert Plate 9-1/4″x11-3/4″and Above-Table Adjustment with 3 Magnetic Insert Rings
Plate: 3/8 inch x 9-1/4 x 11-3/4 aluminum
Fits 2-9/16 to 4-1/4 inch motors
Travel: 4-1/4 inches
Weight: 19.8 pounds
Pros
- Widest motor range here from 2-9/16 to 4-1/4 inch bodies
- Two bench templates make cutting a new top straightforward
- 0.001 inch control via index ring
- All-metal construction with double-sealed linear bearings
Cons
- Included template can be undersized and has a protective film
- Some units drift in alignment with 3.25 HP routers
- Minimal instruction booklet
- Only three insert rings included
The SpeTool SP-RP-L is the widest-fit lift in this group and the only one that ships with templates for cutting your own bench top. The motor range runs from 2-9/16 inch to 4-1/4 inch diameter, covering everything from small trim routers to a 3.25 hp full-size body, and that range is what makes it a safe recommendation when you are not certain which motor you will use in five years.
Height adjustment is 4-1/4 inches of travel on a 20 TPI screw with a zeroing index ring for 0.001 inch accuracy, running on double-sealed linear bearings on the guide posts. The insert plate is 3/8 inch solid aluminum at 9-1/4 by 11-3/4 inches, the most common table opening size, and it works with Kreg and O’SKOOL router tables.
The two workbench templates are the feature nobody else in this group offers. They turn the intimidating part of building a router table, cutting a square opening, into a traced outline with a drill and a jigsaw. Several owners who bought this lift to build a benchtop router table say the templates are why the project got finished. Three magnetic insert rings are included, along with an Allen wrench.
The reported problems are specific and worth weighing. Owners mention that the included template ships with a protective film still on it and can measure undersized, so trace and check before cutting your top. A few units show alignment drift with larger 3.25 hp routers, which is consistent with the extra mass working against a single-column design. The instruction booklet is minimal, and only three rings are included, so plan on sourcing more rings if you work in a lot of bushing sizes.
Is a DIY router table with this lift realistic?
Yes, and the templates are the reason. Building your own top is a weekend project for a competent woodworker, and it lets you size the table to your shop and your height. A router table built around the standard 9-1/4 by 11-3/4 inch opening also means you can swap in a different lift later without rebuilding anything.
One caveat from the forums: DIY router table builds attract a lot of enthusiasm, and at least one builder noted it was a lot more work than expected. The lift itself is not the hard part. The hard part is squaring the opening and getting the plate level, which is why a three-point leveling lift is worth paying for.
Who should not buy this one?
Skip it if you already own a good router table with a standard opening, because the templates go unused. Also think twice if you run a heavy 3.25 hp router as your primary machine, since alignment drift is the most-reported complaint in that scenario.
For most single-motor shops, the motor range alone justifies the choice over a fixed-size carriage.

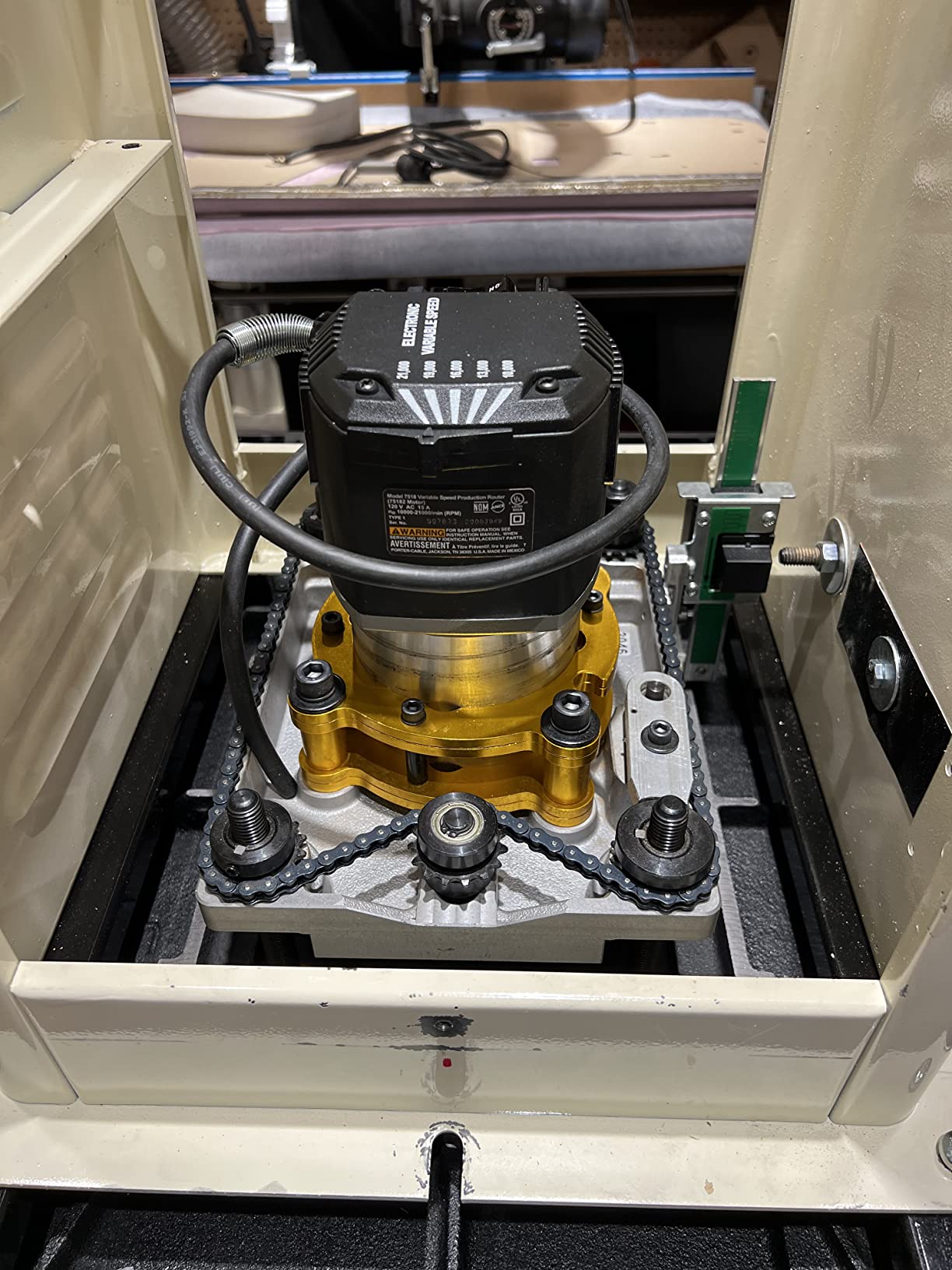

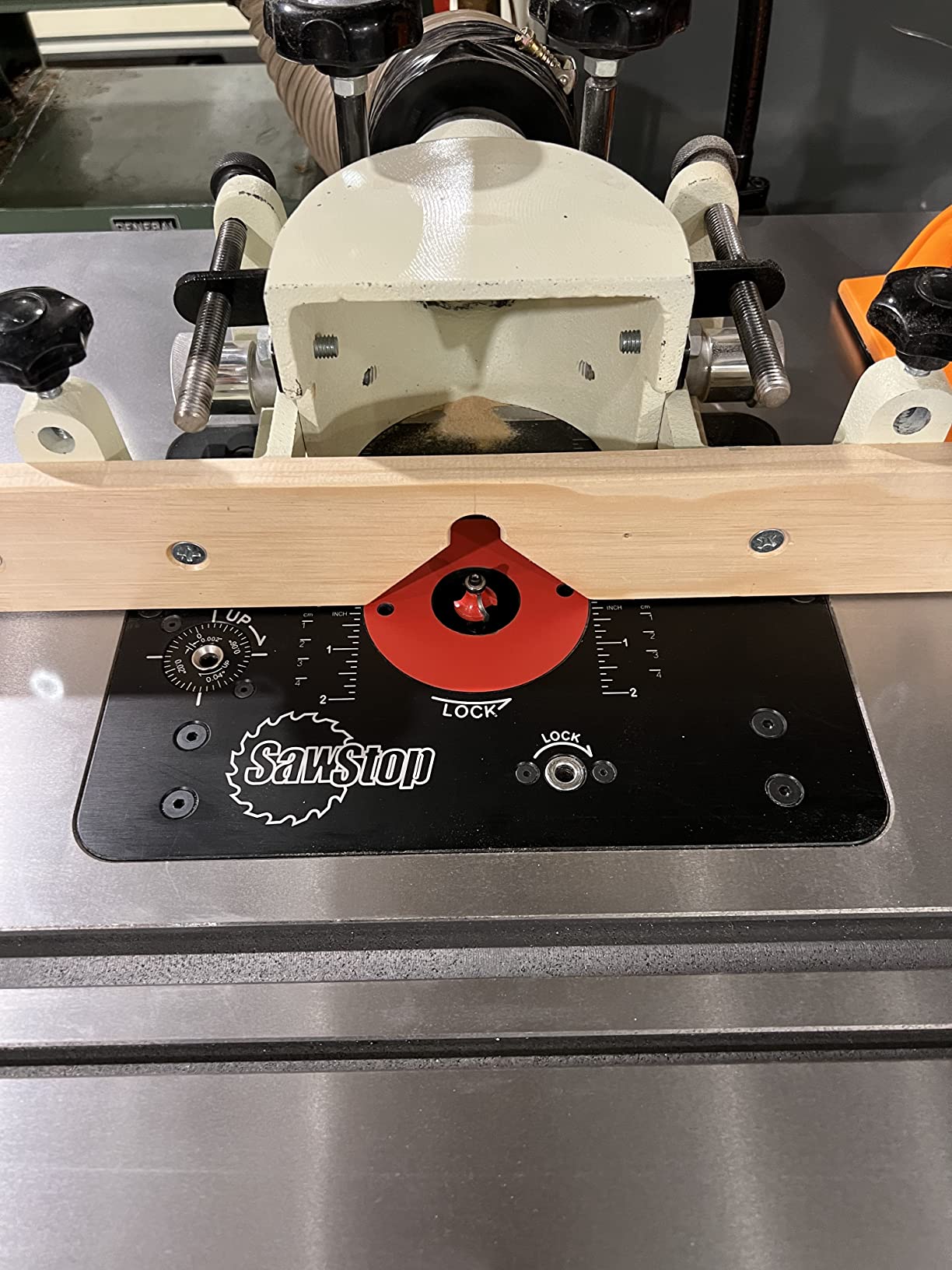

7. SawStop RT-LFT Four-Post – the pick for heavy routers
SawStop RT-LFT Four-Post Router Lift with Lock
Four-post frame with height lock
Motor range: 3-1/4 to 4-1/4 inch diameter
Insert ring: 3-3/4 inch phenolic
Weight: 16 pounds
Pros
- Four-post architecture resists flexing under heavy routers
- Accepts 3-1/4 to 4-1/4 inch motor bodies
- Includes both reducer collars and a hex key set
- Lock holds its setting through a cut
Cons
- Phenolic insert ring rather than aluminum
- Lowest rating in this group at 4.3 stars
- Only a single 1-1/2 inch insert ring included
- Premium tier pricing
The SawStop RT-LFT takes a different structural approach from every other lift here. Instead of a single central column carrying the motor, it uses a four-post design, and that geometry is the reason it resists flexing under a heavy router. If you run a full-size 3 hp or larger body and have felt a lighter lift move during a deep cut, the extra rigidity is the reason to consider this model.
The motor range is 3-1/4 inch to 4-1/4 inch diameter, with reducer collars for 3-1/4 and 3-1/2 inch bodies included in the box. A 3-3/4 inch phenolic insert ring, a 1-1/2 inch phenolic table insert ring, an insert wrench and a set of hex keys come with it, and the unit weighs 16 pounds.
Buyers consistently praise the rigidity of the four-post frame and the width of the motor fit range, and the lock is reported to hold through cuts. SawStop has been selling the RT-LFT since mid-2018, so the design is proven rather than experimental, and the listing is measured in metric, which matters if you are outside the US.
The rating is the lowest in this group at 4.3 stars, and the reason is fairly clear from the feedback: the insert ring is phenolic rather than aluminum, and only one ring size is included. Phenolic is dimensionally stable and fine for a single ring, but the long-term sag concerns that owners raise about phenolic plates apply here as well. If you change bushing sizes often, the single included ring means sourcing more hardware before your next job.
Is a four-post design worth it for a home shop?
For most home shops, no. The rigidity advantage only shows up with a heavy router and a demanding cut, and if your work is trim, dados or small joinery, a well-leveled single-column lift is indistinguishable in the finished part. Four posts also cost more and weigh more, which matters for a portable benchtop setup.
It is worth it if you cut thick hardwood with a full-size router, or if you already own SawStop tables and want the brand-matched lift. Buyers in the SawStop community have asked this question publicly because the branded ecosystem is confusing, and the honest answer is that SawStop, JessEm and Woodpeckers each make versions fitting SawStop openings. Check your plate dimensions before assuming the branded one is the only option.
What about a used four-post lift?
If you find one second hand, inspect the four posts for straightness and the lock for engagement, and confirm the reducer collars are present. A four-post frame that has been dropped can lose alignment, and that shows up as a plate that will not sit flat. Buy with the reducer collars and rings included, since those are the pieces most often missing from used sales.

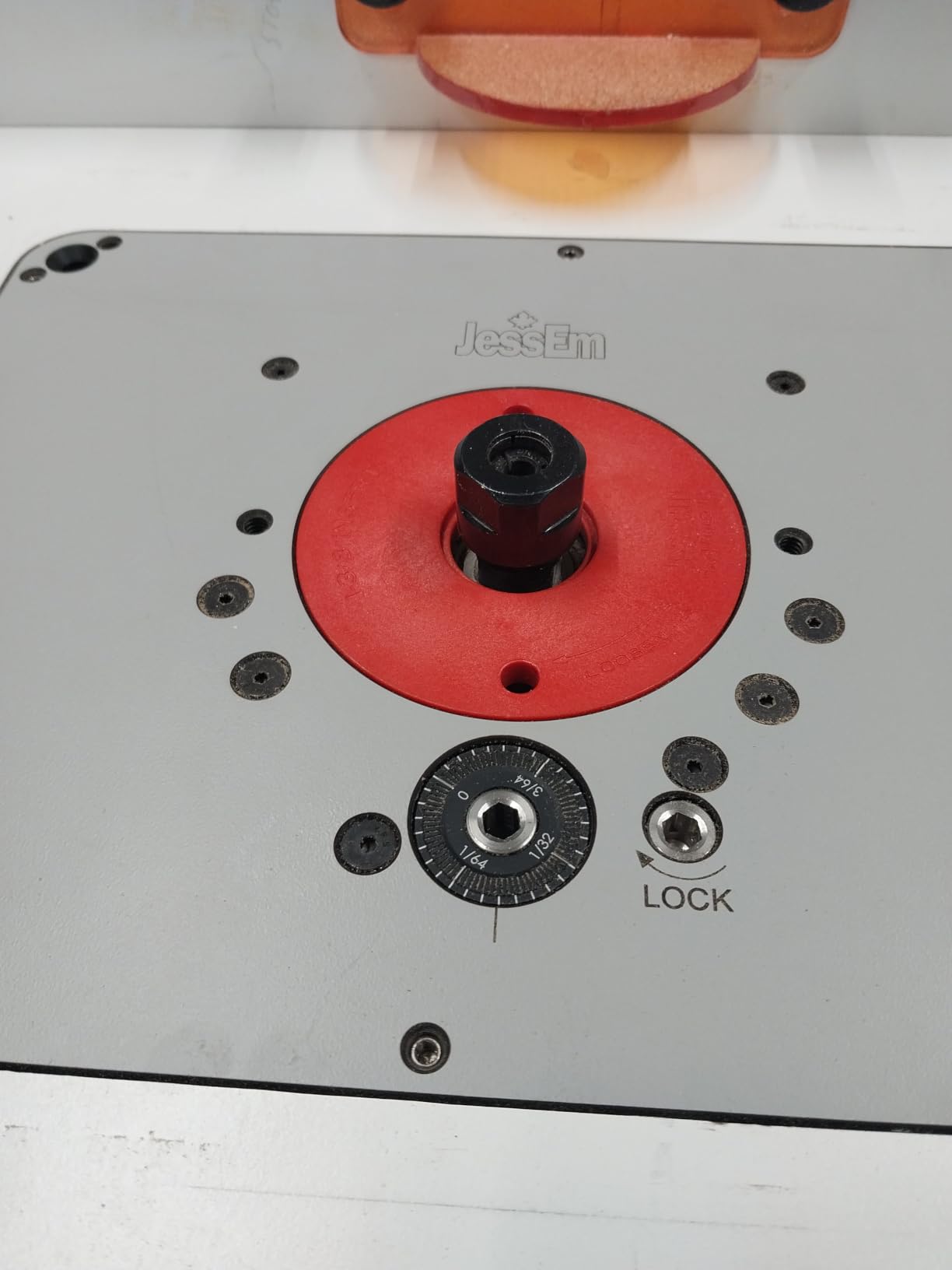

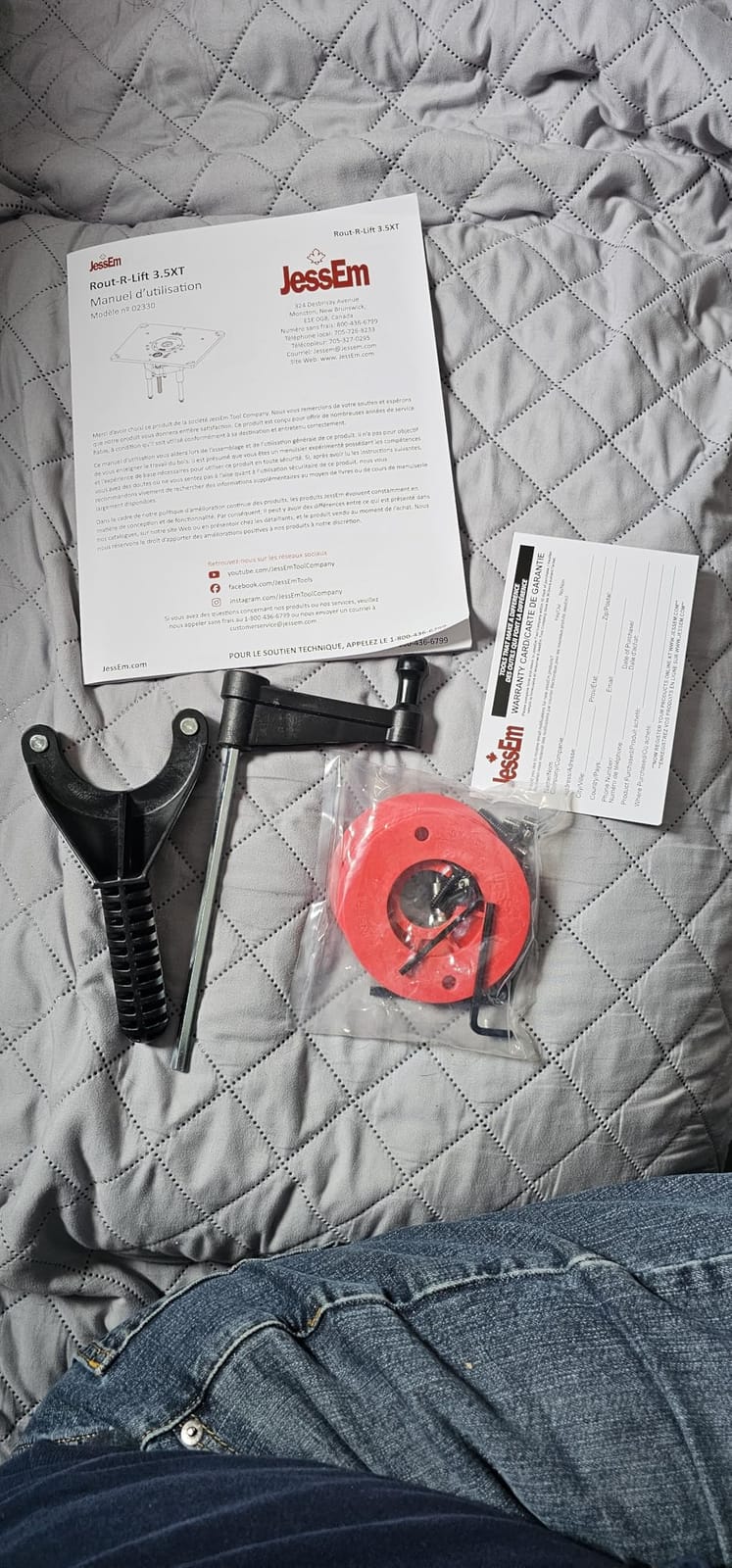

8. JessEm Rout-R-Lift 3.5XT – the budget pick
JessEm Rout-R-Lift 3.5XT Router Table Lift System for 3-1/2″ Motors
Plate: 3/8 inch phenolic at 9-1/4 x 11-3/4 inches
Fits 3-1/2 inch fixed base motors
Double-sealed bearing spindle
Model 02318
Pros
- Drops into a standard table opening to upgrade an existing table
- Smooth repeatable height settings with no frills
- Above-table bit changes save real setup time
- Well below the cost of the Mast-R-Lift II
Cons
- Phenolic plate can sag over time under heavier routers
- No cutting template for the table opening
- Not sized for small trim routers
The JessEm Rout-R-Lift 3.5XT is the cheapest credible way to add above-table adjustment to a router table you already own. The plate drops into a standard 9-1/4 by 11-3/4 inch opening, which is the most common table size in North America, so in many shops this is a same-opening swap rather than a rebuild.
It fits 3-1/2 inch fixed base motors directly, covering the Porter Cable 690 and 890, DeWalt 610, 616 and 618, Bosch 1617 and 1618, and Skil and Craftsman models. Makita 1101 and Hitachi M12VC bodies fit with an optional printed collar. The spindle uses double-sealed bearings with hydraulically pressed shafts bolted to the top plate, and three twist-out insert rings at 1-3/8 inch, 2 inch and 2-1/2 inch are included.
Owners treat it as the sweet spot between JessEm build quality and entry cost, describing the operation as buttery smooth with no unnecessary frills and praising how repeatable the height settings are. A 2026 woodworkingtalk thread paired this lift with a DeWalt 618, a combination owners report liking, and that pairing remains the most common one in the discussions we found.
The tradeoff is the plate material. It is phenolic rather than the solid aluminum used on the premium JessEm lifts, and owners flag possible sag over time under heavier routers. There is no cutting template for the table opening, and it is not intended for small trim routers. If your table opening is anything other than the standard size, this lift simply will not drop in, so measure first.
Is a phenolic plate good enough?
For a light or medium router doing cabinet and box work, yes. Phenolic is dimensionally stable and plenty flat when new, and most of the failures people report come from lift creep or an out-of-level plate rather than from the ring material itself. Where you will notice a difference is with a heavy router, constant use, or a shop where the table gets moved around.
Forum reports of plastic insert rings not sitting perfectly flat are worth taking seriously, and they are a reason to check ring fitment carefully on any lift rather than blaming the brand. Rings that are proud of the plate or sitting below it will mark or burn your workpiece no matter who made the lift.
Budget pick versus value pick – which one?
If your router is a 3-1/2 inch body and your table opening is standard, this is the cheaper route to above-table changes. If you want a more refined adjustment with an index dial and cam wheels, the O’SKOOL RTS05 further up is the better buy for roughly similar money, and its plate is aluminum.
Our recommendation for a first lift: buy the aluminum plate if you can. Sag is the one complaint that gets worse with time, and time is the one thing you cannot replace in a tool.

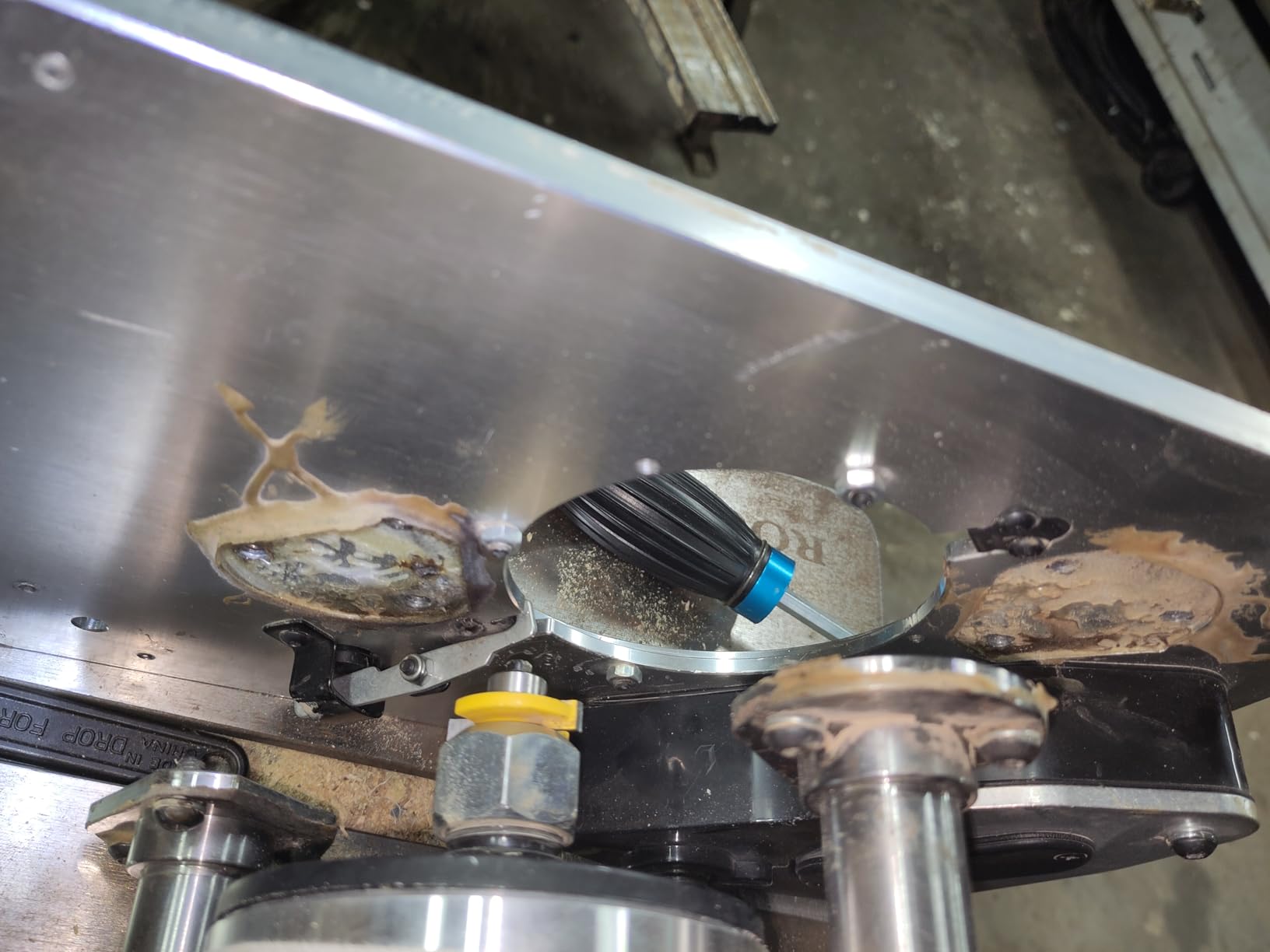

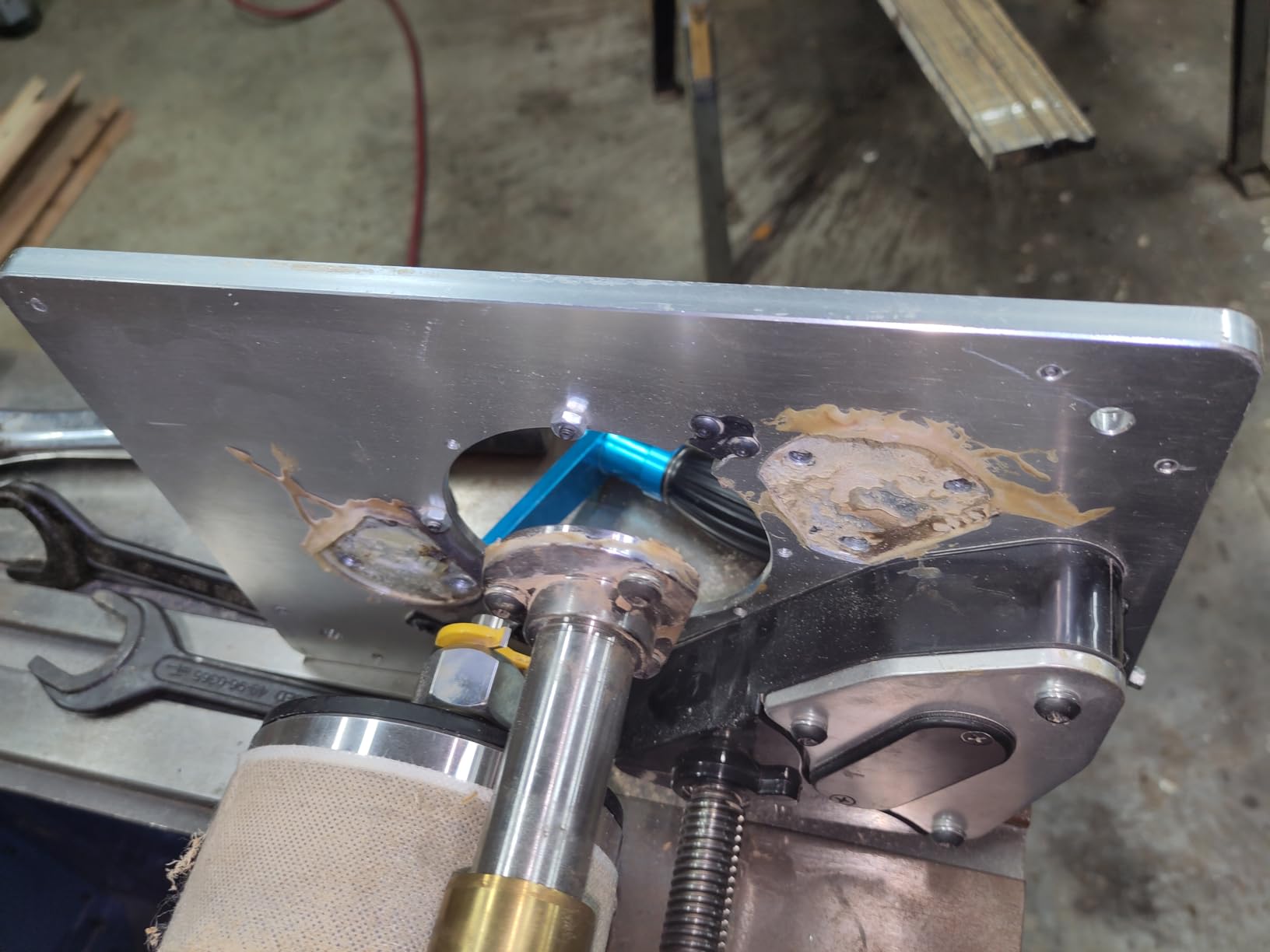

9. Rockler Router Lift Kit – the pick for rapid bit changes
Rockler Router Lift Kit with Aluminum Plate 8-1/4 x 11-3/4
Plate: 3/8 inch aluminum at 8-1/4 x 11-3/4 inches
Quick-Gear rapid raise with precision down-shift
Snap-Lock tool-free ring release
0.001 inch fine adjustment
Pros
- Quick-Gear brings the bit above the table in seconds
- Snap-Lock releases the insert ring with no tools
- Aluminum plate resists sagging
- Precision gear still reaches 0.001 inch final height
Cons
- Narrower 8-1/4 inch plate does not match the common opening
- Only one insert ring included
- Lowest rating in the group at 4.0 stars
- Premium price for the narrower plate
The Rockler Router Lift Kit is the only lift here with a true two-speed drive, and that is the entire idea. The Quick-Gear mechanism raises the bit fast, then down-shifts to a precision gear for the final 0.001 inch. Add the Snap-Lock tool-free insert ring release and bit changes stop being an event. For a shop that changes bits constantly while profiling edges or cutting molding, that is a real workflow gain.
The plate is 3/8 inch aluminum measuring 8-1/4 by 11-3/4 inches, and the kit includes a 1-1/2 inch inside diameter insert ring plus a set of hex keys. Reviewers consistently single out the two-speed mechanism as the standout feature, citing fast tool-free bit changes as the reason they recommend it.
Be aware that this is the lowest-rated lift in our group at 4.0 stars on 30 reviews, the smallest review base here, and a meaningful share of one-star feedback. The complaints cluster around fit and value rather than mechanism quality, which points at the plate dimension as the real issue rather than the gearing.
That plate size is the deciding factor. At 8-1/4 inches wide, it is narrower than the 9-1/4 inch standard opening, so it will not drop into the most common router table opening without cutting the existing top to fit. The included single 1-1/2 inch ring also means you will be sourcing additional rings for other bushing sizes.
Is the Quick-Gear mechanism worth changing tables for?
No, and we want to be direct about that. A two-speed drive is a genuinely nice piece of engineering, but the plate is the part that has to match your table, and you do not reshape a router table top to accommodate a convenience feature. If your existing table already has an 8-1/4 by 11-3/4 inch opening, the mechanism is a strong reason to choose it. If it does not, the Incra or the SpeTool make more sense.
Within Rockler table owners, the Snap-Lock ring release is the feature people mention first, since no tools means nothing gets lost in the sawdust.
What should I look for in a used Rockler lift?
Check that both gear positions engage cleanly, that the plate is flat across its width, and that the Snap-Lock button holds a ring firmly. On a 30-review product, a used unit is a bigger risk than on a lift with hundreds of reviews, so treat it as a project rather than a shortcut. Confirm the hex key set and the 1-1/2 inch ring come with it, because those are the parts most often missing.

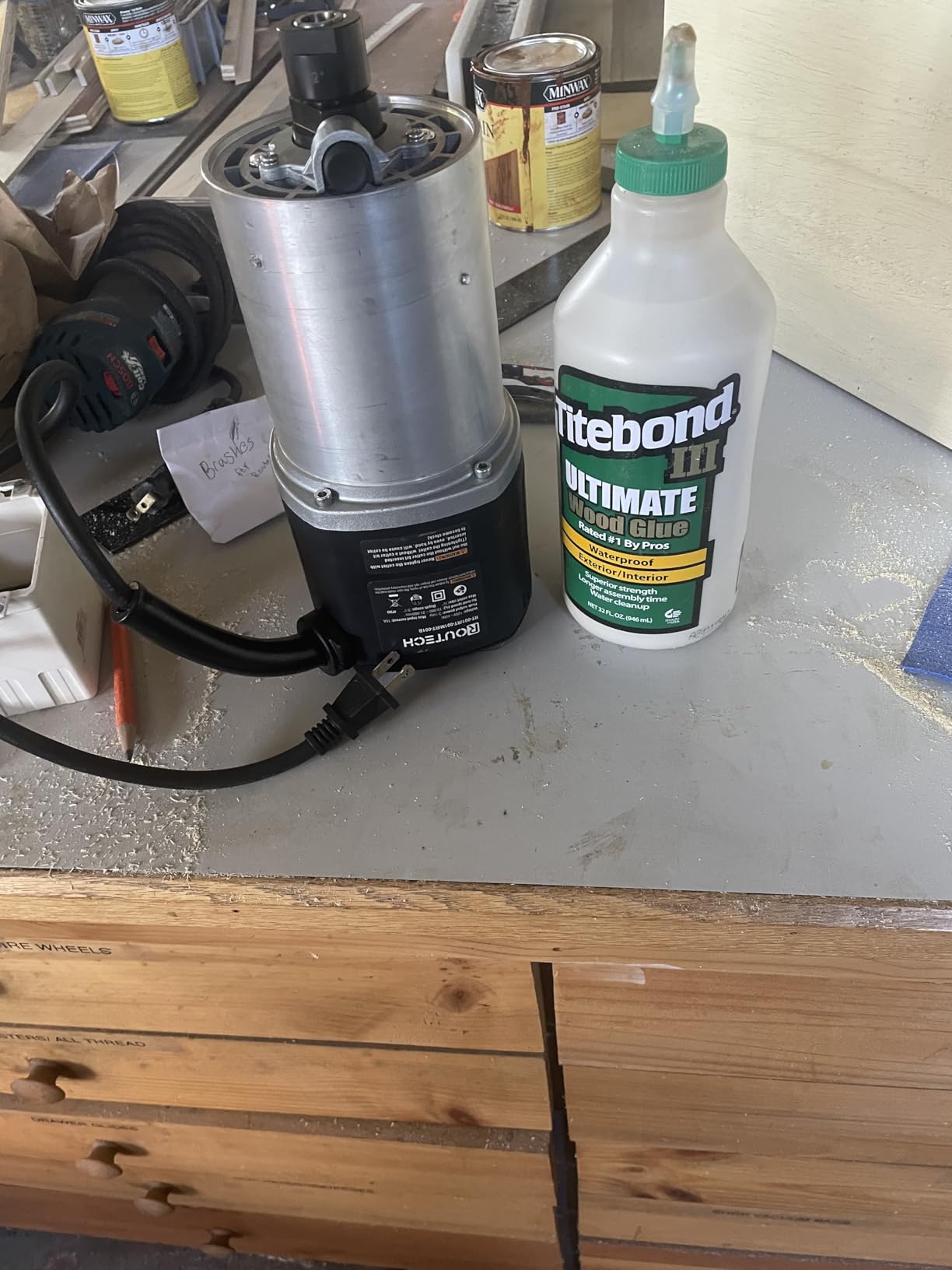

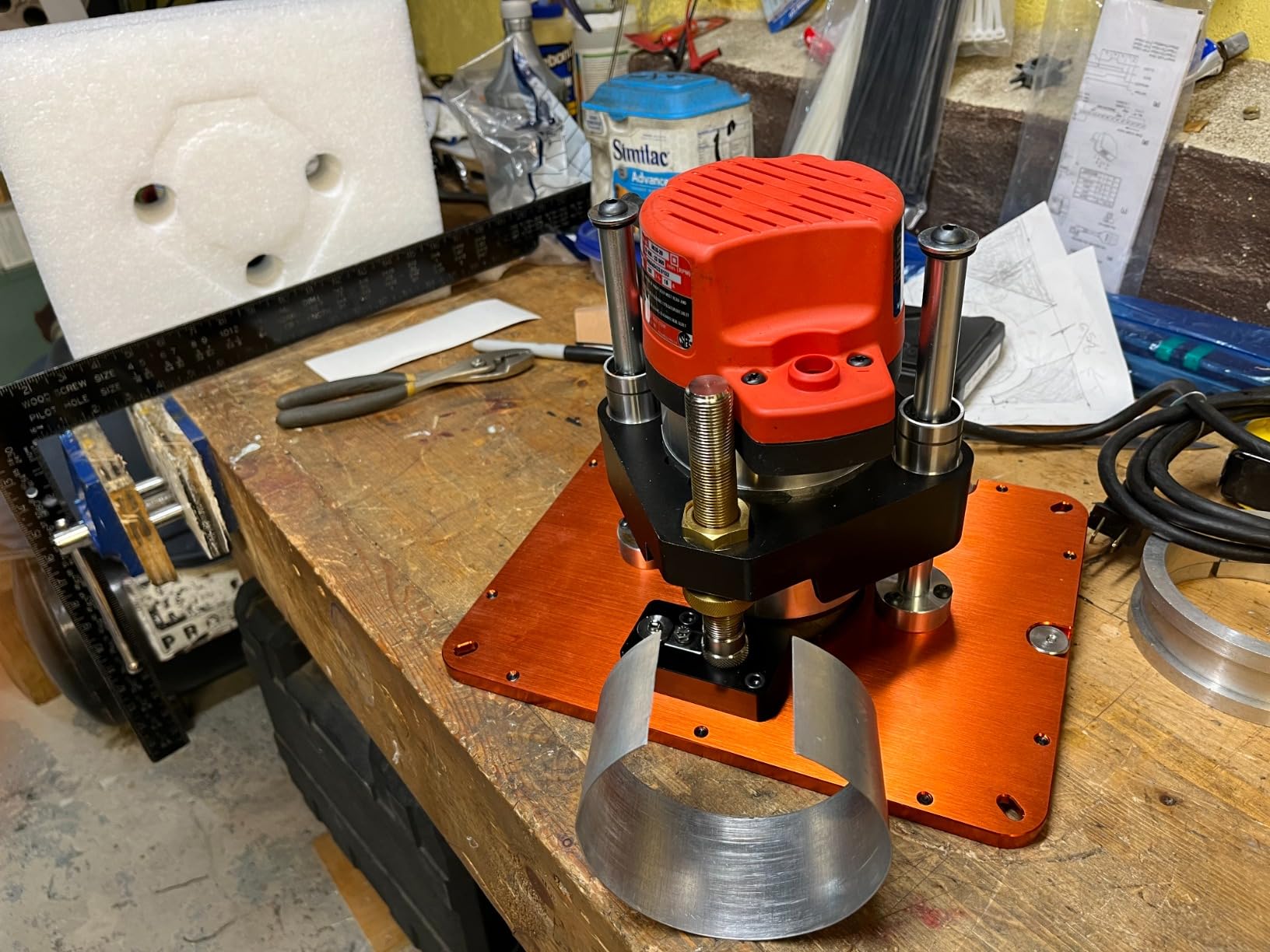

10. O’SKOOL RTS013 – the pick for 4.2 inch motor bodies
O’SKOOL Router Lift System,4.2″ Motor Fit, Aluminum Plate
Plate: 11-3/4 x 9-1/4 x 3/8 inch aluminum
Fits 4.2 inch diameter motor bodies
Travel: 3 inches
32-line micro-adjustment dial
Pros
- Fits large 4.2 inch motors smaller carriages cannot hold
- 10 leveling screws give an exceptionally flush plate
- Micro dial reads 1/512 inch per scale line
- Cam wheels reduce vibration-related plate movement
Cons
- Requires a separate adapter collar for 3-1/2 inch motors
- Smallest review base in the group at 26 reviews
- 3-5/8 inch insert rings not included
The O’SKOOL RTS013 solves one specific fitment problem properly: 4.2 inch diameter motor bodies, the size used by the Triton TFBR001, Woodpeckers 1015420, Porter Cable 7518, Bora PM-6200 and MLCS 9564. Most carriage-style lifts top out at 3-1/2 inch, so if your router is one of these, the alternatives are fewer than the marketing suggests.
The plate is 11-3/4 by 9-1/4 by 3/8 inch aluminum with a 3/4 inch corner radius, and the leveling system is the most thorough in this group: ten leveling screws plus three cam wheels for flush fit. Height adjustment is 3 inches with a 32-line micro-adjustment dial reading 1/512 inch per scale line, and a height screw lock resists vibration drift. Centerlines and a start pin are included, which is a small touch that saves real time on setup.
Reviewers focus on the machined aluminum plate, the abundance of leveling screws and the precise dialed height control, and they rate it well at 4.6 stars. The main compatibility limit is the obvious one: 3-1/2 inch motors need the separate adapter collar, so this is a specialist choice rather than a universal one. A one-year warranty with setup support is included.
With only 26 reviews, treat the feedback as promising rather than proven. There is not yet a long ownership history here, and the limited star distribution partly reflects that some buyers have not routed with it long enough to judge. If you are comfortable with that, the fit is worth it; if you want a deep review base, the SpeTool covers a similar motor range with far more owner history.
Do I need a 4.2 inch lift?
Only if your router body measures 4.2 inches across. Measure it with calipers at the widest point of the motor housing before you buy anything, because the difference between 3-1/2 inch and 4.2 inch is the single most common reason a lift gets returned. Metric 4.2 inch bodies and imperial 3-1/2 inch bodies are different products, not regional versions of the same one.
If your measurement comes back under 4 inches, use a 3-1/2 inch carriage instead. The O’SKOOL RTS05 or the JessEm Rout-R-Lift 3.5XT will fit and cost less.
What about metric and imperial versions?
This is worth a note because almost no US-facing editorial coverage explains it. A lift sold with a metric plate size and a 4.2 inch carriage is built for metric-market routers and metric table openings, while the imperial versions use 9-1/4 by 11-3/4 inch plates and 3-1/2 inch or 4-1/4 inch carriages. Several products here are listed in both systems, which is why the listing measurements matter more than the brand name.
Check the plate dimensions in inches against your own table opening, and ignore any listing that only gives you a metric figure. If a seller does not publish the plate size at all, that is a reason to look elsewhere.
How to Choose a Router Lift – Buyer’s Guide
Compatibility decides the purchase, and every other feature is secondary. Work through the checks below in order and the right lift for your table becomes obvious quickly. The order matters because most returns in this category happen because a buyer checked features first and dimensions last.
Measure before you buy
You need three measurements from your side of the table and one from your router. Measure the length and width of the opening in your table top, then measure the corner radius if the corners are rounded. The most common opening is 9-1/4 by 11-3/4 inches, but 9 by 12 inch is not a common standard size and is where orphaned legacy tables cause trouble. The SpeTool templates exist precisely because measuring and cutting a new top is the part people get wrong.
Then measure your router body diameter. The two common sizes are 3-1/2 inch and 4.2 inch, sometimes written as 4-2/8 inch. A lift with a 3-1/2 inch carriage will not hold a 4.2 inch body, and a 4.2 inch carriage will not accept a small trim router without an adapter collar. This single measurement eliminates most of the wrong purchases in this category.
Finally, check the corner mounting screw pattern. Branded tables use different corner patterns, which is why the JessEm Mast-R-Lift II does not align with Kreg brackets and the Incra version is built for Rockler and Bench Dog openings. If your table brand is still sold, its matching lift is still supported and adapters exist. If the brand is discontinued, as with Rousseau, you may be dealing with a plate no one makes any more, so verify availability before you commit.
What actually affects cut quality
Three things, in this order. Plate flatness and levelness come first, because an out-of-level plate cuts out of level no matter how good the lead screw is. Look for three-point or multi-screw leveling, and expect to spend real time on it during installation.
Second, backlash in the lead screw. A preloaded or anti-backlash screw holds a setting when you release the crank; a plain threaded screw lets the motor settle back under load. Published figures of 0.001 inch fine adjustment describe the adjustment range, not the backlash, so treat them as a floor rather than a guarantee.
Third, insert ring fit. Rings that sit proud of the plate or below it mark the workpiece and can burn. Flushness complaints appear repeatedly on woodworking forums across multiple brands, and the fix is usually mechanical, not a replacement: reseat the ring, check the ring bore for scoring, and confirm the plate surface itself is clean and flat.
Height locks are the fourth question, and the answer surprises people. In published testing, locks on top-tier lifts made no measurable difference in play or deflection. A lock protects against vibration drift during a cut, which is worth having, but it is not what makes a cut accurate.
Plate material, phenolic versus aluminum
Aluminum plates resist sag and scratch, which is why most of our picks use one. Phenolic plates are dimensionally stable and fine for light routers, but they can develop a dish over years of heavy use, and once the plate is cupped your depth readings drift across the opening. If you run a full-size router daily, buy aluminum. If you route occasionally with a light motor, phenolic is a reasonable way to save money.
One related failure mode to avoid: do not remove the router while it is raised. The threaded spindle and the plate surface can be dinged, and a scratched plate will scratch workpieces later. Drop the motor first, then unbolt.
When to consider a DIY lift instead
Wooden lift builds are genuinely discussed in woodworking forums, and they can work for a fixed purpose such as a custom molding setup. The recurring comment from builders is that it took far more work than expected. A homemade wooden lift gives you height adjustment but usually not above-table bit changes, and it will not hold the plate flat under a heavy motor.
Our verdict: build a wooden lift only if you need a simple fixed adjustment for one specific operation and already have the woodworking skill to make it rigid. If the goal is general router table work with above-table bit changes, one of the lifts above will be faster and more accurate. If the router table lives on a freestanding bench rather than a fixed cabinet, the height and stock selection work is closer to our side table buying guide than to a machine tool manual.
Troubleshooting the three complaints we hear most
Rings not flush: remove the ring, clean both the bore and the plate recess, and check for a warped ring. If the ring was dropped, replace it rather than shimming it. This is a common problem on Kreg inserts in particular, and it is a fitting issue rather than a brand issue.
Lift creeping during a cut: fully seat the height lock, tighten the motor set screws, and re-check that the plate is level. Creep is a load path problem, so adding a clamp or fixing a loose mount fixes it permanently, while a stronger lock only hides it.
Dial spinning with the mechanism: usually the height screw lock has been left engaged, or the indexing ring is not seated on its detent. Release the lock before turning the dial past the zero point, and confirm the index ring drops fully into place before you rely on the reading.
Setting your table height
The comfortable working height for a router table is roughly the same as your table saw top, which for most people is around 34 to 38 inches from the floor. The practical test is simpler than a number: set the height so the fence and workpiece push through the opening without you bending at the waist, and so the front handle of the lift clears the fence as you crank. If the crank handle hits the fence at full travel, you have a fence height problem, not a lift problem.
Height and clearance work out the same way whether the table is a shop fixture or a piece you intend to keep in a finished room. Our picks for sofa tables and entryway tables cover the narrower stock and lower-clearance cases if you are weighing a lift for a domestic space rather than a bench.
Router Lift vs. Self-Lifting Router vs. Benchtop Router
A self-lifting router gives you above-table height adjustment with no table at all, which makes it the cheapest route to faster setup. What it does not give you is a fence, a throat plate or the flat overhead support that a wide workpiece needs. A self-lifting router is the right choice for trimming and shaping on small parts, and it is a poor choice for edge profiling, wide panels or any cut where you need to push a large workpiece against a fence.
A router table is a work surface, not a machine. It does nothing on its own beyond giving you a fence, a plate opening and support for the workpiece. If your table has no lift, every height change happens underneath with a wrench.
A benchtop router is the traditional setup: the router sits on the bench, a fence is clamped to it, and the workpiece runs over the top. It is the least expensive and the most flexible for shaping work, but every height adjustment is a shim-and-wrench operation, and the workpiece is never fully supported on both sides.
For most furniture makers, the order of adoption is self-lifting router first for shaping, then a router table when joinery starts, then a lift on the table when the table is already good. The value case for a lift is strongest when your table already has a fence you trust, because then the lift is the only missing piece.
On value specifically: the premium tier is worth it if you route daily and cut heavy material, and it is not worth it if you route occasionally with a light router. Mid-tier lifts with aluminum plates and three-point leveling deliver most of the practical benefit. That is why our top pick sits in the middle of the range rather than the top of it.
Best Router Lift for Each Brand of Router Table
Match the lift to the table brand first, and this list covers the common cases. Incra and Rockler tables are the easiest to pair because brand-matched lifts exist, including the Incra Mast-R-Lift-II-R for Rockler and Bench Dog openings and the Kreg PRS5000 for all Kreg tables.
JessEm tables pair naturally with JessEm lifts, and the Mast-R-Lift II is the version to choose for a table you plan to keep for years. The Rout-R-Lift 3.5XT covers the same standard plate opening at a much lower cost if your router is a 3-1/2 inch body.
SpeTool and the O’SKOOL range both use the standard 9-1/4 by 11-3/4 inch plate, which means they fit most generic tables built to that opening. The SpeTool is the broader motor fit and the better choice if you are building the table yourself, since the bench templates come in the box.
SawStop tables are the confusing case. SawStop, JessEm and Woodpeckers each make versions fitting SawStop openings, so the branded lift is not the only option. Measure the opening and confirm the plate size before deciding.
Harvey Big Boy table owners are in the same position as any generic table, and the speed bumps are the same: measure the opening and the motor diameter. Most Harvey table openings follow a standard size, which is why the standard-plate lifts fit, but verify rather than assume.
For a discontinued or legacy table such as a Rousseau, expect harder work. When the table maker stops making lifts, plate patterns stop being standard, and you may need a custom plate or a template cut. The SpeTool templates are the most useful tool in that situation because they let you cut a new top to a known dimension.
Frequently Asked Questions
What is the difference between a router table and a router lift?
A router table is the work surface, a flat top with a hole, a fence and sometimes a throat plate that lets a handheld router work like a stationary machine. A router lift is a separate mechanism mounted inside that table which clamps the router motor and lets you raise or lower it from above the tabletop. The lift is what makes above-table bit changes and fine depth adjustment possible.
Does any router fit any router table?
No, and this is the most common reason a lift gets returned. The lift plate must match your table opening, most often 9-1/4 by 11-3/4 inches, and the motor carriage must match your router body diameter, which is commonly 3-1/2 inch or 4.2 inch. Corner mounting patterns also differ between table brands. Measure the opening length and width and the motor diameter before you buy.
What is the best router lift for the money?
For most shops, a mid-range lift with a hard-anodized aluminum plate, three-point leveling and an index dial delivers most of the practical benefit of a premium lift. The O’SKOOL RTS05 is our value pick and the Kreg PRS5000 is our all-round pick for exactly that reason. Pay more only if you route daily with a heavy motor, where rigidity and plate longevity start to matter.
Are expensive router lifts worth it?
Sometimes, and the deciding factor is how much you route. Premium lifts add cam locks, sealed bearings and solid aluminum plates, which show up as less play during a cut and less plate sag over years. In published testing, height locks on top-tier lifts made no measurable difference, so a mid-range lift with a good lead screw and a level plate will produce the same finished part in a shop that routes occasionally.
What is the perfect height for a router table?
Roughly the same height as your table saw top, usually about 34 to 38 inches from the floor. The better test is whether you can push a workpiece through the opening without bending at the waist and whether the lift crank handle clears the fence at full travel. If the handle collides with the fence, lower the fence or reposition the handle before changing the table height.
Where are JessEm router lifts made?
JessEm router lifts are CNC machined in Canada. The Rout-R-Lift 3.5XT carries a Canadian machining note in its published specifications, and the components for the category are largely produced there. Several competing lifts in this category, including the Incra Mast-R-Lift-II-R, are also manufactured by JessEm to another company’s specifications.
Why does my router lift drift or creep during a cut?
Creep usually means the height lock is not fully engaged or the motor mount has loosened, so cutting load shifts the motor. Fully seat the lock, tighten the motor set screws and re-check that the plate is level. A stronger lock only hides the problem, while fixing the mount resolves it permanently. Also confirm the plate is not cupped, since a dished plate makes the reading change across the opening.
Conclusion
After weighing all ten, the Kreg PRS5000 is our choice as the best router lift for router tables overall, because it combines the deepest review history in the category with a hard-anodized aluminum plate at the standard opening size and adjustment from above the table. The JessEm Mast-R-Lift II is the pick when rigidity and long-term durability justify the premium, and the O’SKOOL RTS05 is the value pick that surprises people by how much it does for the money.
Whatever you choose, measure your table opening and your router body diameter first. That five-minute check prevents nearly every complaint we found in owner reviews for 2026, and it costs nothing. Then check current pricing on the buttons above, since these figures move often.
