The best water pressure tank for a well system is the one sized to your pump’s flow rate and rated by drawdown at your pressure switch setting, not by the gallon number printed on its shell. A 20-gallon bladder tank and a 44-gallon galvanized tank can deliver almost the same usable water, which is exactly why so many homeowners replace a tank and keep short cycling.
I have spent the last few months reading owner reports, spec sheets and failure write-ups on residential well tanks, then matching what I found against pump sizes and pressure switch settings. The pattern that repeated across every forum thread and review set is the same: people buy on brand name or on the gallon sticker, then wonder why the pump still cycles.
That is why this roundup is built around drawdown. Every pick below lists its real capacity, connection size, warranty and certification, plus what each tank is actually good at. If you want the short version first, our broader well pressure tank guide covers the category basics.
One warning before we start. The pressure switch on a well system is a line-voltage device. Setting pre-charge and swapping a tank is fine for a confident DIYer with the breaker off, but any work on the switch itself belongs to a licensed electrician, and pressure vessels carry real stored energy.
Table of Contents
Top 3 Picks: Water Pressure Tanks for Well Systems in 2026
Water Worker HT-20B 20 Gallon
- 20 gallon vertical
- Seamless butyl diaphragm
- NSF/ANSI 61 listed
- 5 year warranty
Amtrol WX-202 Well-X-Trol
- 20 gallon vertical
- High-strength steel shell
- Hoop ring seal
- 7 year warranty
Amtrol WX-203 Stand Tank
- 32 gallon stand-mounted
- Deep-drawn steel domes
- Steel system connection
- 7 year warranty
Best Water Pressure Tanks for Well Systems in 2026
| Product | Specifications | Action |
|---|---|---|
| Water Worker HT-20B 20 Gallon Vertical |
|
Check Latest Price |
| Amtrol WX-202 Well-X-Trol |
|
Check Latest Price |
| Amtrol WX-203 Stand Tank |
|
Check Latest Price |
 Water Worker HT-30B 30 Gallon |
|
Check Latest Price |
 Water Worker HT-32B 32 Gallon |
|
Check Latest Price |
 Water Worker HT20HB Horizontal 20 Gallon |
|
Check Latest Price |
 WellMate WM-6 Fiberglass |
|
Check Latest Price |
 Goulds V60 HydroPro Kit |
|
Check Latest Price |
 Red Lion RL20A 20 Gallon |
|
Check Latest Price |
 Red Lion RL34A 34 Gallon |
|
Check Latest Price |
 Red Lion RL4A 4 Gallon Inline |
|
Check Latest Price |
 VEVOR 20 Gallon Vertical |
|
Check Latest Price |
1. Water Worker HT-20B 20 Gallon Vertical Tank – Best Overall
WaterWorker 25009 20Gal Vertical Well Tank, 20 Gallon, Blue
20 gal vertical
1 in FNPT
Seamless butyl diaphragm
5 year warranty
Pros
- Butyl diaphragm flexes instead of stretching and creasing
- NSF/ANSI 61 listed polypropylene liner
- Deep drawn shell rated at twice the strength of a rolled shell
- Fast free replacement from the manufacturer
- Clear pressure switch guidance in the manual
Cons
- Cardboard-only packaging leaves the shell dentable in transit
- Cast metal bottom elbow can rust and eventually restrict flow
- Factory air charge rarely matches the installed switch
This is the tank I recommend to most households, and the reason is volume of real-world feedback rather than a spec sheet. At 4.6 stars across more than 1,200 reviews, it is the most thoroughly exercised option in this roundup, and the failure pattern is consistent: the shell survives, the diaphragm eventually does not.
The diaphragm design matters more than most buyers realise. A butyl diaphragm is bolted to the base and flexes in place, while a bladder hangs from the top ring and stretches, which is why bladder tanks crease and pit over time. This tank also carries a polypropylene liner that will not flake or peel into your drinking water.
Two details catch people out. The tank arrives at a factory air charge that does not match a typical 30/50 or 40/60 switch, so it needs a bleed-down with a tire gauge before you commission it. The tank tee is also not in the box, which is true of nearly every tank in this category.
Owners also report consistently that the manufacturer honours warranty claims with a serial number and no argument. That is a genuine advantage when your failure mode is a dead diaphragm eight years in, and it is a large part of why I put this tank first.
Is the Water Worker HT-20B right for your pump?
If your pump is under about 7 GPM and you want the pump to run a full minute on a single start, this is a well-matched tank. It handles a typical household of two to four people with one shower, a dishwasher and laundry running at different times rather than all at once.
It also suits anyone replacing an older 20-gallon vertical tank with the same 1-inch base connection, since the footprint and tee cutout are unchanged. You can usually reuse your existing tee and fittings.
Where this tank disappoints
The packaging is the weak point. Reviews repeatedly describe dents and bent bases arriving from a thin cardboard-only carton, so inspect the shell before you install it and photograph any damage for the seller.
The cast metal bottom elbow is also a corrosion site in damp or corrosive water. If your well has sulfur, iron bacteria or aggressive chemistry, a stainless or fiberglass shell is a better long-term choice.
2. Amtrol WX-202 Well-X-Trol – Top Rated 20 Gallon Tank
Amtrol WX-202 Well Pressure Tank
20 gal vertical
High-strength steel shell
Polypropylene liner
Hoop ring seal
7 year warranty
Pros
- Proven residential well system design
- Hoop ring seal secures the diaphragm and liner
- Polypropylene liner resists cracking and peeling
- 7 year warranty leads the category
- 4.7 star rating from 656 reviews
Cons
- One of the higher prices in the 20 gallon class
- Pre-charge must still be matched to the installed switch
Well-X-Trol is the name that comes up most often when plumbers and long-time owners are asked which well tank survives longest, and the WX-202 is the compact expression of that. At 4.7 stars from 656 reviews, it carries one of the strongest rating and review combinations in this roundup.
The engineering detail behind that reputation is the positive hoop ring seal. Rather than relying on friction alone, the seal mechanically clamps the diaphragm and liner to the shell, which keeps the sealing surfaces from creeping under repeated pressure cycles.
At 31 inches tall and 15 inches wide with a listed weight of 23 pounds, this is a genuinely manageable tank for one person to position, which matters in a crawlspace or a closet-sized pump room.
The caution is straightforward. You pay more than a comparable steel tank from a value brand, and you still have to verify the factory air charge against your pressure switch before startup. The 7 year warranty is the longest in this roundup, and parts availability for the line is excellent.
Is the Amtrol WX-202 right for your pump?
Choose this tank when you have a moderate-flow pump, a 30/50 switch, and you want the fewest starts per day for the least maintenance over a decade. It is a sensible pick for a home with two to four people and no irrigation demand.
It is also the safest choice if you plan to sell the house or pass the system to someone else, because the Well-X-Trol name and replaceable parts are instantly recognisable to any well contractor.
Where this tank disappoints
It does not fix an undersized system. A 20-gallon tank on a 16 GPM pump will still short cycle no matter how good the bladder is, and owners who expected a new premium tank to solve a cycling problem were disappointed.
Buying the WX-202 when you actually need the 32-gallon WX-203 is the other common regret. Measure your available vertical clearance and your pump flow before you commit to the smaller shell.
3. Amtrol WX-203 Stand Tank – Premium Pick for 32 Gallons
Amtrol WX-203 Well-X-Trol Stand Well Water Tank
32 gal stand-mounted
Deep-drawn steel domes
Steel connection
7 year warranty
Pros
- Deep-drawn domes give twice the strength of rolled steel at lower weight
- Steel connection tolerates aggressive water chemistry
- Hoop ring seal adds diaphragm reliability
- Single-person handling at about 31 pounds
- Reported service life of 10 years or more
Cons
- Tallest vertical footprint in the roundup at 47 inches
- Occasional cosmetic dents to the stand base in transit
- Some owners report warranty friction after diaphragm failure
The WX-203 is the tank I point people toward when a household is on the edge of needing more capacity and the question is how much bigger to go. It is a 32 gallon stand-mounted tank with a 47 inch tall profile, and that height is the one thing to measure before ordering.
The deep-drawn domes are a genuine strength upgrade over rolled steel. Amtrol rates them at twice the strength of a rolled shell of the same thickness while weighing less, which matters in a ceiling-mounted or tight pump room installation.
The steel system connection is the sleeper feature for anyone on sulfur or iron-bacteria water. Plastic base fittings and plastic elbows crack or embrittle in aggressive water, and a steel base connection removes one of the most common long-term failure points.
Because it is a stand tank, the base plate keeps the shell off the floor. That protects the paint finish from condensation in a damp pump room and stops the corrosion that creeps up from a wet concrete pad.
Is the Amtrol WX-203 right for your pump?
This is a good match for a 10 to 16 GPM pump on a 30/50 switch, or a household that runs irrigation and indoor fixtures together. It gives a meaningful runtime jump over a 20 gallon tank without stepping up to an 86 gallon footprint.
It also fits owners replacing an older Amtrol tank of the same model, since the dimensions and connection layout are unchanged. Most of the reviews on this listing are exactly that like-for-like swap.
Where this tank disappoints
The 47 inch height is a real constraint. In a low-ceiling crawlspace or a closet installation this tank simply does not fit, and discovering that after delivery is a common complaint.
A minority of owners report diaphragm failure inside about three years and describe warranty service as needing pre-authorisation with prorated cost. If you want a longer warranty window, keep an eye on your air charge annually, since a low charge is what wears diaphragms fastest.
4. Water Worker HT-30B – Best for Tight Installation Spaces
WaterWorker HT-30B Vertical Pressure Well Tank, 30-gallon tank with 26-gallon capacity, Blue
26 gal in a 30 gal shell
15 in diameter
Welded 1 in FNPT elbow
5 year warranty
Pros
- Narrow 15 inch diameter fits where larger tanks will not
- Factory-welded base elbow fits the standard tank tee
- Named direct replacement for earlier HT-30B models
- NSF/ANSI 61 listed liner and seamless butyl diaphragm
- Several buyers found the factory pre-charge already correct
Cons
- Listed weight of 41 pounds is heavy for its size
- Base connection is buried under the shell on a vertical mount
- Preset air charge often needs correcting after delivery
Physical size is the deciding factor for a lot of pump rooms, and this tank wins that category outright. At 15 inches across and 39 inches tall it is narrower than most tanks in its gallon class, and owners repeatedly single out that diameter as the reason it fit their well area.
The welded base elbow is a nice piece of engineering for a repair job. Because the 1-inch FNPT elbow is factory welded to the shell, there is no separate pipe nipple to corrode through or to leak at the thread.
The most common owner report is a straightforward improvement in steadiness of pressure after installation, with fewer pump starts. That is the tank doing exactly what it should.
Two things to plan for. At 41 pounds listed weight, moving it needs two people, and on a vertical mount the connection sits directly under the shell, so swapping it later is more disruptive than a horizontal unit where the fitting stays reachable.
Is the Water Worker HT-30B right for your pump?
Pick this tank if you have measured your space and a 20-gallon shell will not clear, or if you are replacing an existing Water Worker model and want the plumbing to stay exactly as it is. It covers pumps in roughly the 7 to 12 GPM range.
It is also a good fit for an outdoor or semi-exposed pump house, because the high gloss enamel finish holds up to weather better than a bare shell.
Where this tank disappoints
Owners in hot, humid climates report diaphragm degradation after six to nine years, which is faster than the warranty window. Check the air charge once a year and top it up with a bicycle pump.

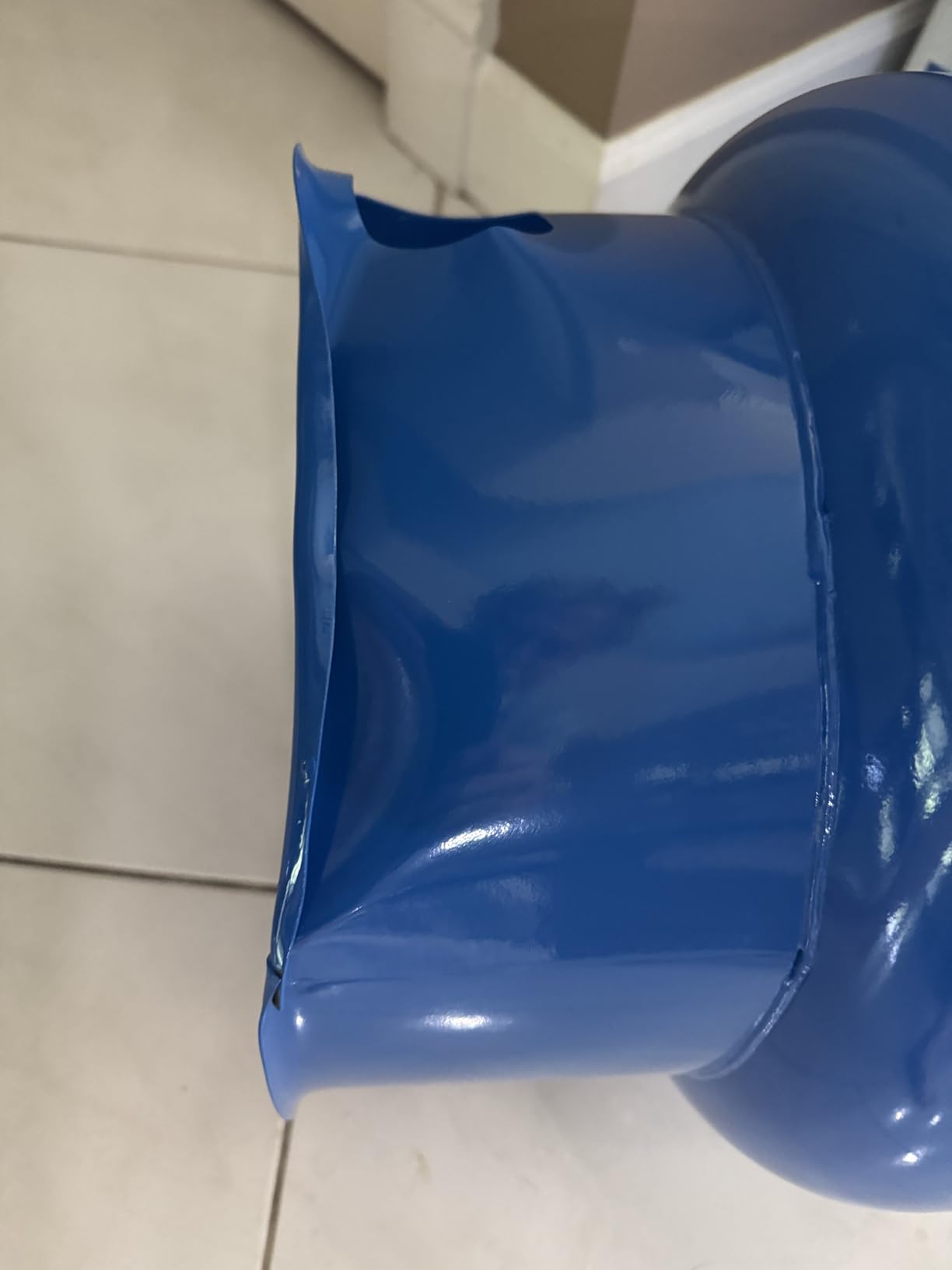

Some units arrive dented because of thin packaging, so open and inspect before signing for the delivery. Cosmetic dents do not affect function but are worth documenting.

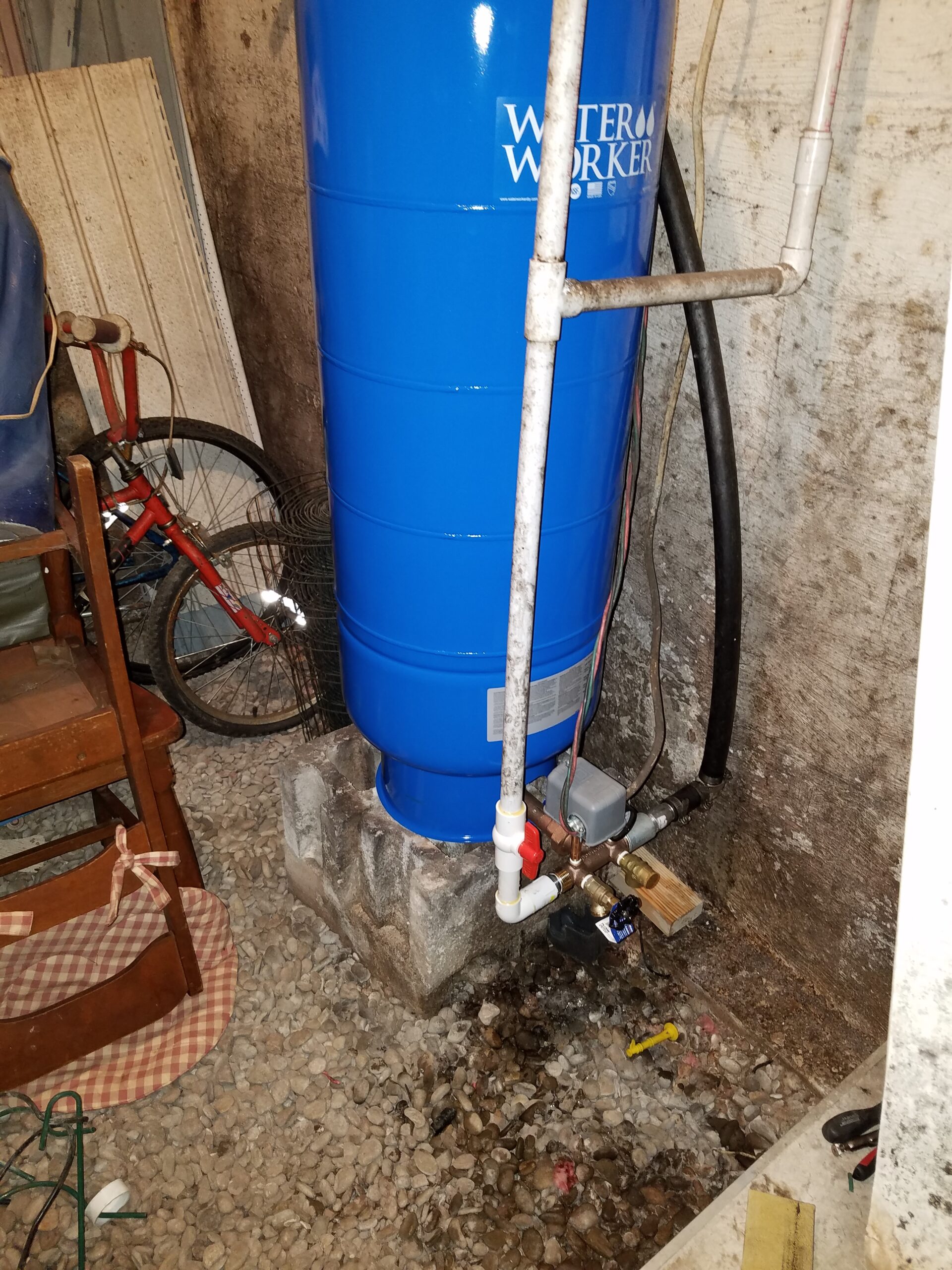

5. Water Worker HT-32B – Best 32 Gallon Replacement
Water Worker HT-32B Well Tank, 32 GAL Capacity, 1 in FNPT
32 gal capacity
1 in FNPT connection
Steel shell
Model HT-32B
Pros
- Largest capacity among the Water Worker vertical models
- HT-32B is a widely available service part with a large installed base
- Steel construction suits standard well pump switches
- 1 in FNPT matches most existing plumbing
Cons
- Lowest rating among the well tanks here at 4.3 with 11 percent one-star reviews
- Sparse published specification detail
- Listed manufacturer weight is inaccurate
This is a capacity play with a caveat. The 32 gallons of shell volume is the largest in the Water Worker vertical line, and for a household that wants drawdown headroom without stepping up to a 60 or 86 gallon footprint, it does the job.
The HT-32B is manufactured under the Water Worker and Amtrol partnership and has a very large installed base, which is a practical advantage. If a service part or a matching liner ever becomes hard to source, you are unlikely to hit that wall.
What holds it back is transparency rather than function. The published specification detail on this listing is thin, and the listed weight figure is plainly wrong, which makes it harder to plan a handling job or a mounting base.
The rating also lags the rest of this list at 4.3, with 11 percent one-star reviews. Reviewers on the negative side point to shorter-than-expected diaphragm life rather than any fault in pressure performance.
Is the Water Worker HT-32B right for your pump?
It suits a household on a 10 to 12 GPM pump that wants more runtime than a 30 gallon tank provides, and it is the natural pick if you already own Water Worker fittings and want the same look and footprint.
The 1-inch FNPT connection means you can almost certainly reuse your existing tank tee, which removes the most annoying part of a tank swap.
Where this tank disappoints
At 4.3 stars with the second-highest share of one-star reviews, service life is the weak point. Owners mention diaphragm and liner failures sooner than the warranty suggests.
The listing itself gives you very little to work with, so measure the diameter and confirm the base clearance yourself rather than trusting the published figures. If you want better published data and a stronger rating, the Amtrol WX-203 covers the same gallon range.
6. Water Worker HT20HB Horizontal 20 Gallon – Best Horizontal Install
WaterWorker HT20HB Water Worker Ht-20Hb Horizontal Pre-Charged Well Tank, 20 Gal, 1 in Mnpt, 100 Psi, Steel, 20 Gallon
20 gal horizontal
1 in MNPT rated to 100 psi
Top pump mounting plate
NSF/ANSI 62 listed
Pros
- Only horizontal tank in the roundup
- Side connection keeps the fitting reachable for service
- Top plate lets a shallow well pump mount directly on the tank
- Polypropylene liner with a seamless butyl diaphragm
- Pressure gauge port keeps water hammer off the plumbing
Cons
- Pump mounting plate is held by one Allen bolt and moves under load
- Diaphragm and pre-charge failures reported around four years
- Warranty service is described as confusing
A horizontal tank solves a different problem from a vertical one. If you have a shallow well pump with a limited ceiling height, or a pump room where you cannot stand a 30-inch-plus shell upright, this is the shape that fits.
The serviceability argument is the strongest part. On a horizontal unit the connection faces outward, so when the tank eventually fails you unbolt a union and swap it without tearing into the supply piping, which owners describe as a genuine time saver.
The top mounting plate is genuinely useful for shallow well setups, because the pump bolts straight to the tank and the whole assembly becomes one unit. There is even a two-pronged plastic clip inside the 1-inch nipple that stops the bladder protruding when the system is depressurised.
The rating is the lowest in this roundup at 4.2, and the reason is durability rather than function. Multiple owners report diaphragm or pre-charge loss at around four years against a five year warranty claim, and the warranty process is described as murky.
Is the Water Worker HT20HB right for your pump?
Choose it for a shallow well jet pump in a low-ceiling space, or any install where you need the connection accessible without dismantling the plumbing. Its 100 psi rating comfortably covers a standard 30/50 or 40/60 switch.
It is a sensible pick for a mobile home, outbuilding or off-grid cabin where the pump and tank need to sit low and stay serviceable.
Where this tank disappoints

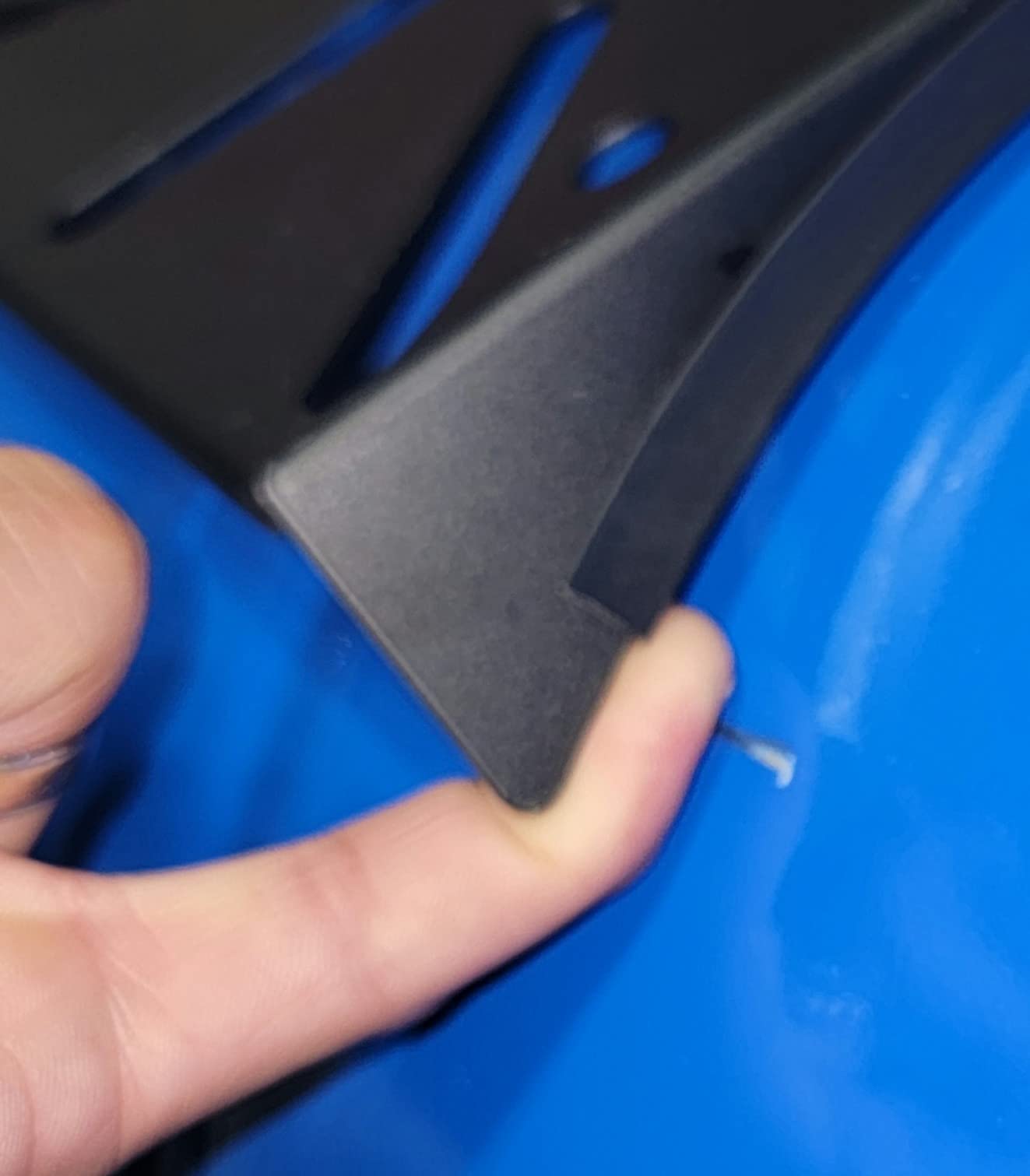

The single Allen bolt holding the pump plate is a design choice installers do not love, since the plate can shift under pump load and the hardware is not a standard size.
With diaphragm life reported around four years on some units, budget for a possible replacement inside a decade, and confirm the warranty route with the manufacturer before you install it yourself.
7. WellMate WM-6 – Best Fiberglass Tank for Corrosive Water
Wellmate WM-6 / WM0075 QC Captive Air and Retention Fiberglass Tank, Quick Connect (19.8 gal / 75 LTR.)
19.8 gal / 75 L fiberglass shell
Quick Connect air cell
16 in diameter
Pros
- Fiberglass shell cannot rust
- Greater drawdown than a steel tank of the same nominal size
- Air cell can be serviced in the field
- Light at 26 pounds for one-person installation
- Extended labour warranty available for homeowners
Cons
- Wellmate has a smaller service network than Amtrol or Water Worker
- Fiberglass shells can crack if dropped or struck
- Replacement air cells are ordered separately
If your well water is sulfurous, full of iron bacteria, or simply aggressive enough to pit a steel shell from the outside, material choice stops being a preference. This is the only non-steel pressure tank in the roundup, and it is here because that failure mode is real and slow.
The Quick Connect air cell is the feature that changes the economics of ownership. When the cell eventually fails you can replace just the cell in the field instead of replacing the whole tank, which turns a full replacement into a minor service job.
Because there is no steel shell to corrode and no steel paint to chalk in a damp location, this tank also suits coastal homes and crawlspace installations where condensation is constant. If iron and sulfur are a problem in your water, our whole-house filtration guide covers the treatment side of the system.
The honest limit is that review volume is modest at 141 reviews, so long-term durability data is thinner than for the steel brands. Buyers who own them tend to be enthusiastic about the material choice and quiet about anything else.
Is the WellMate WM-6 right for your pump?
It fits pumps in roughly the 3 to 8 GPM range where a 20 gallon shell is the right volume, and it suits anyone replacing a tank that failed from outside-in corrosion rather than a ruptured bladder.
If you are installing in a damp crawlspace, coastal air, or on a well with iron bacteria, this is the shell material that will still look good in fifteen years.
Where this tank disappoints
Fiberglass has no forgiveness on impact. Drop it during installation and you can crack the shell, which is why the installability advantage applies to a planned one-person job rather than a rushed one.
The service network is smaller than for Amtrol or Water Worker, and if a replacement air cell is ever needed you are ordering it separately, so keep the model number on hand before you start.

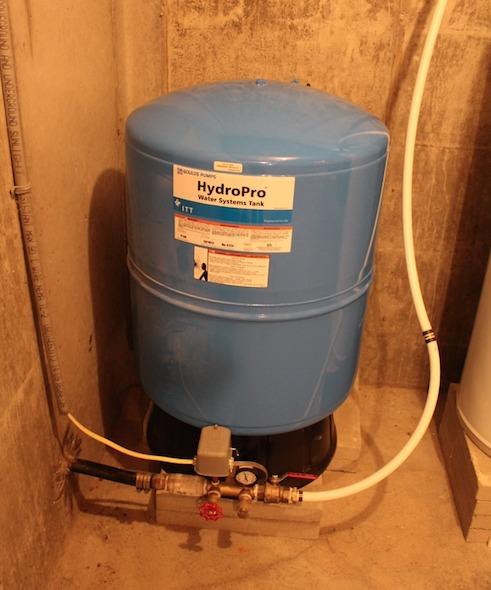

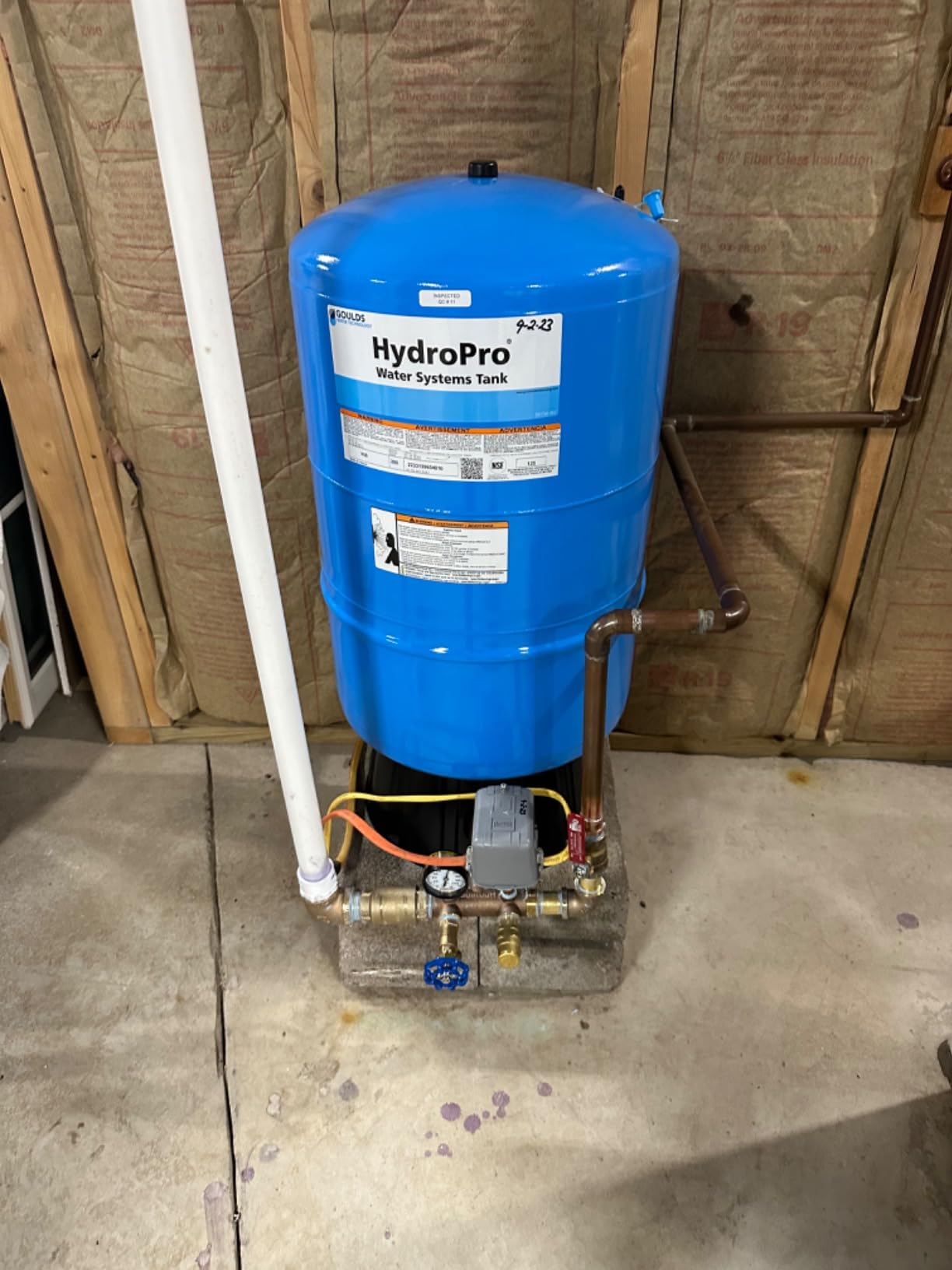

8. Goulds V60 HydroPro Tank Kit – Best Complete Install Kit
Goulds V60 HydroPro pressure tank With or Without brass tank tee kit + UNION + Valves Square D fsg2 40-60 (V60Tank + 1″x11″ Tee Kit + Union + Valves)
V60 tank with brass tank tee
Union and valves included
Square D FSG2 40-60 switch
5 year tank warranty
Pros
- Complete kit with brass tee
- union and valves
- Brass tank tee resists corrosion better than cast iron
- Non-corroding plastic base will not fail at the floor line
- Direct replacement for older V60 tanks
- Tank arrives factory pre-pressurised
Cons
- Pressure switch is fixed at 40-60 unless the seller is contacted
- Higher cost than a bare tank partly for the fittings
- Switch configuration cannot be chosen at checkout
Almost every tank in this roundup arrives as a bare vessel, and the fittings are your problem. This one does not, and for a first-time well owner replacing a tank without a truck and a parts run, that changes the whole job.
The kit includes a 1-inch by 11-inch lead-free brass tank tee, a union and valves, plus a Square D FSG2 40-60 pressure switch. A brass tee is also a real upgrade over the cast iron tees that ship with bare tanks and eventually rust through.
Owners replacing a decades-old V60 describe the whole swapover as about half an hour with the tank already pressurised out of the box. That is the fastest installation path in this roundup.
The friction point is the pressure switch. It is fixed at 40-60 unless you contact the seller for a 30-50 or M4 variant, and you cannot choose at checkout, so factor that message into your order if your system runs on a 30/50 switch.
Is the Goulds V60 kit right for your pump?
It makes the most sense for a household on a 30 to 60 GPM pump feeding a whole-home system, or a DIY install where having the tee and switch in one box removes the most common source of delays.
Because the switch is a standard Square D FSG2 40-60, it also suits anyone who prefers a wider pressure band that reduces cycling on marginal well yield.
Where this tank disappoints
You are paying more than a bare steel tank, and part of that premium is simply the brass hardware. If your existing tee and valves are sound, buying them again is money you do not need to spend.
The fixed switch configuration is the part to check before ordering. Buying a 40-60 switch when your pump is sized for 30/50 does not improve anything, and changing it afterwards means another purchase.
9. Red Lion RL20A – Best 20 Gallon Tank for 30/50 Switches
Red Lion RL20A, Vertical Pre-Charged Well Pressure Tank, 20 gallon
20 gal vertical
7.2 gal drawdown at 30/50
304 stainless steel connection
1 in FNPT
28 lb
Pros
- 304 stainless water connection resists corrosion
- Certified NSF/ANSI/CAN 61 and CAN 372 for drinking water
- Thermoplastic base lifts the tank off the floor
- Most DIY installers complete it with basic tools
- One owner reports a same-brand tank still working after 17 years
Cons
- Arrives at a 20 PSI transport charge that must be topped up
- Wider 17 inch diameter than the 15 inch steel tanks
- Threaded FNPT elbow rather than a quick connection
The Red Lion RL20A publishes a real drawdown figure where most 20 gallon tanks publish nothing. At 7.2 gallons of drawdown between 30 and 50 PSI, you can size against it directly instead of guessing.
That number also frames what it handles: about six fixtures running at the same time. For most single-family homes that is genuine headroom rather than a token buffer.
The 304 stainless steel water connection is the design decision that extends its life. Corrosion at the base elbow is one of the most common reasons a steel tank fails first, and stainless removes that failure point entirely.
The thermoplastic base does something quieter but useful: it lifts the tank off the floor, so condensation runs off instead of pooling against the pad and staining or corroding the base.
Is the Red Lion RL20A right for your pump?
It suits pumps in the 5 to 8 GPM range running a 30/50 switch, and the certification to NSF/ANSI/CAN 61 and CAN 372 makes it an easy choice for drinking water applications where certification matters to you.
The 17-inch diameter is wider than the 15-inch Water Worker shells, so measure your clearance, especially in a crawlspace where the base connection needs room for a wrench.
Where this tank disappoints
It arrives at a 20 PSI transport charge and is unusable until you top it up with a bicycle pump to 2 PSI below your switch cut-in. Owners mention this every time, so plan ten minutes and a bike pump into the install.
Review volume at 110 reviews is thinner than the steel leaders, so the long-term record is less established than the name suggests.

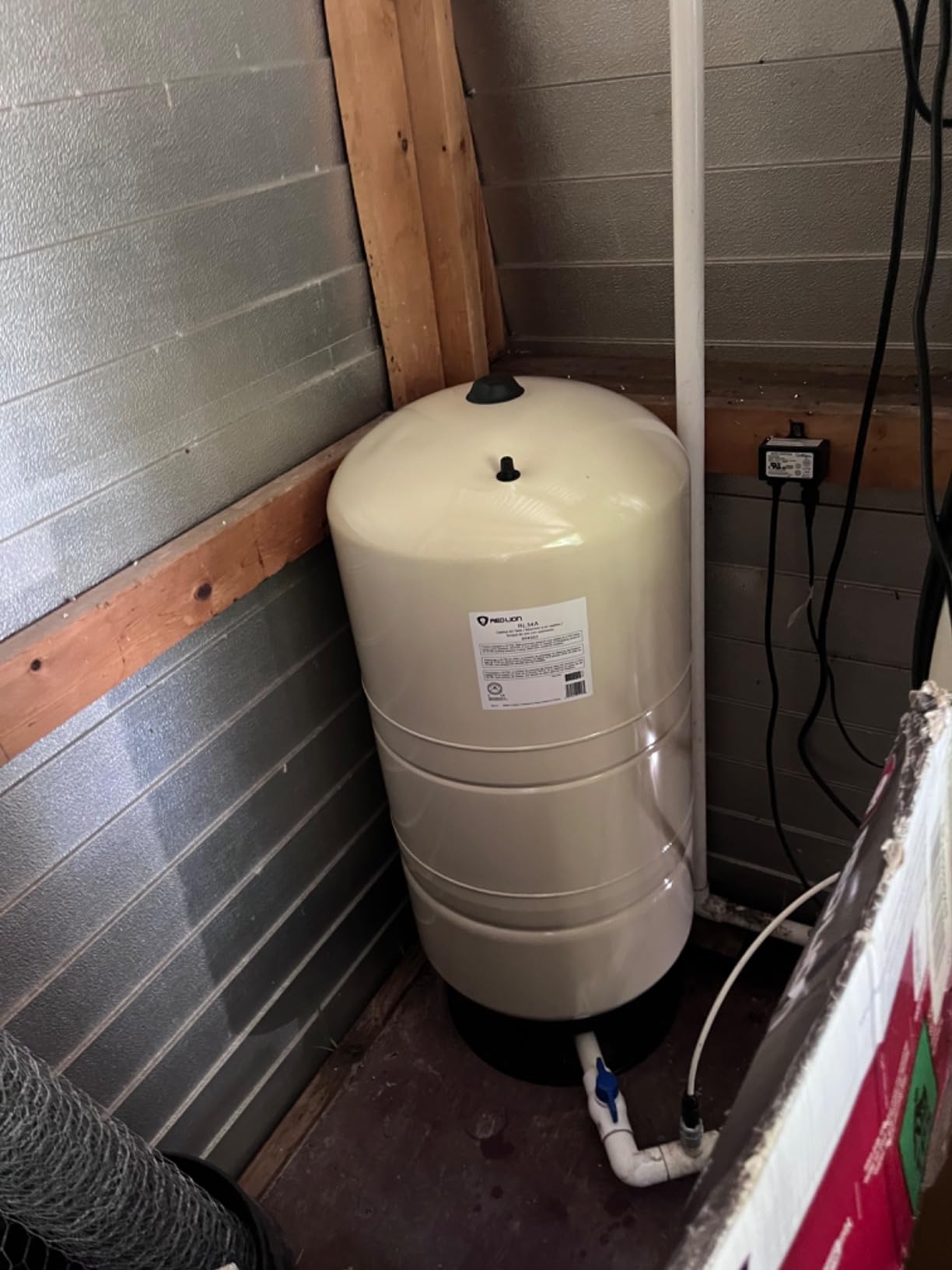

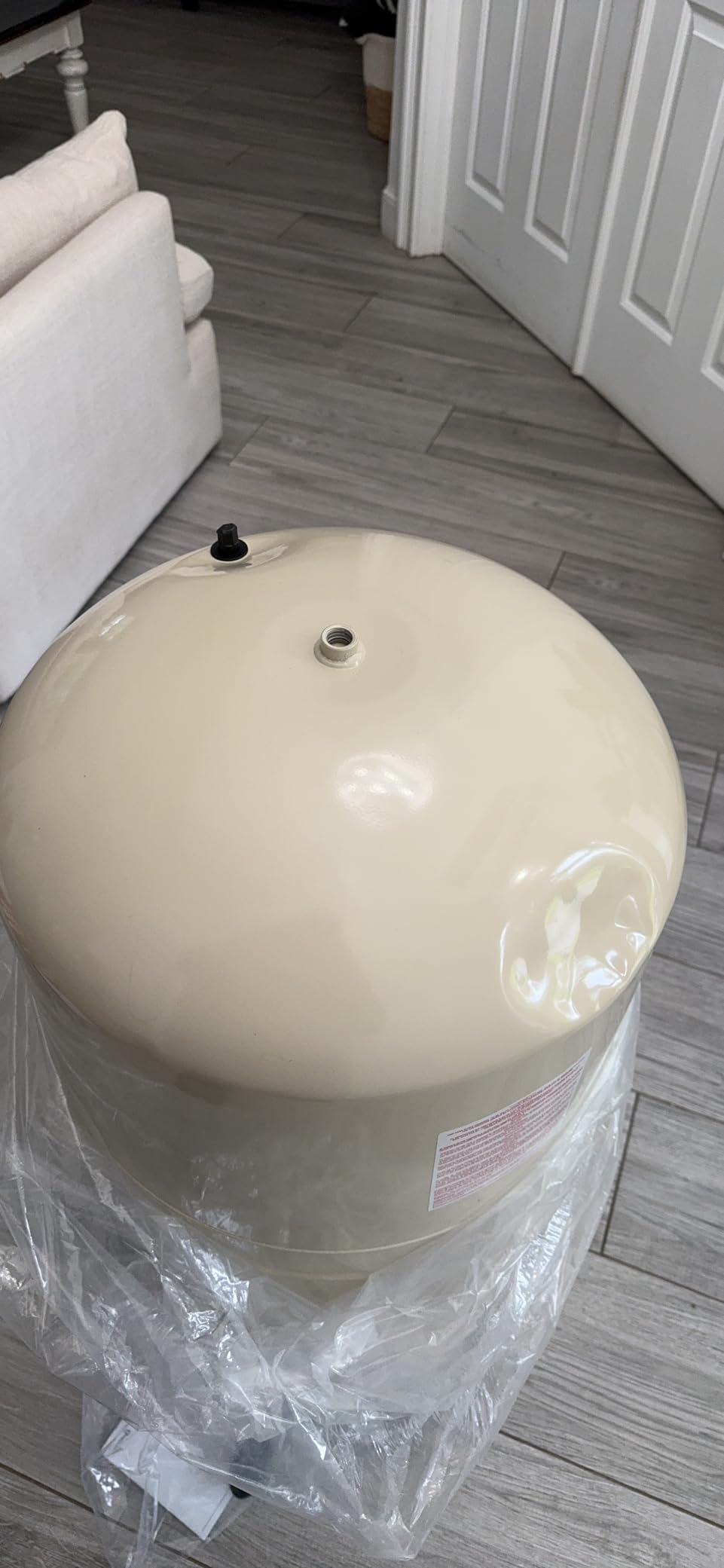

10. Red Lion RL34A – Best Tank for Many Simultaneous Fixtures
Red Lion RL34A, Vertical Pre-Charged Well Pressure Tank, 34 gallon
34 gal vertical
10.8 gal drawdown at 30/50
About 11 fixtures
304 stainless
Pros
- Largest published drawdown in this roundup at 10.8 gallons
- Handles roughly 11 fixtures running at once
- 304 stainless connection resists corrosion
- Thermoplastic base isolates the tank from the floor
- Drinking water certified to NSF/ANSI/CAN 61 and 372
Cons
- Widest footprint here at 21.65 inches square
- Arrives at a 20 PSI transport charge that must be raised
- Higher share of one-star reviews at 8 percent
- More capacity than a household without irrigation needs
If the question is how much drawdown you can get from a tank that still fits through a normal doorway, the RL34A answers it. At 10.8 gallons of drawdown between 30 and 50 PSI, it delivers roughly half again what a 20 gallon tank delivers.
The manufacturer states it supports about 11 fixtures running simultaneously, which covers a large household plus irrigation on the same pump without the pump starting constantly.
The rest of the design matches the RL20A: 20-gauge steel shell, variable geometry butyl diaphragm, 304 stainless connection and a thermoplastic base that keeps the tank off the floor.
At 21.65 inches square it is the widest footprint in the roundup, so the pump pad needs to be planned before delivery rather than after.
Is the Red Lion RL34A right for your pump?
It is a good match for a 12 to 16 GPM pump, a household running two bathrooms plus a laundry plus irrigation, or any system where short cycling is happening with a 20 gallon tank already in place.
Because it is a vertical tank with a base connection, make sure the pump pad is wide enough for a wrench to reach the elbow for future service.
Where this tank disappoints
At 8 percent one-star reviews it is not the smoothest record in this group, and the complaints cluster around transit damage and the extra bulk of the wider shell.
If your household does not need the extra capacity, you are paying for drawdown you will never use, and the narrower RL20A does the same job in a smaller footprint.
11. Red Lion RL4A 4 Gallon Inline – Budget Pick for Water Hammer
Red Lion RL4A,In-line Pre-Charged Well Pressure Tank, 4 gallon
4.5 gal inline
1.5 gal drawdown at 30/50
3/4 in MNPT
7.5 lb
304 stainless connection
Pros
- Lightest tank here at 7.5 pounds for tight or elevated spaces
- Reduces water hammer and pressure spikes in boosting systems
- Can be installed in series or parallel to add capacity
- Stainless connection and NSF/ANSI/CAN 61 and 372 certification
- 4.7 star rating from 45 reviews
Cons
- Only 1.5 gallon of drawdown
- 3/4 in MNPT connection is smaller than the 1 in fittings on larger tanks
- Arrives at a 20 PSI transport charge
- Small review base limits long-term data
This is not a primary well pressure tank, and treating it as one is how people end up disappointed. At 1.5 gallons of drawdown between 30 and 50 PSI, the RL4A is a secondary device for smoothing pressure, not for carrying a household.
Where it earns its place is water hammer. On a booster pump or a municipal supply line, an inline pre-charged tank absorbs the pressure spikes that cause knocking in the piping and wear on faucet valves.
At 7.5 pounds and 11 inches across it is the easiest tank in the roundup to install, which matters if you are fitting it under a sink cabinet, in a mechanical room, or high on a wall.
It also installs in series or parallel, so two of them can be combined to double the drawdown and the smoothing effect if you need more than 1.5 gallons.
Is the Red Lion RL4A right for your pump?
Choose it as a secondary tank on a boosting system, as a water hammer fix, or as a supplementary unit in series with an existing primary tank that is already correctly sized.
The 3/4-inch MNPT connection means it fits existing 3/4-inch lines without an adapter, which is the reason many owners pick it over a 1-inch inline alternative.
Where this tank disappoints
Do not install it as your only pressure tank on a well pump. 1.5 gallons of drawdown will not slow cycling on any meaningful pump, and it will leave you chasing a problem the device was never built to solve.
The connection size is also smaller than the 1-inch fittings used by the larger tanks in this roundup, so it cannot simply replace a main pressure tank in place.

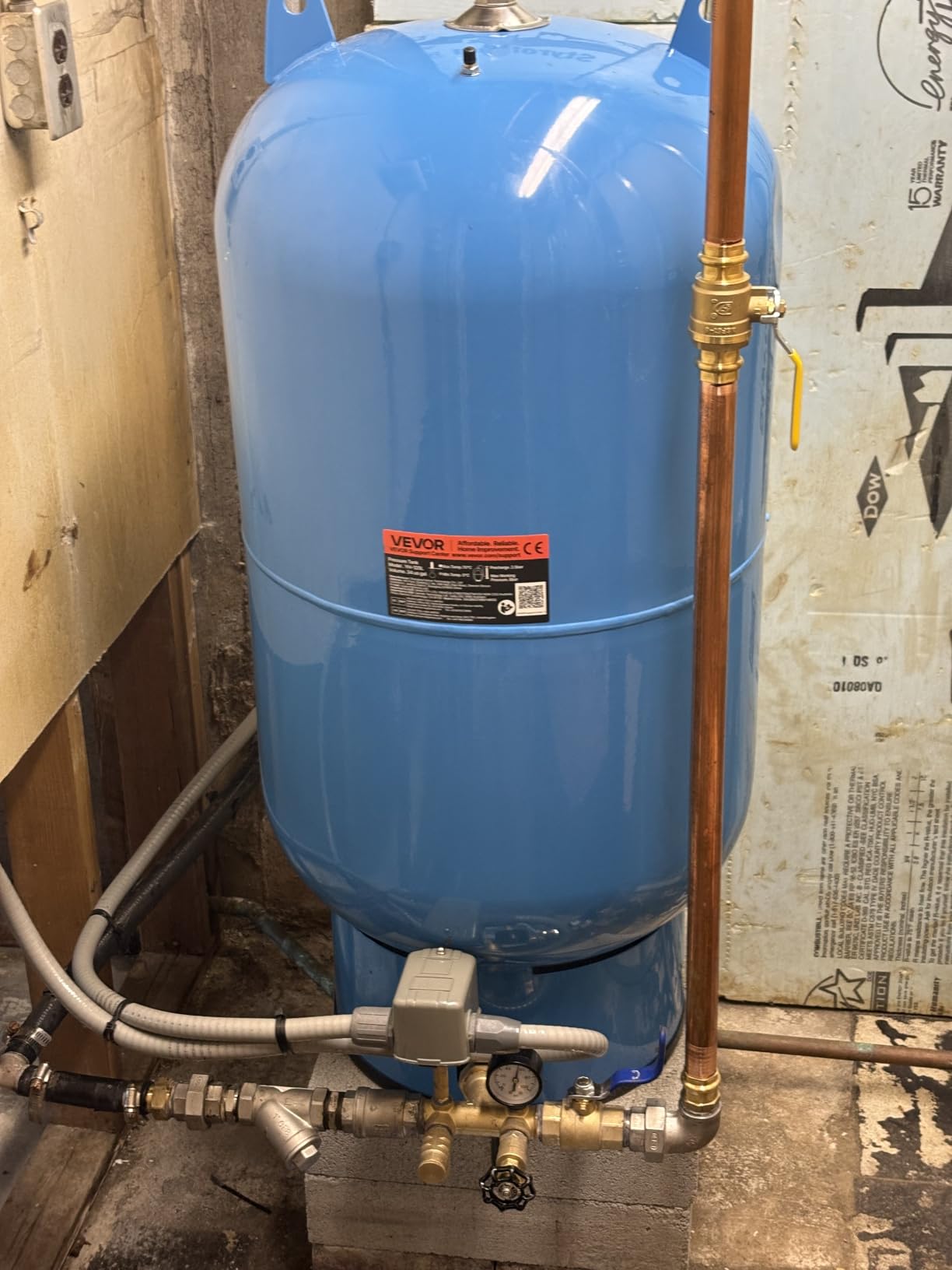

12. VEVOR 20 Gallon Vertical Tank – Best for Non-Potable and Irrigation Supply
VEVOR 20-Gallon Vertical Well Pressure Tank, Pre-Charged Pressurized Water Tank for Well Pumps, Heavy-Duty Carbon Steel Water Storage Container for Home, School, Farm & Irrigation Systems
20 gal vertical
1.2 mm carbon steel
Pre-charged to 29 PSI
Rated to 87 PSI
1 in NPT
Pros
- Highest average rating in this roundup at 4.8
- Thicker 1.2 mm carbon steel than most competitors
- 87 PSI rating exceeds a typical well switch range
- 1 inch NPT connector fits common plumbing
- Suited to school
- farm and irrigation supply
Cons
- Explicitly not suitable for drinking water
- Not frost-proof
- Relief valve is not included
- No NSF certification
- Smallest review base here at 39 reviews
This tank is on the list for a specific job, and reading the listing carefully before you buy matters more here than anywhere else. The manufacturer states plainly that it is not suitable for drinking water and not frost-proof, and it carries no NSF certification.
For a livestock watering trough, a garden irrigation loop, a school supply line or any non-potable application, that is completely acceptable. For a domestic well supplying your kitchen sink, it is the wrong product.
The build is heavier than it looks. At 1.2 mm the carbon steel shell is thicker than many competing tanks, which is why it holds an 87 PSI internal rating and why the shape stays round under pressure.
The 87 PSI rating sits comfortably above a standard 30/50 or 40/60 switch, so there is no risk of the switch outrunning the tank.
Is the VEVOR 20 gallon tank right for your pump?
It suits irrigation and booster applications where the water is not destined for a drinking glass, and where the tank lives in a heated pump house or is drained seasonally to avoid freeze damage.
Because it arrives pre-charged to 29 PSI, you will still want to confirm that charge against your switch, and you need a separate relief valve since none is supplied.
Where this tank disappoints

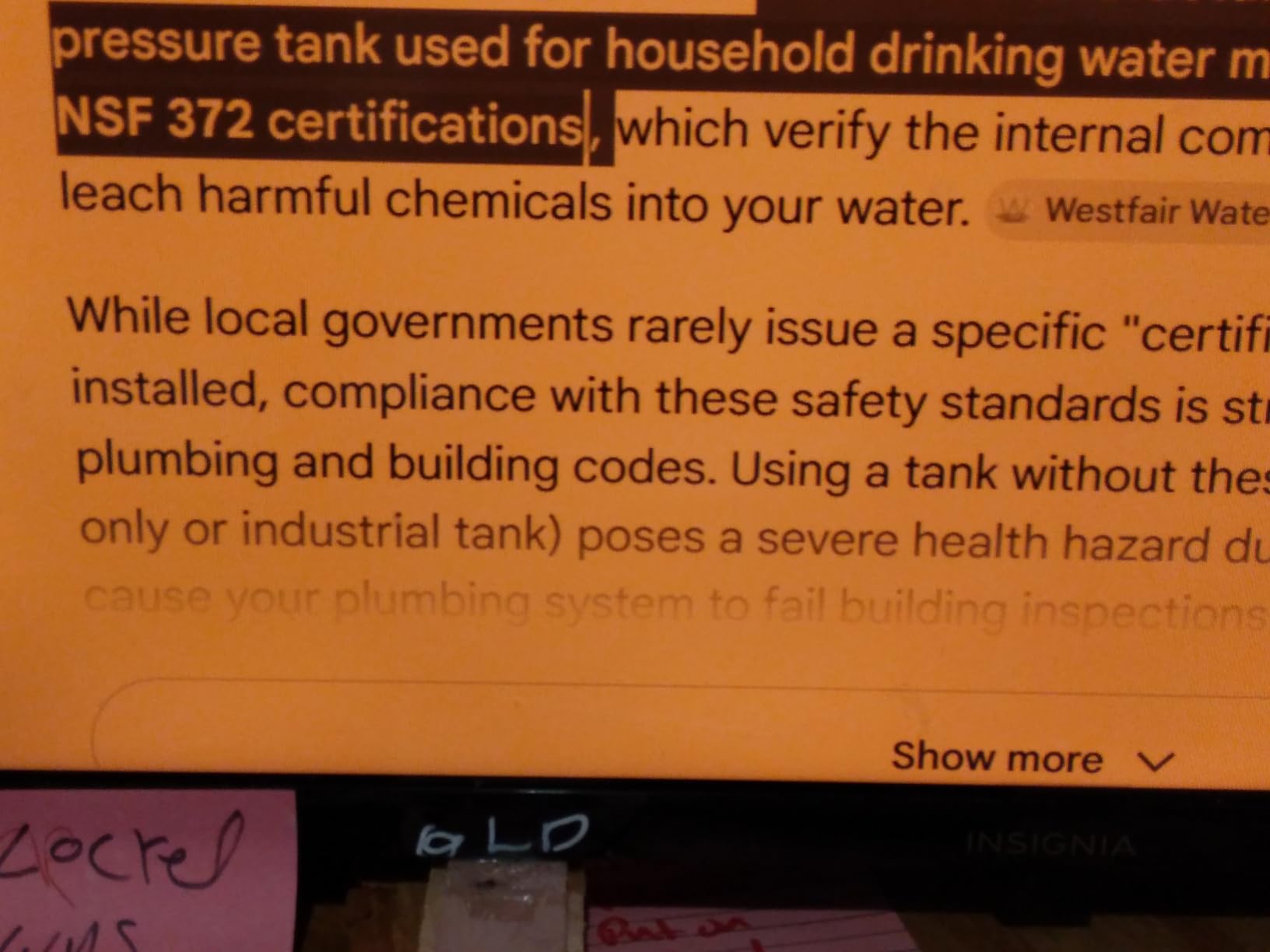

The non-potable rating is a hard limit, not a formality. Do not put this tank on a drinking water line, and do not install it in an unheated northern pump house.
With 39 reviews it has the smallest sample in this roundup, so the 4.8 star rating reflects early owner satisfaction rather than a decade of field history. Weight your choice accordingly.
Diagnose Before You Buy a New Tank
A surprising share of the “my tank is bad” posts on well forums turn out to be something else entirely. Before you spend anything, run through these four checks, because three of them cost nothing.
Check the air charge. Turn the breaker off, open a faucet until the tank reads zero on the gauge, then check the Schrader valve with a tire gauge. If it sits well below your cut-in pressure, a bicycle pump fixes it for free.
Test for a waterlogged tank. Disconnect the system, then tip the tank. If water sloshes where air should be, the diaphragm has failed and the tank needs replacement.
Look for a runaway pressure switch. If your pressure climbs to 80 or 90 PSI and stays there, the switch has failed to shut off. That pressure spike is what destroys an otherwise brand-new bladder.
Rule out a drop pipe problem. A pump that runs continuously with a healthy tank is often circulating water back up a cracked drop pipe rather than short cycling.
A low-yielding well is a fifth case that no pressure tank can solve. If your pump recovers less than a few GPM after several minutes of running, the answer is a storage reservoir or a deeper well, not a bigger pressure vessel.
How to Set Pre-Charge Pressure and What Comes in the Box
Set the pre-charge to 2 PSI below your pressure switch cut-in pressure. If your switch cuts in at 30 PSI, the tank charge is 28 PSI. Setting it too high creates a dead zone where the pump pushes against a hard air cushion, and setting it too low causes short cycling and a fast bladder failure.
Measure it with the water gone. Disconnect the system and open a faucet until the tank gauge reads zero before reading the Schrader valve, because any reading with water still in the tank is meaningless. Then recheck once a year, since air slowly permeates through butyl rubber.
Two habits will keep you honest. Never remove the air valve cap, because doing so can void the warranty on several brands in this roundup. And keep the tank off the floor where you can, since a wet pad under a steel shell accelerates the corrosion that ends its life.
Almost no tank in this category arrives as a complete install. The tank tee, the brass nipple or elbow, the pressure relief valve and the pressure switch are almost always sold separately, so budget a fittings list before you order. If you want every piece in one purchase, the Goulds V60 kit earlier in this roundup is the exception.
Safety note: the pressure switch is a line-voltage device. Setting the tank charge with the breaker off is straightforward, but any wiring work belongs to a licensed electrician, and depressurise the system fully before you cut into any fitting.
Frequently Asked Questions
What size well pressure tank do I need for my well?
Size by drawdown, not by the gallon number on the shell. Multiply your pump flow rate by the run time you want, then divide by the acceptance factor, which is about 0.28 on a 30/50 switch and 0.25 on a 40/60 switch. A 10 GPM pump running one minute needs about 36 nominal gallons, which means a 44 gallon class tank.
Which brand of well pressure tank is considered the best?
Among the brands we reviewed, Amtrol and its Well-X-Trol line has the strongest consensus among plumbers and long-time owners, and its 7 year warranty is the longest in this roundup. Within the brands we tested, the Amtrol WX-202 rated 4.7 stars from 656 reviews, and the Water Worker HT-20B rated 4.6 stars from more than 1,200 reviews.
What PSI should a well pressure tank be set to?
Set the pre-charge to 2 PSI below your pressure switch cut-in pressure, so 28 PSI on a 30/50 switch and 38 PSI on a 40/60 switch. Turn the breaker off and drain the tank to zero pressure before reading the Schrader valve with a tire gauge, and recheck the charge once a year.
What causes a well pressure tank to short cycle?
Four causes account for nearly every case: an air charge below the cut-in pressure, a waterlogged or ruptured diaphragm, a tank that is too small for the pump flow rate, or a failed pressure switch that climbs past 80 or 90 PSI. A continuously running pump with a healthy tank is a different problem, usually a drop pipe recirculation leak.
How do I know if my well pressure tank bladder is bad?
Disconnect the system and tip the tank. Water sloshing inside where the air cushion should be means the diaphragm or bladder has failed and the tank needs replacing. You can also depressurise it and listen, or press the pin on the Schrader valve, since a failed membrane lets water push straight at the valve.
Is a 20 gallon pressure tank big enough for a house?
Yes for a household of two to four people on a pump of about 7 GPM or less. A 20 gallon vertical tank delivers roughly 5 to 6 gallons of usable water between pump starts on a 30/50 switch. If your pump is rated higher, the household short cycles, or you run irrigation, and you need a 30 to 44 gallon class tank instead.
Conclusion
The best water pressure tank for a well system is the one whose drawdown matches your pump’s flow rate at your switch setting, and none of the twelve picks above will fix a problem that is actually a low air charge, a failed switch or a cracked drop pipe. For most households the Water Worker HT-20B is the pick, with the Amtrol WX-202 behind it if you want the longer warranty.
Match the tank to your pump, set the charge 2 PSI below cut-in, and recheck it every year. If you are still short cycling after that, measure your well yield before you buy anything larger, because no pressure vessel will manufacture water your well cannot deliver.
For filtration and treatment questions around the same system, our whole-house filtration guide, reverse osmosis picks for drinking water and countertop reverse osmosis systems cover what comes after the pressure tank.
