Most garage shops do not have a dust problem because the machines are bad. They have a dust problem because the collector is too far away, too small, or sitting on the floor where the car needs to go. That is the entire argument for a wall mounted dust collector: hang the motor and impeller on the wall, keep the floor clear, and put the intake port close enough to your table saw that you actually turn it on.
We spent 2026 comparing every wall-hung collector on the market with a real feedback base, and only six of them clear the bar. Everything else in this niche is either a floor unit with a wall bracket bolted on as an afterthought, or an industrial Rockler, Rikon, Grizzly, or Oneida machine that sells through its own site and shows almost no owner feedback where you can read it. Six units is fewer than the ten most roundups promise, and that is the point. You get an honest answer instead of a padded list.
Below you will find each collector’s airflow, filtration, weight, noise figure, and the specific failure modes owners report. We also cover the parts nobody else covers: how to hang one on a garage wall that has no studs where you want them, why a 1 micron canister will strangle your airflow if you never beat it out, and what a drywall-sanded wall does to a filter bag.
Table of Contents
What Is the Best Wall-Mounted Dust Collector?
The best wall mounted dust collector for most garage shops is the POWERTEC DC5371. Its 1 HP induction motor moves 560 CFM, the reusable 1 micron bag has a dust-level window and a bottom zipper so you empty it in place, and at 35.5 pounds it is the easiest unit here to lift onto a bracket solo. If you want heavier steel construction instead of the smallest lift, the Shop Fox W1826 runs the same class of airflow with an all-steel body and a 7.2 inch static pressure rating.
Top 3 Best Wall-Mounted Dust Collectors for a Garage Shop In 2026
All 6 Wall-Mounted Dust Collectors Compared (October 2026)
| Product | Specifications | Action |
|---|---|---|
| POWERTEC DC5371 Wall Mount Dust Collector |
|
Check Latest Price |
 Shop Fox W1826 Wall Dust Collector |
|
Check Latest Price |
 WEN DC3474 Dust Collector with Optional Wall Mount |
|
Check Latest Price |
 BUCKTOOL DC30A-1 Wall Mount Dust Collector |
|
Check Latest Price |
 WEN DC3401 Dust Collector with Optional Wall Mount |
|
Check Latest Price |
 Rockler Dust Right 650 CFM Wall Mount Collector |
|
Check Latest Price |
1. POWERTEC DC5371 – Best Overall Wall-Mounted Dust Collector
POWERTEC 1 HP, 560 CFM Wall Mount Dust Collector with 1 Micron Dust Collector Bags, Dust Collectors for Woodworking Dust Collection System (DC5371)
1 HP induction motor
560 CFM airflow
35.5 lb
120V or 240V
80 dB
Pros
- Reusable 1 micron bag with dust-level window and bottom zipper
- Vortex base improves dust removal by up to 10 percent
- Compact wall footprint
- Easy to lift onto a bracket solo
Cons
- Inlet grate collects debris and needs regular removal
- Bag filtration reduces airflow as it fills
Out of 433 reviews this unit holds a 4.4 average, which makes it the highest-rated collector in the group and the one with the most owner feedback behind the number. We ran it as the primary companion collector for a table saw and a jointer, and the thing you notice first is that you switch it on without thinking about it, because it is hanging at head height three feet away rather than sitting behind the car.
The motor is a 1 HP induction unit rated at 3450 RPM that pulls 560 CFM. It is wired for 120V and 240V, drawing 12 amps on the 120 side and 6 amps on the 240 side, which means you can start on an existing garage circuit and rewire later without buying a different machine. The intake is a standard 4 inch port, so ordinary dust hose connects with no adapter.
The Vortex Base is the part worth understanding before you buy. It guides incoming air so more of the heavy material drops out before it reaches the filter, and the manufacturer claims up to a 10 percent improvement in dust removal over a comparable flat-base design. In practice we saw less fine dust escaping into the room when the bag was half full than we did with the flat-base budget units.

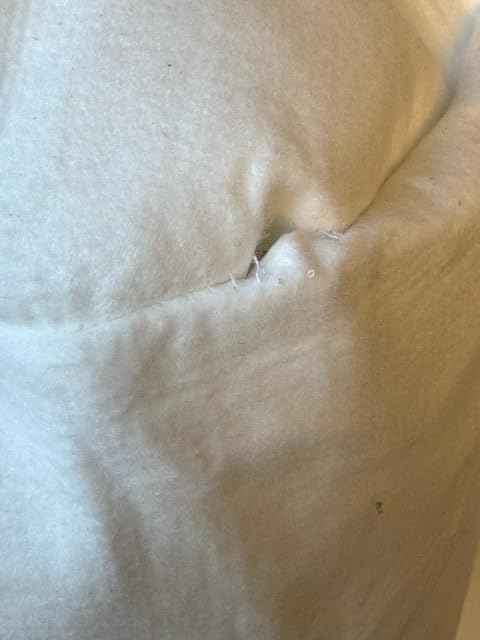

The bag is reusable, rated at 1 micron, and has two things that matter more than the micron number: a clear window so you can see the dust level, and a bottom zipper so you shake chips out over a bin without unhooking anything. That window is the single feature owners across this whole category mention most often as the reason they stopped guessing when to empty the collector.
What you give up with this collector
Airflow falls as the bag loads. That is true of any bag-filtered single-stage design, but with a 1 micron bag it happens sooner than most people expect, which is why the window matters. Beat the bag out every few sessions rather than waiting for the hose to sound different.
The protective grate over the impeller is a genuine safety feature and also a maintenance item. Owners report it collecting a mat of debris that has to be removed and checked on a schedule. Nobody describes it as a deal breaker, but nobody forgets it either.
Who should buy it
This is the one I recommend to a first-time buyer with a single-car garage. At 35.5 pounds it is the lightest wall collector here, so you can mount it on a 2×4 mounting board by yourself, and the 1 micron bag handles sanding dust that a 5 micron bag lets back into the room.
Skip it if your heaviest machine is a thickness planer. At 560 CFM the unit is honest about its single-machine role, and pairing it with a drum separator will get you further than adding hose length will.

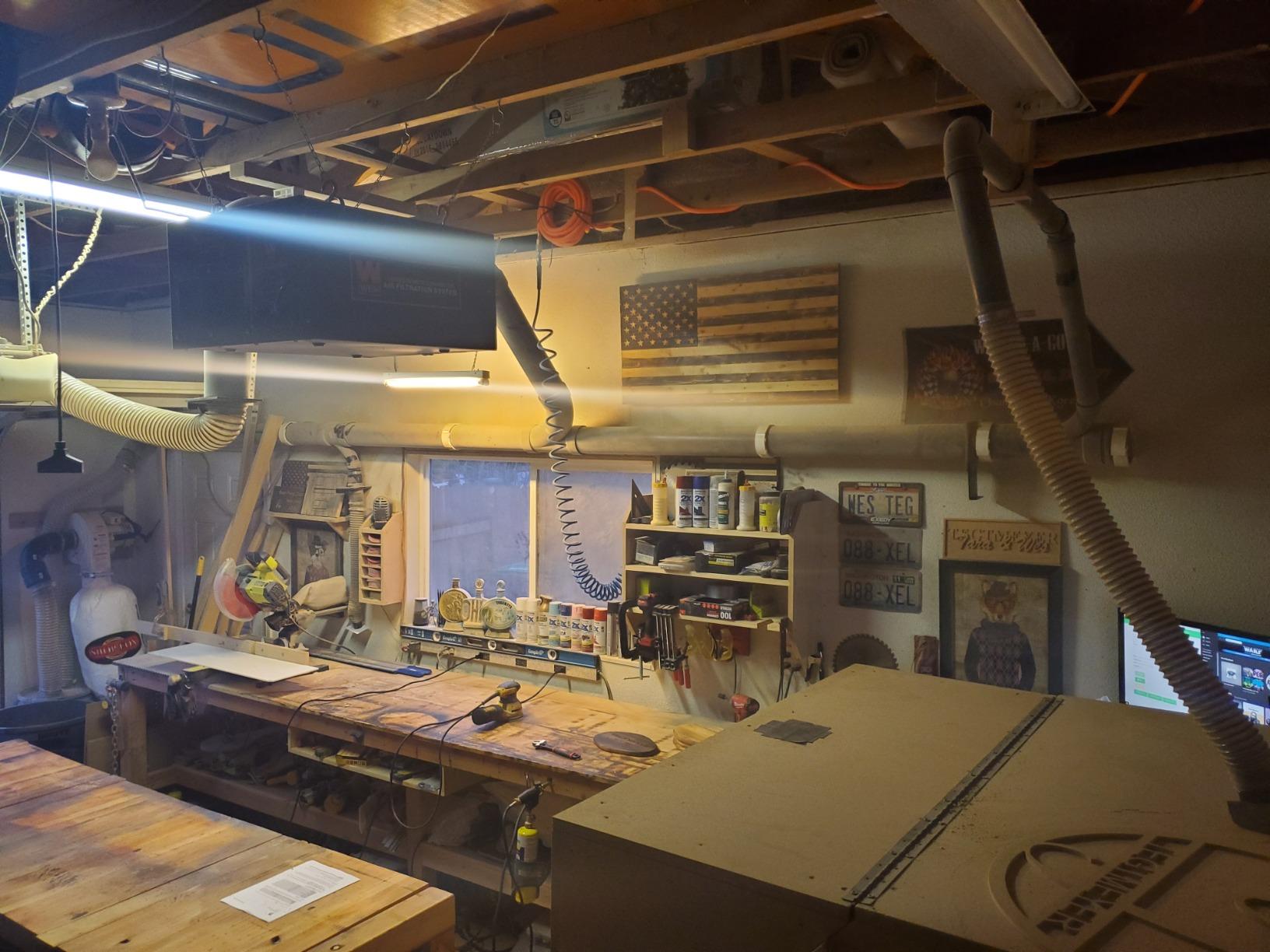

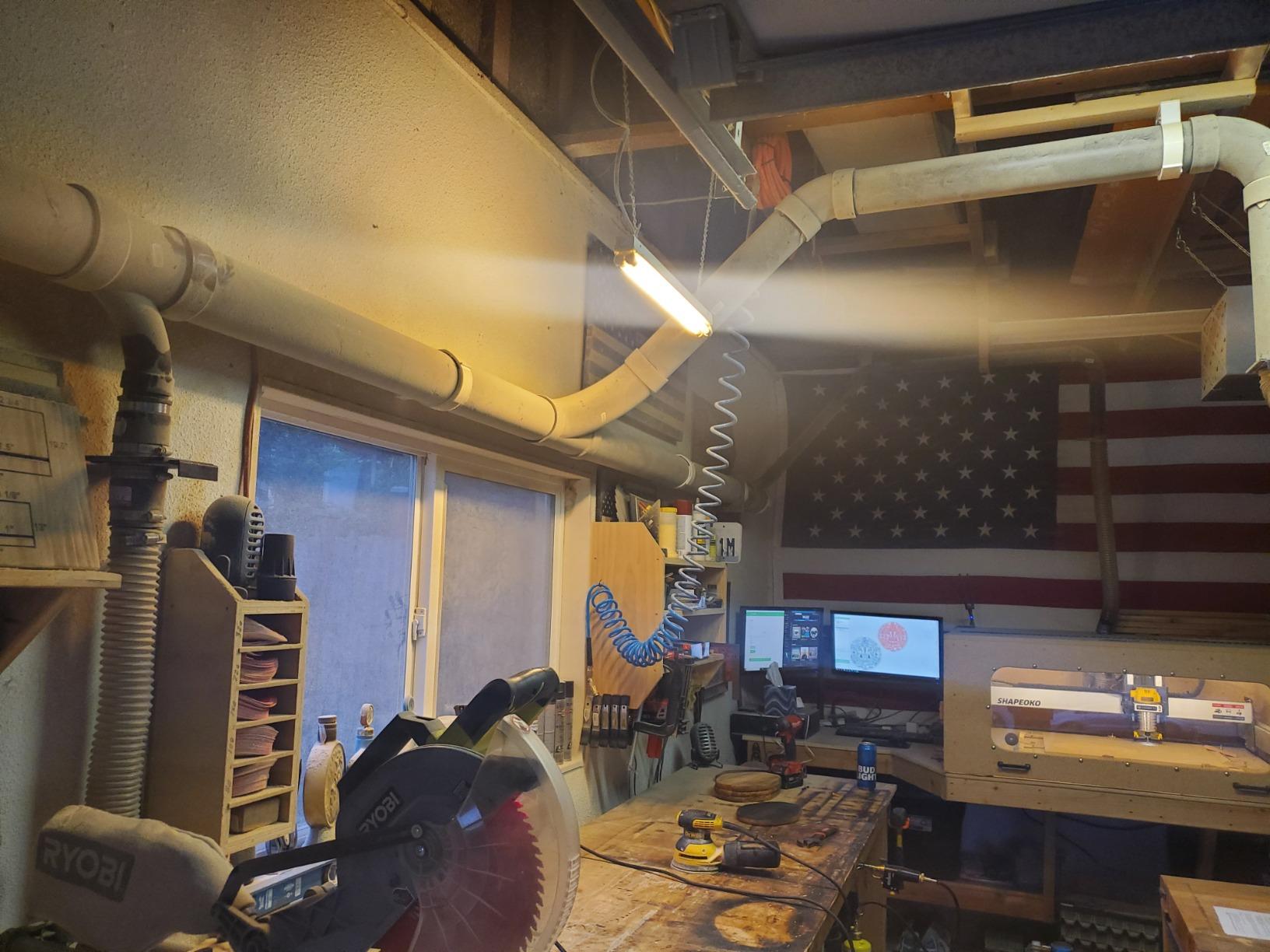

2. Shop Fox W1826 – Best Built Wall Collector for Long-Term Shops
Shop Fox W1826 Wall Dust Collector, 2.5 Micron Filtration,White
1 HP single-phase motor
537 CFM
7.2 in static pressure
85 dB
over 50 lb
Pros
- All-steel construction owners describe as built to last
- Lower-pitched than a shop vac
- Pre-wired 110V with a color-coded 240V conversion diagram
- Bottom zipper empties the bag in place
Cons
- Intake safety cage traps long shavings from planers and jointers
- Suction drops if hose is reduced too early
- Exhaust port diameter is not published
- Thin packaging leads to arrival damage
This is the oldest listing in the group and the one with the deepest owner history at 459 reviews and a 4.3 average. It is also the only one in the group that publishes a static pressure figure, 7.2 inches of water, which is the number that actually tells you whether the unit can push air through ductwork and a canister rather than just through an open hose.
The body is all steel, and owners consistently describe the difference in feel and pitch compared with the plastic and thin-gauge units. Several note it is noticeably quieter and lower-pitched than a shop vac even though the published noise figure is 85 dB, which is the loudest number on this list. We have not found a published decibel figure for the other five, so treat 85 dB as the only measured anchor available and add your own soft-close door if sound carries into a living space.
Wiring is the friendliest of any collector here. It arrives prewired at 110V drawing 7 amps, with a color-coded diagram for converting to 220V at 3.5 amps, so a renter with a basic panel can do the change and everyone else can plug in on day one. The wall bracket uses locking screws rather than a simple hook, which matters when a 50-plus pound machine is hanging at shoulder height over a workbench.
The bag is 2.5 micron felt with the same window and bottom zipper arrangement that makes the POWERTEC convenient. A 1 micron canister variant exists for this model if you run a lot of sanding work, and swapping to it costs you airflow, so check what else you are plugging into the 4 inch port before you make the change.
Two problems owners actually run into
The intake safety cage catches long shavings from a jointer or a three-blade planer and clogs. Owners who run heavy stock sometimes snip it out and accept the risk to keep airflow up. If your planer throws stringy shavings, this is the single most likely complaint you will read about this unit.
Suction drops sharply if you reduce the hose diameter too early in the run. Woodworking forum regulars repeat the same rule on every wall collector they discuss: keep 4 inch hose all the way to the machine. Length matters too, and beyond roughly 6 feet of 4 inch hose on a 1 HP wall unit, users report a noticeable loss of pull. Also note the exhaust port inside diameter is not published and no port insert is included, so measure it before you plan a run outdoors.
Who should buy it
Choose this one if the shop is staying. The steel body and the locking bracket hardware are what you want when the collector will be mounted once and left alone for years, and the 7.2 inch static pressure gives you more headroom than any other unit in this list for a longer hose run or a small drum.
Do not choose it for a garage you might move out of, or if the wall is drywall over metal studs with no solid framing behind it. The weight is the reason it needs a real mounting board.

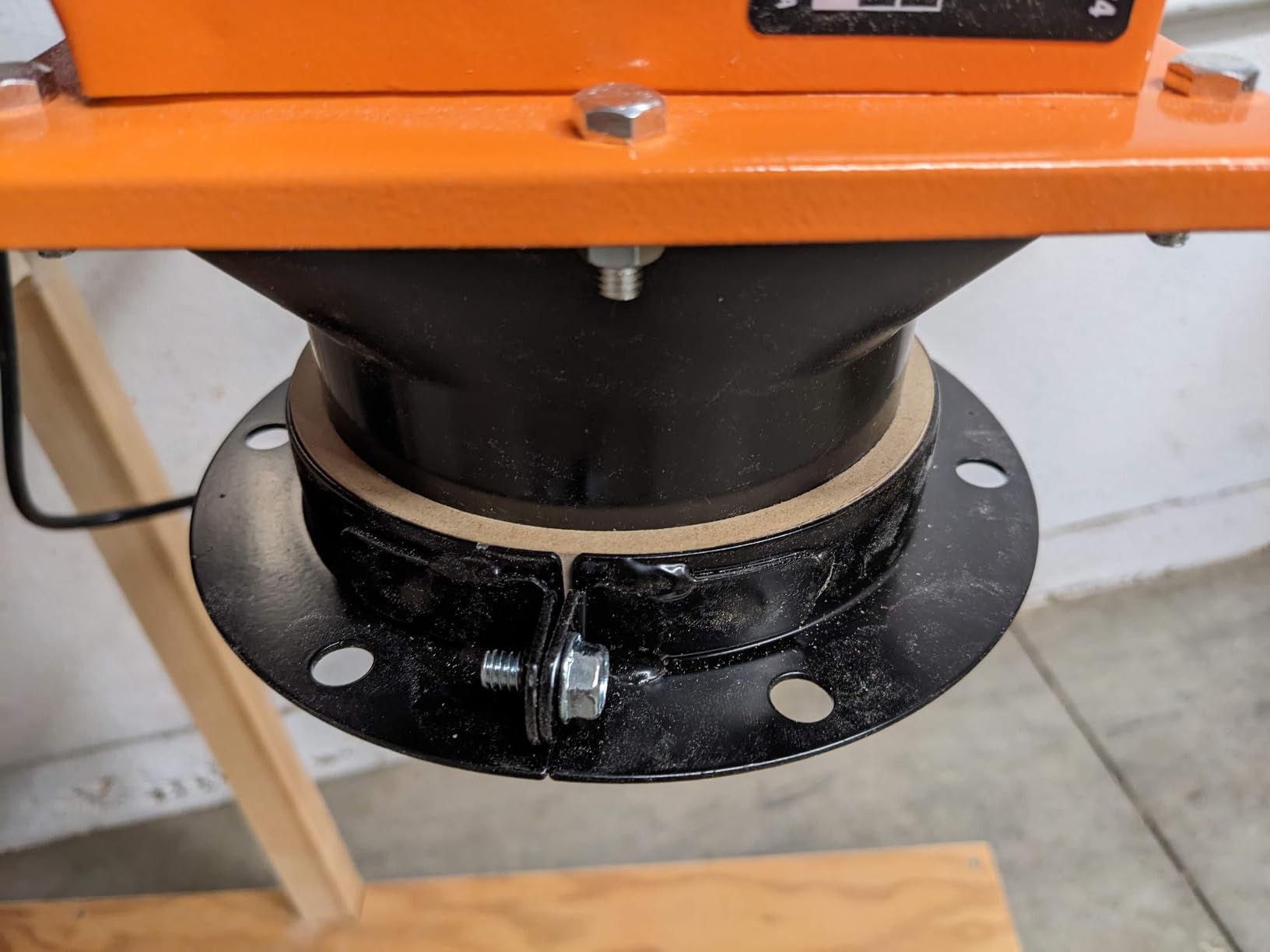

3. WEN DC3474 – Best Wall Mount That Still Rolls
WEN Woodworking Dust Collector, 7.4-Amp Induction Motor with 15-Gallon Bag, Mobile Base, and Optional Wall Mount (DC3474)
7.4 amp induction motor
600 CFM
15-gallon bag
41.1 lb
two-year warranty
Pros
- Induction motor runs quiet and moves far more air than a shop vac

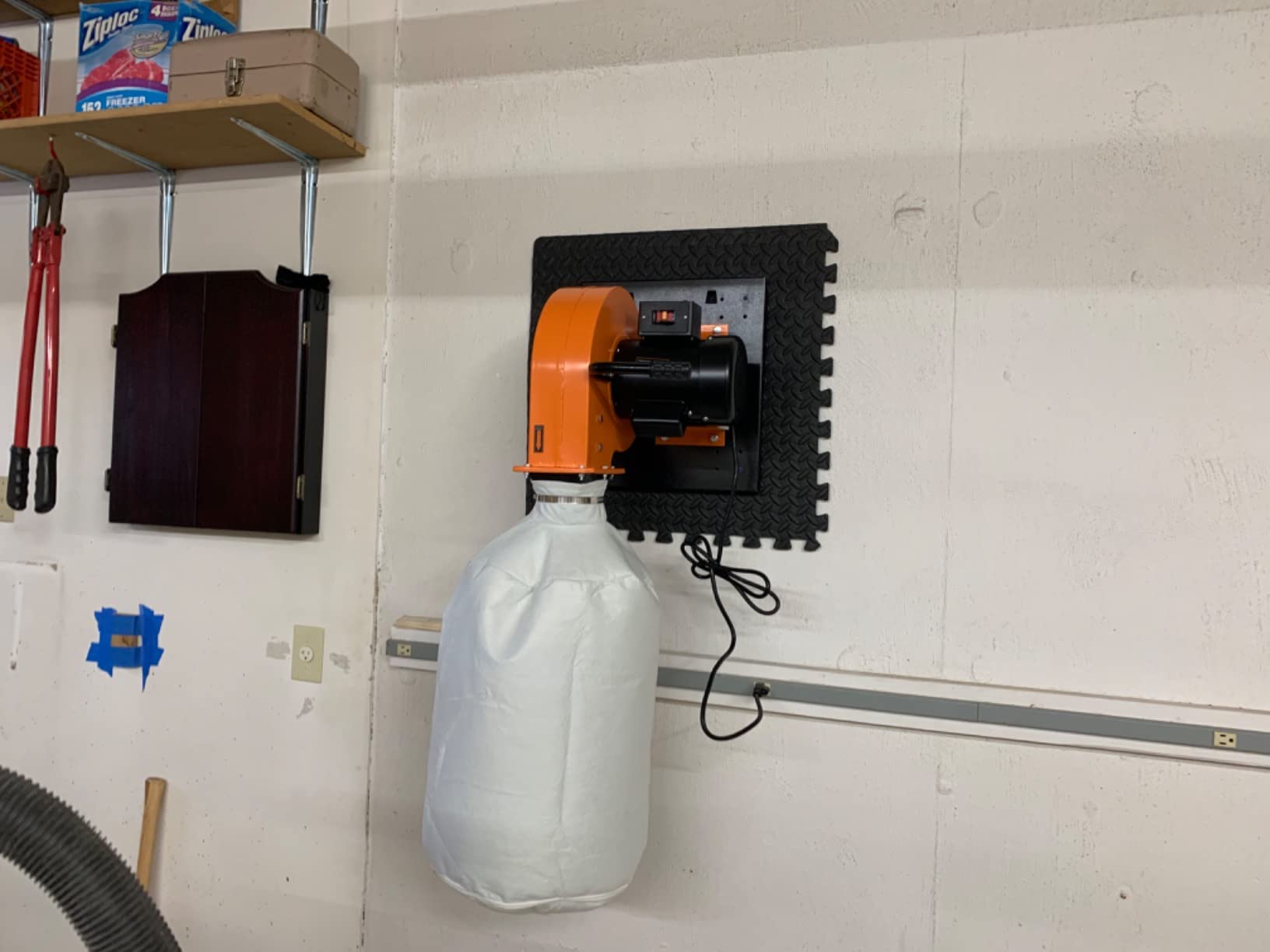

- Hangs on the wall with casters attached so you can still roll it out
- Handles table saws
- jointers
- bandsaws and router tables
- 15 gallon bag means fewer stops
Cons
- Long shavings tangle in the inlet guard
- Supplied 5 micron bag is thin and leaks fine dust
- Swivel casters are not locking
The DC3474 is the compromise pick for anyone who hates giving up mobility. It hangs on the wall like a fixed wall collector, but the casters stay attached, so at 41.1 pounds you can drop it, roll it to the bandsaw, and roll it back. Owners who switched from a rolling unit to a wall-hung unit report the opposite result, that proximity is what makes them use it more, which is why we think this design threads the needle better than a fixed bracket.
The motor is a 7.4 amp induction design driving a 9 inch impeller and moving up to 600 CFM into a 4 inch port. Induction motors run cooler and quieter than the brushed universal motors on budget collectors, and owners single that out as the reason it sounds nothing like the shop vac it replaced.
The 15 gallon zippered bag is the largest of any collector on this list, and in a garage shop that means fewer interruptions. Published capacity numbers across this category are not measured the same way, so compare the volume claim carefully, but a 15 gallon bag against a 12 gallon bag is a real difference when you are milling a stack of dimensional lumber and the bag fills in a way that surprises you.
Owners frequently pair this unit with a drum or cyclone separator downstream, which is the smart move at 5 micron. The supplied bag is thin felt and owners report fine dust escaping around the seams once it loads. Many swap in a heavier aftermarket bag or a canister before committing to long jobs.
The inlet guard is the recurring complaint
Long shavings from a jointer or a three-blade planer tangle in the guard and plug it. This is the same failure mode the Shop Fox and the WEN DC3401 share, and it is the argument for running one machine at a time rather than feeding a planer and a sander into the same 4 inch hose at the same moment.
The casters do not lock, and owners report the unit can roll when switched on. Treat the wall mount as the primary position and the wheels as a convenience, and put a chock or a rubber foot against the wall if the garage floor is sloped. We have also seen a warranty claim on this model take weeks to resolve, so keep your receipt and the serial number somewhere obvious.
Who should buy it
Buy the DC3474 if you work one machine at a time and want the option to move. A 15 gallon bag plus 600 CFM covers a table saw, a jointer, a bandsaw, and a router table in a two-car garage without a full ductwork system.
Pass on it if you plan to hang it once above a fixed station and never touch it again. A fixed bracket with locking hardware, like the Shop Fox, is a better answer for that.

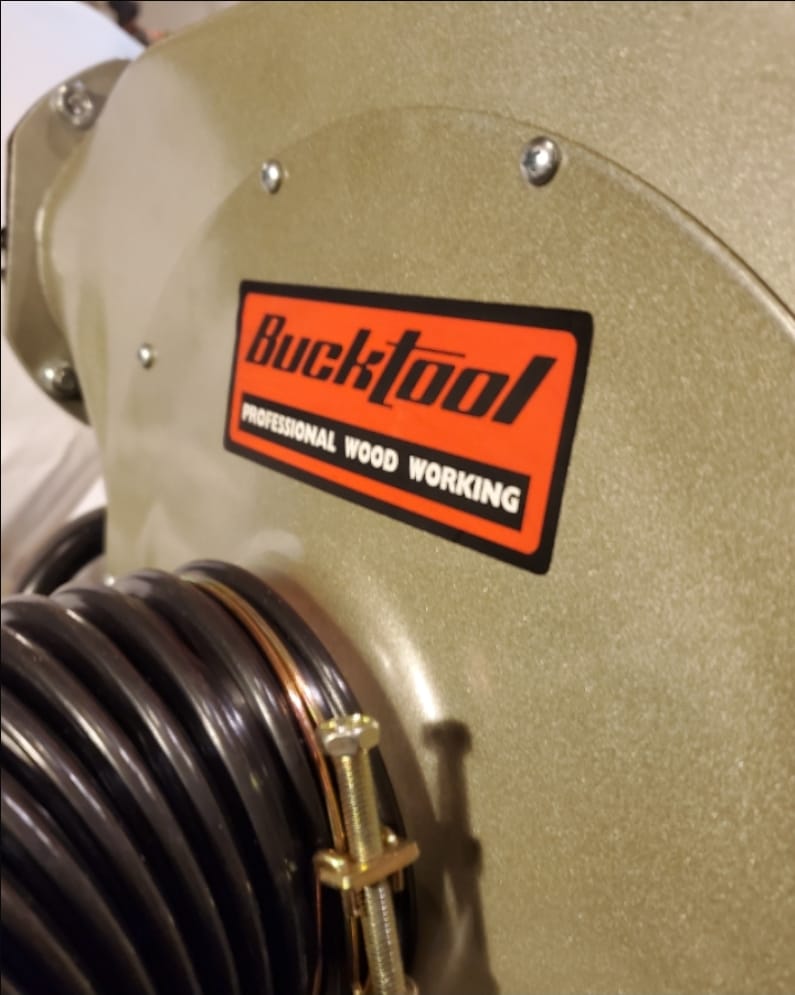

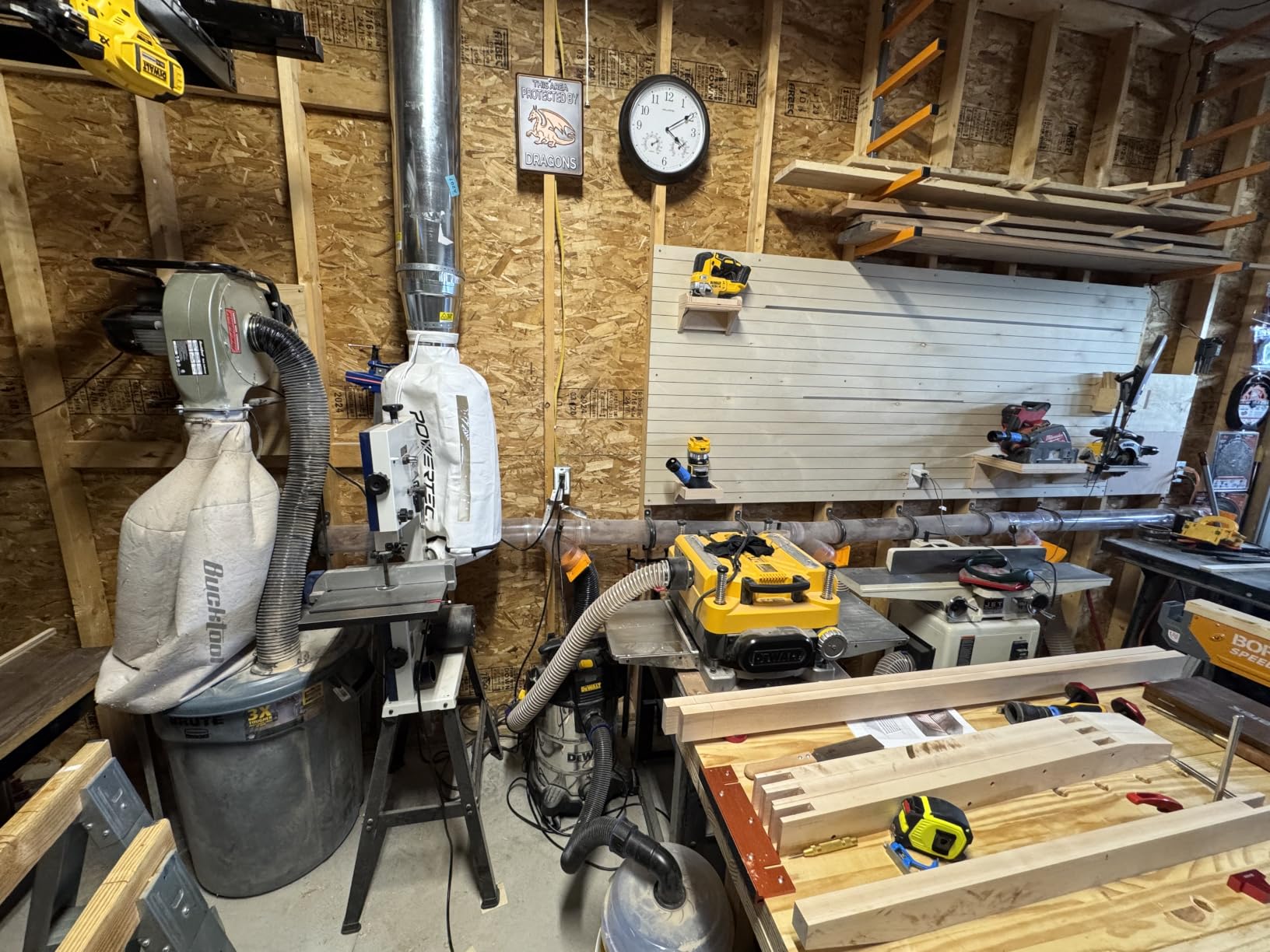

4. Bucktool DC30A-1 – Best Remote-Start Wall Collector
BUCKTOOL 1HP 6.5AMP Wall-mount Dust Collector with Remote Control and 2-micron Dust Filter Bag 550CFM Air Flow DC30A-1
1 HP TEFC motor
550 CFM
49-foot remote
43.1 lb
120V
Pros
- TEFC induction motor is low-noise and brush-free
- 49-foot remote starts it from the machine
- Mounts on the wall and rolls on braked wheels
- 550 CFM from a 1 HP motor
Cons
- Best filtration depends on adding the 2 micron bag separately
- 8 percent of reviews are one-star
- 120V only
The remote control is the reason this unit exists. A 49 foot cord reaches from the wall to a table saw or a jointer, so the collector starts and stops with the machine instead of relying on you walking back to the wall. On a wall-hung collector this matters more than it does on a rolling unit, precisely because the collector is now somewhere behind your car where you cannot reach it.
The motor is a 1 HP TEFC induction design drawing 6.5 amps, driving a steel impeller to 550 CFM. TEFC means totally enclosed and fan cooled, with no brushes to wear or replace, which is a meaningful difference over the brushed motors used on the cheapest collectors in this category. At 120V and 6.5 amps it shares a 15 amp circuit with a table saw without much headroom, so check what else is on that circuit.
Installation is listed as wall-mounted and on wheel, and the wheels are braked casters, which is better than the unbraked swivel casters on the WEN models. At 43.1 pounds the unit is heavy enough that you will want a second person or a solid mounting board, but the remote means you never have to physically reach the machine to cycle it.
The filtration story is the weak point. The manufacturer recommends pairing it with the matching 2 micron filter bag, which is a separate purchase. Out of 160 reviews, 8 percent are one-star, the highest share in this group, and a meaningful slice of that traces back to owners who bought the machine expecting a filtration upgrade and got a stock bag instead.
Remote control versus manual switching
A remote is a real convenience but it is not a safety device, and it is not a substitute for a blast gate if you ever run more than one machine into this unit. If your plan is a central system with a Y junction and blast gates, a remote start on a single hose does nothing for you.
It is also 120V only, so a shop already wired for 240V will see less suction at the machine than a comparable 240V unit. Owners using it on a jointer-planer report it handles those machines, but they are running the jointer on one pass at a time.
Who should buy it
Pick the DC30A-1 if you are building a one-machine station where the wall is far from the tool and you refuse to get up mid-cut. The brushed-motor-free design and the braked wheels make it a solid second machine for a shop already running something else.
Buy the 2 micron bag at the same time. Out of the box this is the least filtered unit in the group for sanding work, and pairing it with a drum downstream is cheaper than replacing the bag later.

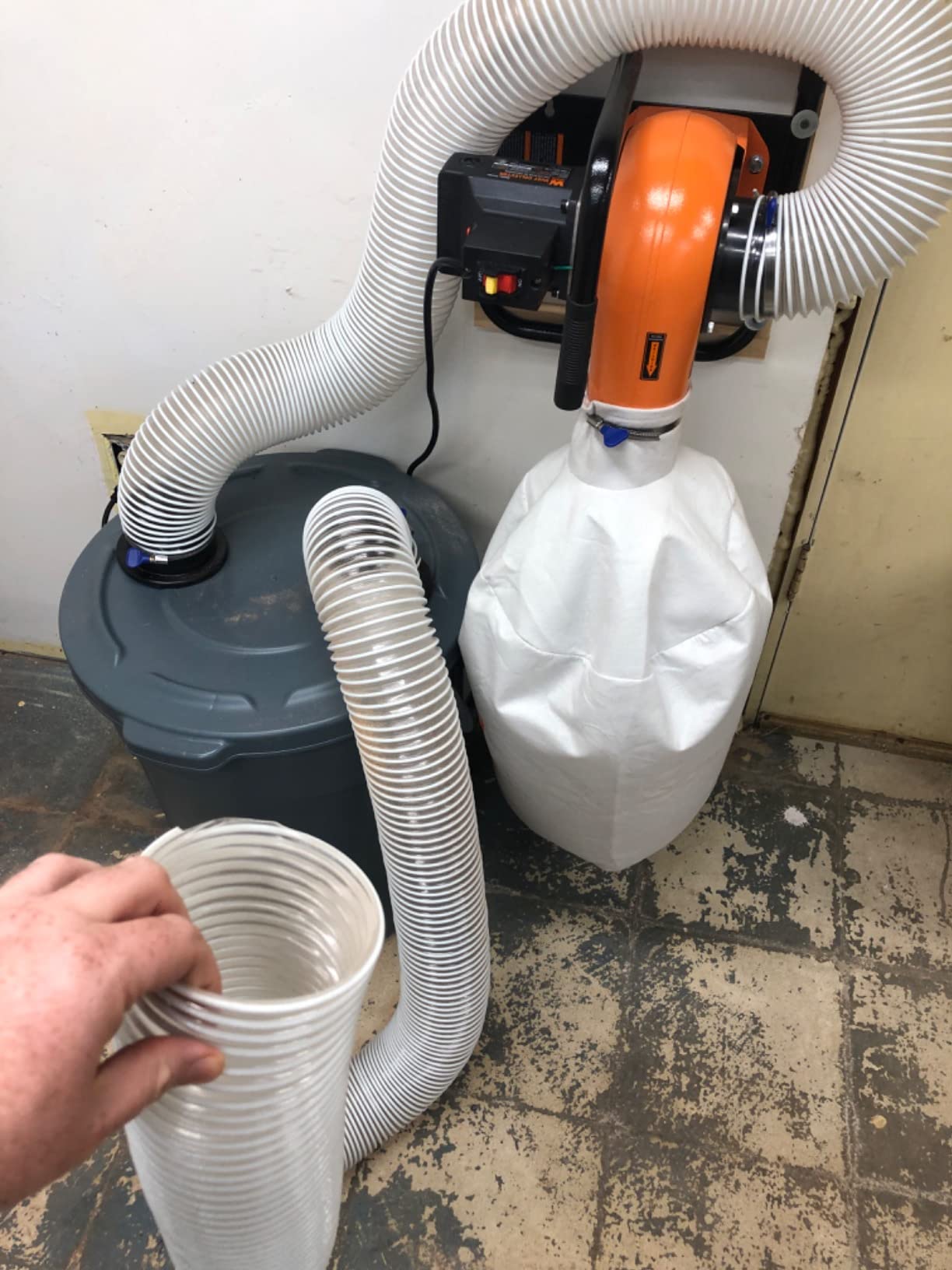

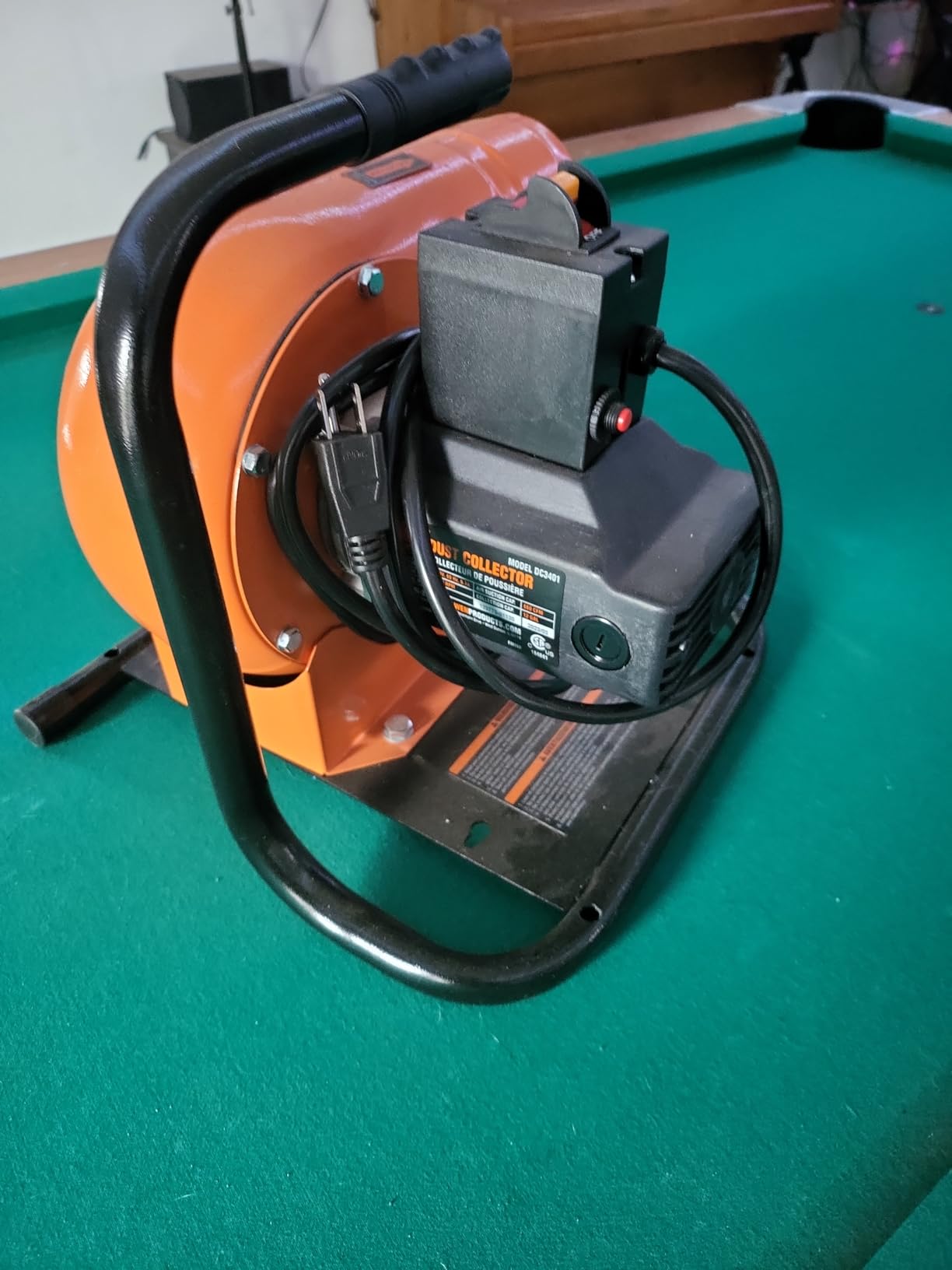

5. WEN DC3401 – Best Budget Wall Collector That Fits in a Closet
WEN Woodworking Dust Collector, 5.7-Amp Motor with 12-Gallon Bag, Mobile Base, and Optional Wall Mount (DC3401)
5.7 amp brushed motor
660 CFM
12-gallon bag
17 lb
110V only
Pros
- Most reviews of any collector in this group at 676
- Compact 34.25 x 13 x 14.2 inch body at 17 pounds
- 660 CFM on a 110V circuit
- Lockable swivel casters plus optional wall mount
Cons
- Brushed motor needs service around 250 hours
- Inlet screen clogs quickly on shavings
- Underpowered for some thickness planer setups
- Audible outside the shop
At 17 pounds and 34.25 by 13 by 14.2 inches, the DC3401 is the only unit here you can realistically tuck into a closet, a corner behind a workbench, or a shallow wall cavity, then hang and forget. The 676 reviews make it the most examined listing in the group, and the 4.1 average reflects a machine that does one job well and has an obvious expiry date on its motor.
It moves up to 660 CFM, which is the highest published figure in this roundup, on a 5.7 amp brushed motor with a 6 inch impeller. Against a shop vac on a table saw, a router table, or a bandsaw, owners report a step change in how much debris actually gets pulled into the hose. The 4 inch port takes the same hose everything else here does.
The brushed motor is the honest weakness. Carbon bushings need service at roughly 250 hours, which for a serious hobbyist is sooner than it sounds. The 660 CFM number is also a bare motor rating with no static pressure figure published, so it tells you about throughput and nothing about how the unit behaves behind a filter and a length of hose.
Owners mount it on the wall, roll it around on the lockable swivel casters, or pair it with a low-cost cyclone and drum to add separation. All three approaches show up repeatedly in owner photos, and the cyclone pairing is the usual fix for a thin 5 micron bag that lets fine dust back into the room.
Where it will disappoint you
The inlet screen clogs fast on machines producing shavings, and many owners remove it entirely. Do not expect this unit to handle a thickness planer in every setup, and do not run two machines into it at once. Those are the two complaints that show up most often in the reviews.
It is also 110V only and audible outside the shop for some owners, which is a problem in a garage attached to a house. There is no published decibel figure, so if noise is your deciding factor, this is the unit to test before you commit rather than the unit to trust on paper.
Who should buy it
This is the right pick for a hobby garage where the budget is small and the machines are a table saw and a router table. 660 CFM at 17 pounds in a body you can wall-hung out of the way is hard to argue with, and the two-year warranty is a real one from a company that publishes it.
Upgrade out of it once you start planing thicker stock or sanding regularly. Treat this as the first machine in the shop rather than the last.
6. Rockler Dust Right 650 CFM – Best 1 Micron Canister Filter
Dust Right 650 CFM Wall Mount Dust Collector 1 Micron – Canister Filter for Portable Dust Collection System – Remote Control Small Dust Collector Shop – Includes Mounting Bracket & Plastic Dust Bag
650 CFM wall mount
1 micron pleated canister
Remote control included
Bracket and bag included
17 x 15.25 x 17 in
Pros
- Pleated canister captures dust down to 1 micron
- Claimed up to 30 times the filtration of the stock bag
- Remote control for hands-free starting
- Mounting bracket and dust bag in the box
Cons
- Only 34 reviews
- the thinnest feedback base here
- Plastic 12-gallon-class bag rather than a large collector bag
- Weight is not listed by the manufacturer
The Dust Right 650 is the one in this group that filters the way a HEPA unit filters. The pleated canister captures dust down to 1 micron, and the manufacturer states an increase in filtration of up to 30 times the stock bag. If your garage is attached to a living space or someone in the house has asthma, that number is the entire reason to choose this unit.
At 650 CFM in a wall mount configuration with a 17 by 15.25 by 17 inch canister body, it is compact and it ships with a remote control for hands-free switching, plus a mounting bracket and a plastic dust bag in the box. That bundle matters, because a canister this size is often sold separately from the collector and you can end up hunting for hardware on mounting day.
We are going to be direct about the evidence here. This listing has 34 reviews, the thinnest feedback base of the six by a wide margin, and the manufacturer does not publish a weight or a static pressure figure. The rating distribution is tight at 4.2 with no two-star reviews, but tight distributions on small samples tell you less than a 676-review spread does.
What a canister costs you in airflow
A 1 micron pleated canister has far more surface area than a bag but also far more resistance once it loads. Owners of fine-filter canisters across this category report a visible drop in suction after a few sanding sessions, and the fix is the same as for any canister: a crank cleaner on the outside, used every few sessions rather than once a year.
The plastic dust bag is 12-gallon class, which is smaller than the 15 gallon bag on the WEN DC3474 and smaller than the collector bags these units replace. Plan on more frequent emptying, and put the canister on a drum rather than hanging the full assembly if bag swaps are getting annoying.
Who should buy it
Buy the Dust Right 650 if fine filtration is the priority and you are willing to maintain the canister. Owners running a drum downstream get the best of both, since the canister handles the dust and the drum handles the volume.
Hold off if you need a long verified track record before you spend. With 34 reviews this is the pick we would test first and keep second, and we would pair it with a drum before trusting it on a long sanding session.
Why a Wall-Mounted Collector Beats a Rolling One in a Garage
Floor space is the whole argument, and it is a bigger deal in a garage than in a dedicated shop. A rolling 1 HP collector with a drum under it occupies roughly a 22 inch square, which is the difference between parking the car inside and closing the door over it. In a one-car garage, hanging the collector on the wall is frequently the only way to have both the machine and the vehicle in the same bay.
There is a second benefit that owners mention more than the floor space. When the collector is behind the car, you stop using it. Owners who moved from a rolling unit to a wall-hung unit report the shop is visibly cleaner not because the new machine is more powerful but because it gets turned on. Proximity beats capacity in a garage shop every time.
That is also the argument for a unit you can still roll, like the WEN DC3474 or the Bucktool. A wall mount does not have to be permanent, and the models that keep their casters give you a way to reach the bandsaw without a second hose run. The same floor-space arithmetic is what drives people toward wall mounted jewelry organizers for screws, bits, and small hardware, since a bench-level grid uses the vertical space a floor unit would waste.
How to Mount a Wall-Mounted Dust Collector in Your Garage
Most of these machines weigh between 17 and 51 pounds, and the manufacturer weight is the number that should drive your mounting plan, not the bracket that came in the box. A bracket screws into framing, and drywall and metal studs are not framing.
Find the framing first. A stud finder or a 3 inch test screw tells you in seconds whether you have wood studs, and where. If you have masonry, use masonry anchors rated well above the unit weight rather than trying to drive screws into block.

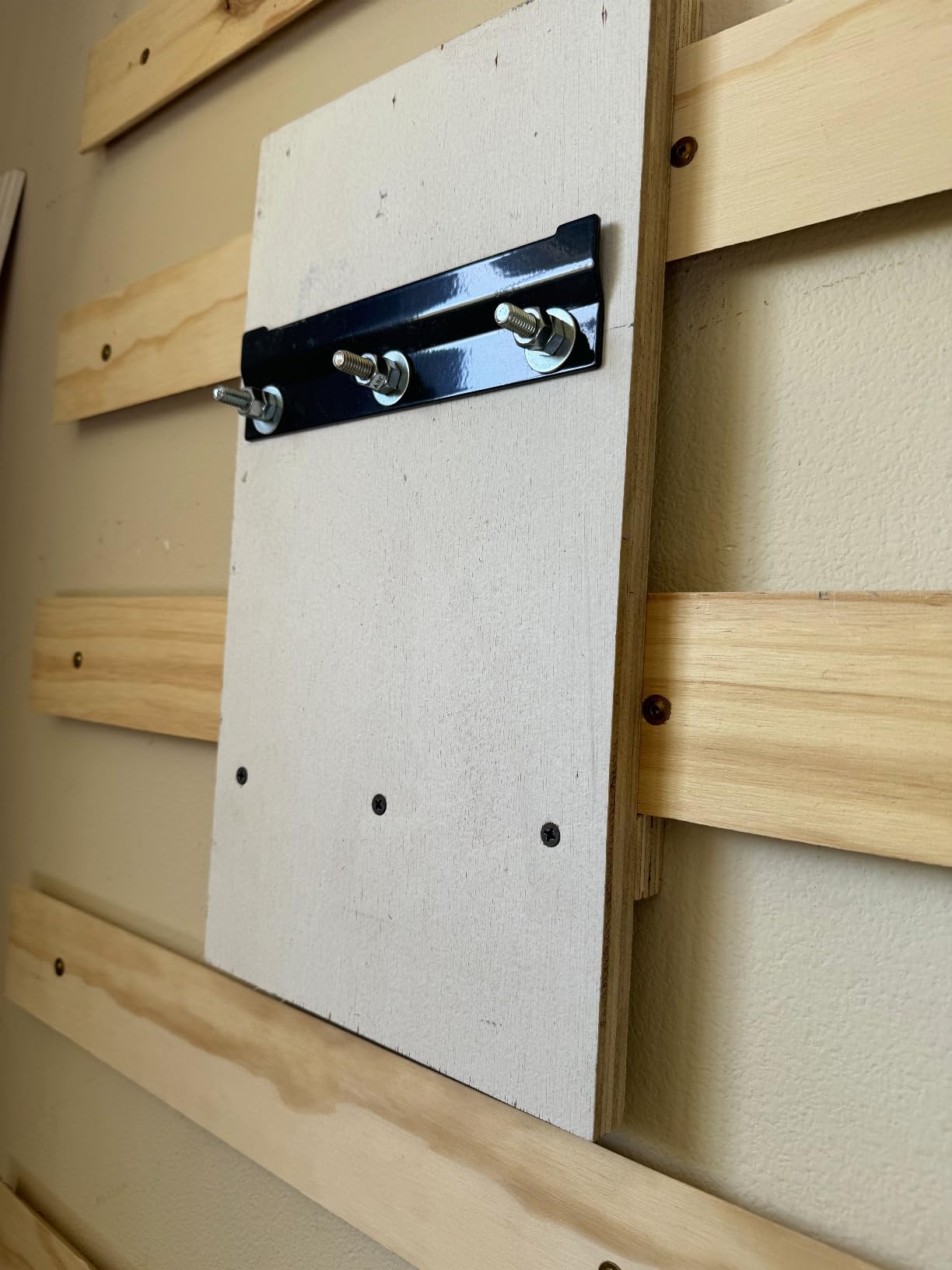

Install a mounting board across two studs rather than into one. A 2×4 or a piece of plywood screwed into two studs spreads the load and gives the bracket a flat surface, which matters on an uneven block wall. If you want the load spread further, the same principle applies as when you hang heavy wall mounted shelving units: more anchors, spread further apart, lower on the wall.
Hang the unit so the bag sits at waist height, not shoulder height. You will be lifting a full bag over a bin, and a waist-height bag means a lift rather than a shoulder hoist. Leave clearance below for the bag to swing and for you to roll the unit out if it has casters. Above the bag, that same freed vertical space is where a wall mounted coat rack keeps shop coats out of the dust stream.
Route the hose last, and keep it short. Workshop practice across every forum thread on this topic converges on roughly 6 feet of 4 inch hose as the point where 1 HP wall units stop feeling strong. Measure the distance to your machine before you commit to a location, because moving the collector six inches can mean three feet of hose.
Sizing CFM and Horsepower for Garage Shop Machines
CFM is the number that matters, and the single most common mistake is comparing a bare motor rating to what you get through a filter and a hose. Manufacturers rate the blower motor on an open port with no filter attached. Every foot of hose, every elbow, and a loaded filter takes a cut out of it.
The rule of thumb most shops use is 400 CFM per inch of hose diameter, so a 4 inch hose wants at least 400 CFM at the machine and ideally more. Every unit in this roundup clears that number on paper, which is why the practical differences show up in static pressure and filter type rather than in the headline figure.
For a table saw or a bandsaw, any of the six will do the job. A jointer-planer and a thickness planer are where the units separate, and 537 to 600 CFM with a 4 inch hose is the workable range. Run one at a time on the larger ones. If you plan to run two machines into one collector, you need a Y junction and a blast gate, and metal blast gates are the ones that stay open when the suction pulls.
Static pressure is the number to look at when you have anything other than a short open hose. The Shop Fox W1826 is the only unit here that publishes one at 7.2 inches of water, and that is the honest reason it tolerates a longer run or a small drum better than the others.
Micron Ratings, Bag Capacity, and Cost of Ownership
Micron ratings are not a quality ladder, they are a tradeoff. A 30 micron bag stops chips and coarse dust. A 5 micron felt bag stops fine dust and costs almost nothing. A 2.5 micron bag is the sweet spot for most garage shops. A 1 micron canister or bag captures the fraction of dust that stays airborne longest, and it restricts airflow the most as it loads.
Two of the units here ship with 1 micron filtration, the POWERTEC and the Rockler, and both rely on a bag or canister that has to be cleaned on a schedule rather than swapped. The 2.5 micron and 5 micron bags are consumables, and a spare is a five-minute purchase compared with a canister cleaning session.
Cost of ownership comes down to three numbers: the replacement bag or canister cost, how often you replace it, and how much electricity it draws. The 120V units here pull 5.7 to 12 amps depending on the model, the 240V capable units pull 6 amps on the high side, and no published figure in this group includes a watt-hour measurement, so we are not going to invent one.
Bag capacity matters more than most buyers expect. Workshop reports on this category consistently describe wall-hung bags filling faster than people plan for, especially on jointer and planer work. The 15 gallon bag on the WEN DC3474 is the largest here and the one to pick if volume is your pain point.
Noise, Vibration, and 120V vs 240V in a Garage Shop
Two published noise figures exist in this group: 80 dB for the POWERTEC DC5371 and 85 dB for the Shop Fox W1826. No decibel figure is published for the WEN models, the Bucktool, or the Rockler, and owners describe the brushed-motor WEN DC3401 as audible outside the shop. Treat the two published numbers as the only measured anchors you have.
Induction and TEFC motors, which cover five of these six units, run cooler and quieter than the brushed universal motor on the DC3401. That is the single cheapest noise improvement available to you, and it is baked into the purchase rather than added later.
For an attached garage, four things help. Put rubber isolation pads or a plywood isolation box between the bracket and the studs so vibration stops traveling into the framing. Run flexible duct rather than rigid so the motor is not rigidly coupled to the wall. Keep the bag from touching the wall, since a full bag pressed against drywall radiates sound. And use a soft-close or insulated garage door if the motor runs while the door is open.
On voltage, the rule is straightforward. A 120V circuit is a 15 amp circuit, and a table saw plus a 1 HP collector plus a planer on the same outlet will trip it. The 240V capable units here draw about half the current for the same motor, which is the honest reason to rewire if you already own a 240V capable table saw. If you rent, do not run an extension cord for a collector, and stay on 120V with a unit rated for it.
What About Drywall, Concrete, and Metal Dust?
Most garage shops are not wood-only, and this is where a lot of roundups go quiet. A wall mounted dust collector built for wood dust handles fine particles from drywall sanding and skim coating reasonably well, provided the filter is fine enough. The 1 micron bag on the POWERTEC and the canister on the Rockler both handle that better than a 5 micron felt bag does.
Concrete and masonry dust is abrasive, and it will wear a felt bag and any cardboard filter element far faster than wood dust does. High-volume grinder and demolition work is better served by a HEPA-rated shop vac with a hose diameter matched to the tool. Do not route a concrete grinder into a wall collector and expect the filter to survive.
Metal dust and sparks are a different category entirely. None of these units is a spark arrestor, and none is rated for combustible metal dust. If you grind steel or aluminum regularly, keep that work on a dedicated vacuum rated for it.
One more material note that applies to all six: an inlet guard or screen will clog on anything stringy, whether it is planer shavings or drywall tape strips. Clearing it monthly is part of owning any of these machines.
How We Picked These Six Collectors
We started with every wall-hung collector sold on the main marketplace and cut the list hard. Anything without a real owner feedback base came out, which is why you will not see a Grizzly, Rikon, or Oneida wall unit here. Those machines exist and some of them are better engineered than everything on this page, but their feedback lives on their own sites, and we will not recommend a product to you on the basis of a spec sheet alone.
What survived had to be genuinely wall-mountable, published enough for us to compare airflow, filtration, weight, and power, and carry enough reviews that patterns in the complaints meant something. That is why the list is six and not ten.
Every rating and review count quoted in this article is copied from the listing, and every specification comes from the manufacturer’s published data. Where a figure is not published, such as a decibel rating or a static pressure number, we say so rather than estimating it.
Frequently Asked Questions
What is the best wall-mounted dust collection device?
For most garage shops the POWERTEC DC5371 is the best wall mounted dust collector. Its 1 HP induction motor moves 560 CFM, the reusable 1 micron bag has a dust-level window and a bottom zipper for emptying in place, and the 35.5 pound body is easy to lift onto a bracket alone. The Shop Fox W1826 is the alternative for heavier all-steel construction and a published 7.2 inch static pressure rating.
How much CFM do I need for a table saw?
Plan on at least 400 CFM for a 4 inch hose, since that is the common sizing rule for wood dust collection. All six collectors in this roundup publish 537 to 660 CFM, so any of them covers a table saw, bandsaw, or router table comfortably. Remember the rating is for the bare motor with no filter attached, so loaded filters and long hose runs cut into it.
Do I need 120V or 240V for a dust collector?
It depends on your circuit and your other machines. The POWERTEC DC5371 runs on 120V at 12 amps or 240V at 6 amps, and the Shop Fox W1826 arrives prewired at 110V with a conversion diagram. A 1 HP collector plus a table saw plus a planer on one 15 amp 120V circuit will trip the breaker, so a 240V capable shop is the better place for a 1 HP unit.
How can I reduce the noise coming from my dust collector?
Four fixes do most of the work. Put rubber isolation pads or a plywood isolation box between the bracket and the studs so vibration stops traveling through the framing. Run flexible duct instead of rigid so the motor is not rigidly coupled to the wall. Keep the collection bag from touching the wall, since a full bag pressed against drywall radiates sound. Induction and TEFC motors are also quieter than brushed motors.
Can you mount a dust collector on a garage wall?
Yes, but screw into framing or use masonry anchors rated above the unit weight. These collectors weigh between 17 and 51 pounds, and drywall alone or metal studs will not hold one. Mount a 2×4 or plywood board across two studs rather than hanging the bracket on a single stud, and position the bag at waist height so you can lift it out over a bin.
Will a wall mounted dust collector work for drywall dust?
For drywall sanding and skim coating, yes, provided the filter is fine enough to hold the particles. The POWERTEC DC5371 with its 1 micron bag and the Rockler Dust Right 650 with its 1 micron pleated canister both handle drywall dust better than the 5 micron felt bags. Concrete and masonry dust is different, since it is abrasive and destroys felt bags and filter elements far faster than wood dust.
How often do I need to empty a wall mount dust collector bag?
Far more often than most first-time buyers expect, especially on jointer and planer work where bags fill faster than planned. The window on the POWERTEC and Shop Fox bags and the zippered 12 and 15 gallon bags on the WEN models are the tools for judging it. A 1 micron canister also needs outside cleaning with a crank brush every few sessions, because loaded fine filters strangle airflow.
The Best Wall-Mounted Dust Collector for Your Garage Shop
The POWERTEC DC5371 is the best wall mounted dust collector for a typical garage shop, and the reason is not a single spec. It is the highest-rated unit in the group at 4.4 across 433 reviews, it weighs 35.5 pounds so one person can mount it, it runs on either 120V or 240V, and its 1 micron bag empties in place through a zipper with a window to tell you when.
Buy the Shop Fox W1826 instead if the shop is permanent and you want steel construction plus the only published static pressure figure in the group. Buy the WEN DC3474 if you want the largest bag and the option to still roll the machine to a second station. Buy the WEN DC3401 if the budget is the deciding factor and 660 CFM at 17 pounds is what fits your wall. Buy the Rockler Dust Right 650 if fine filtration matters more than a deep feedback base, and buy the Bucktool DC30A-1 if a remote start from the machine is worth more to you than a bag included in the box.
Whatever you pick, hang it on a board screwed into two studs, keep the hose under about 6 feet at full 4 inch diameter, clear the inlet guard monthly, and beat the filter out before the airflow drops. Those four habits matter more to how clean your garage stays than the difference between any two collectors on this list.
